Slide Preview for Topic 10 - Fields

Below are the previews for the slide in Topic 10 - Fields. If you click on them, you can see larger versions. If you are on a computer you can press the left and right arrows to move. You can also click the arrows to the left and right of the screen.

Powerpoint Description:

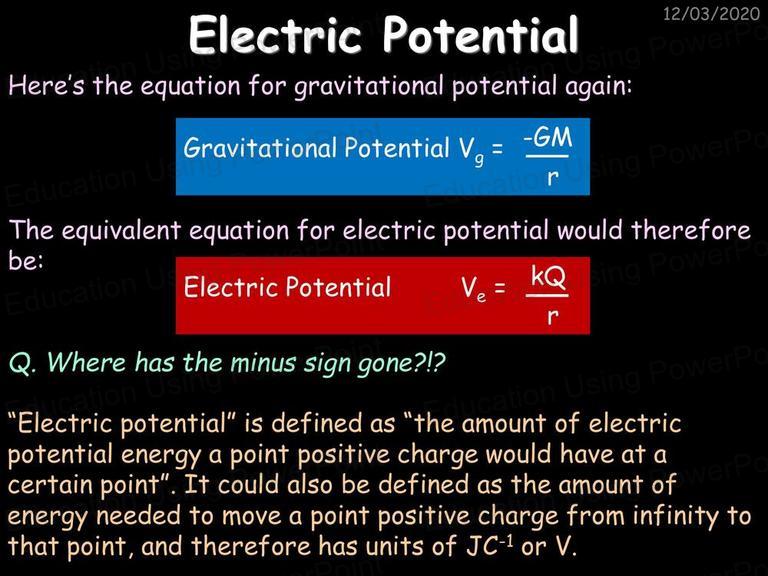

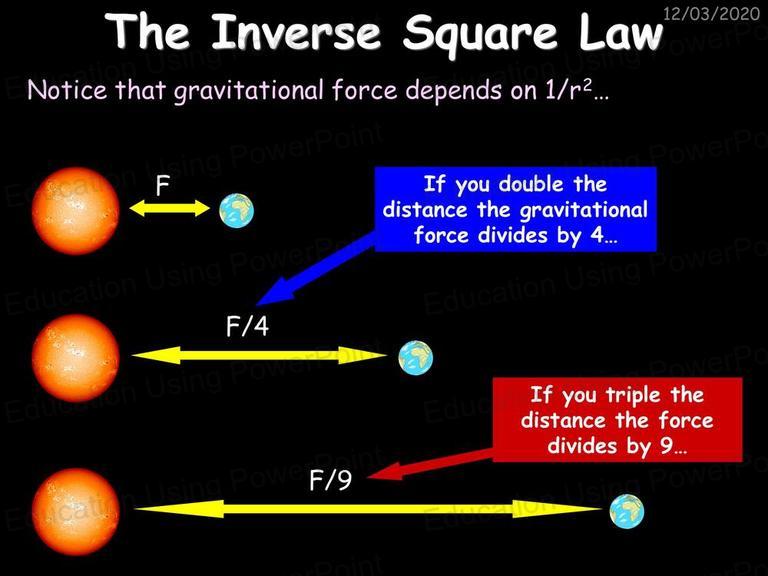

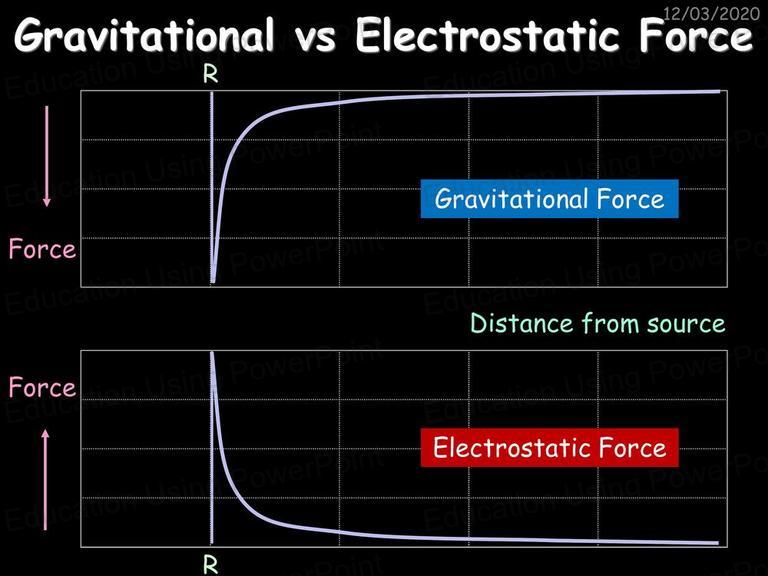

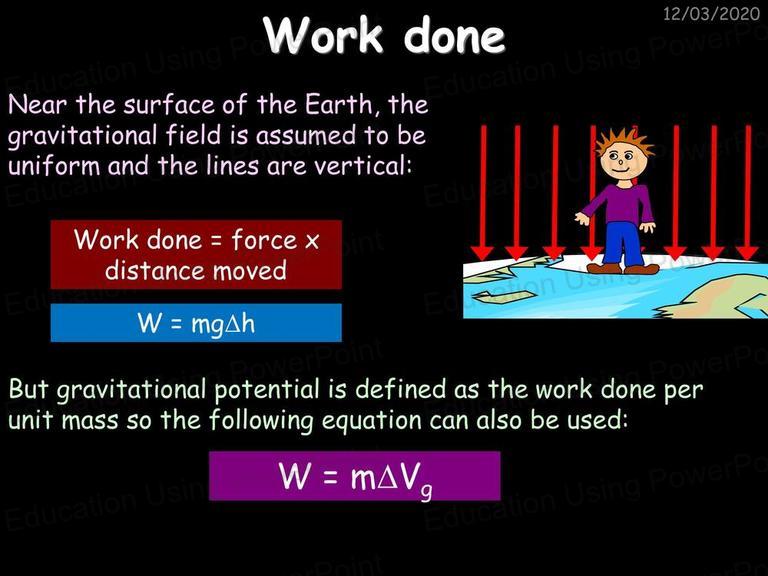

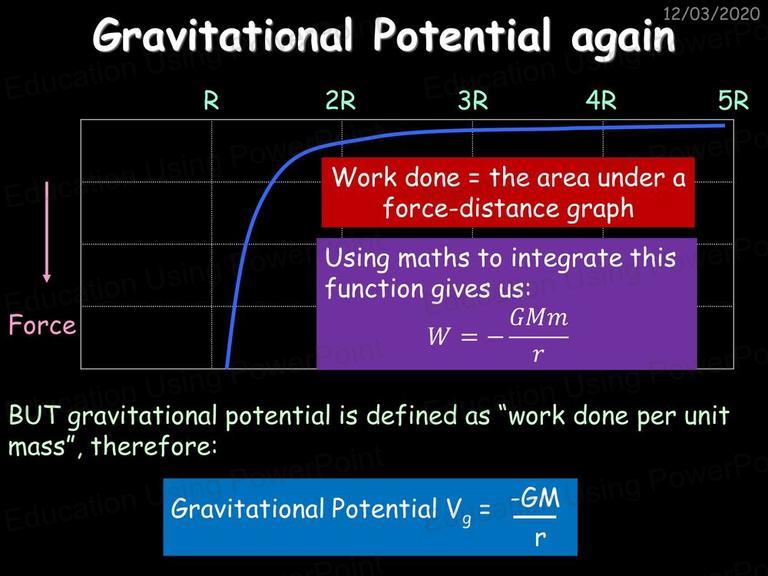

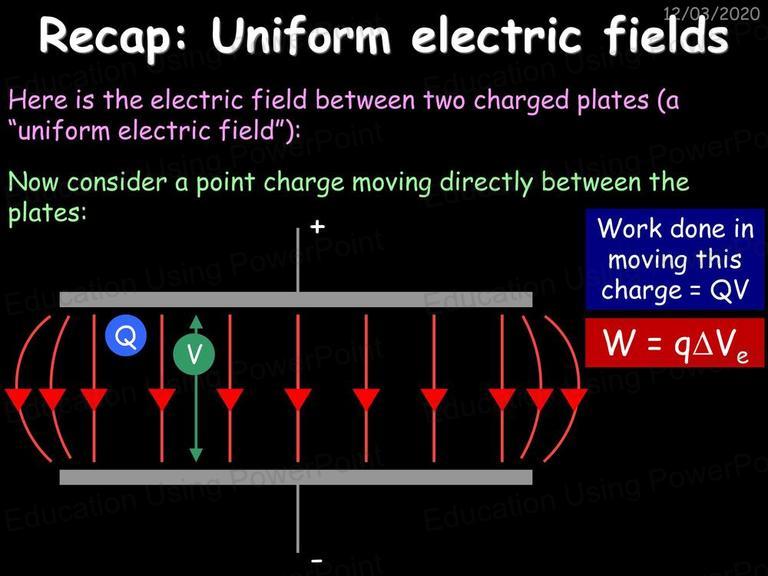

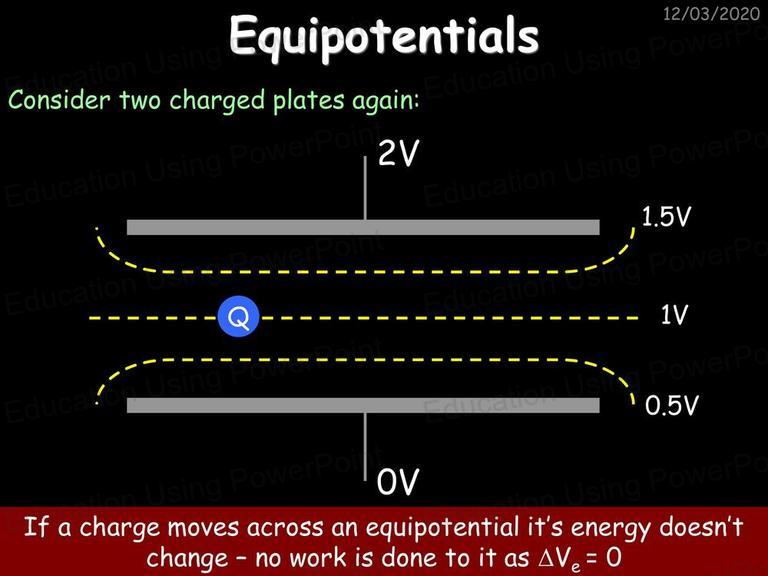

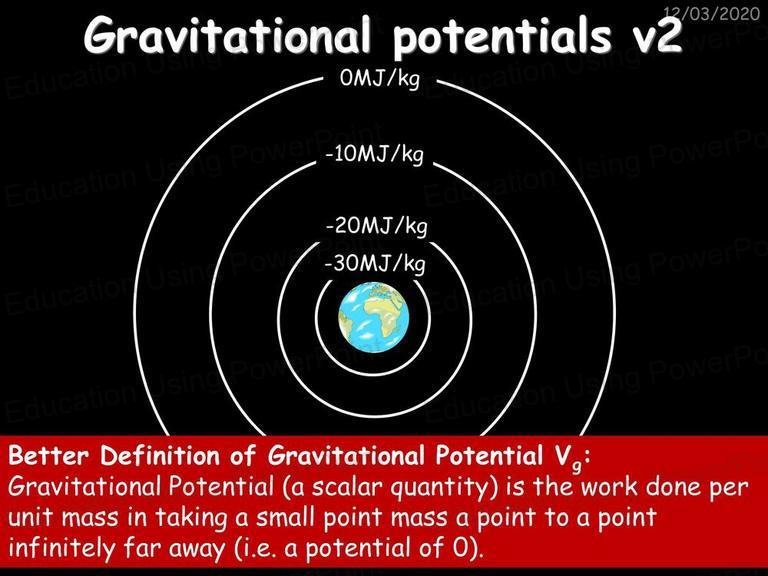

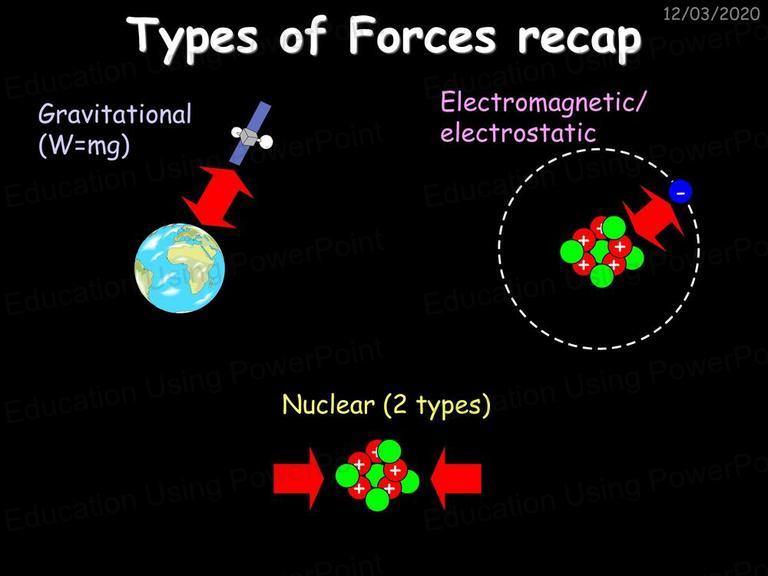

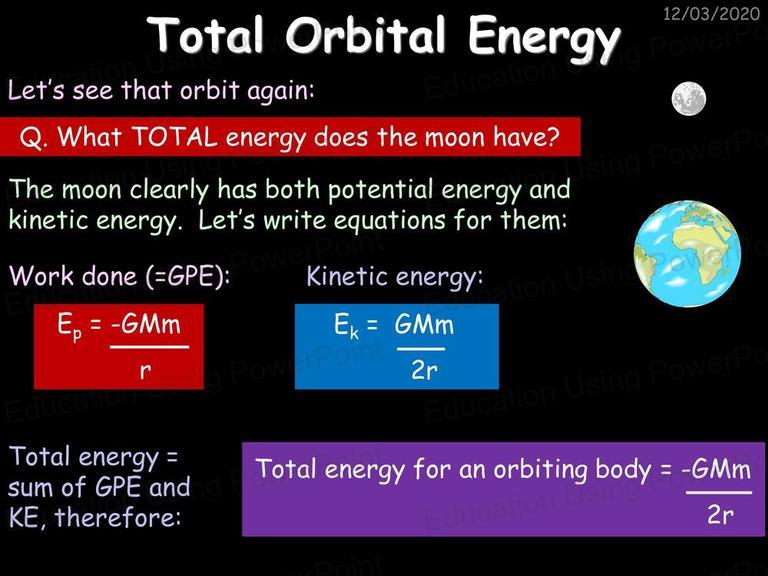

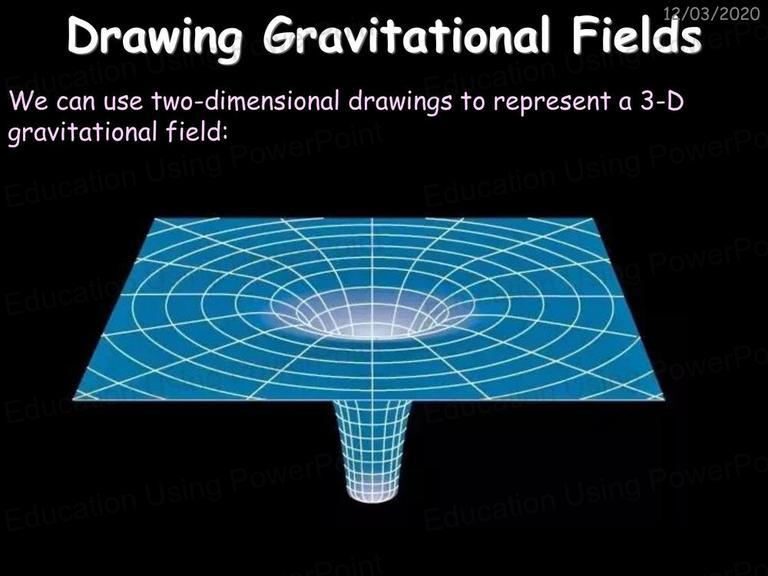

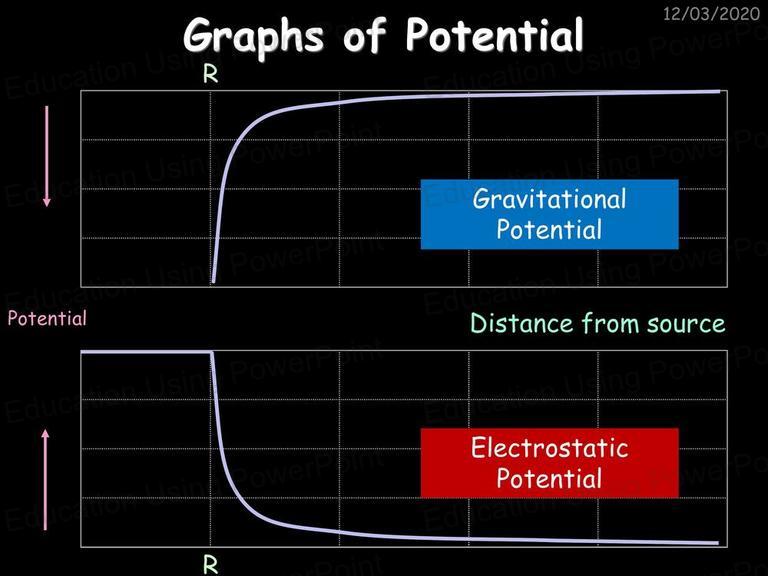

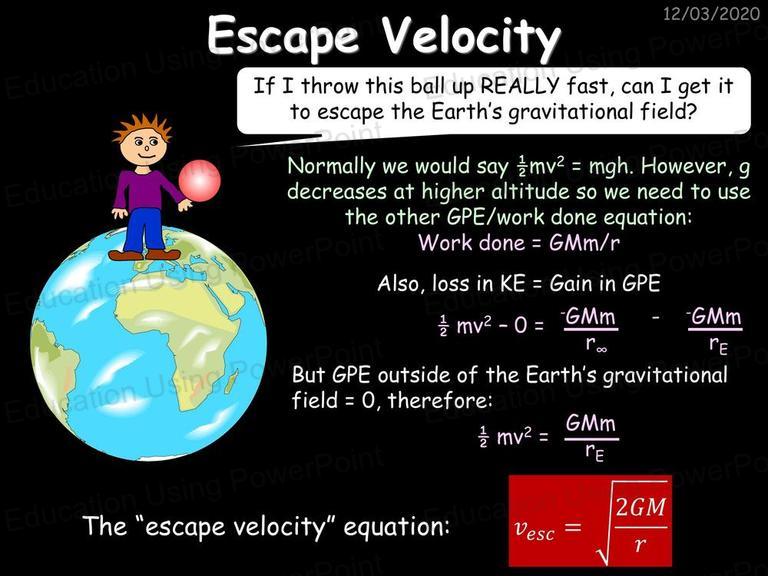

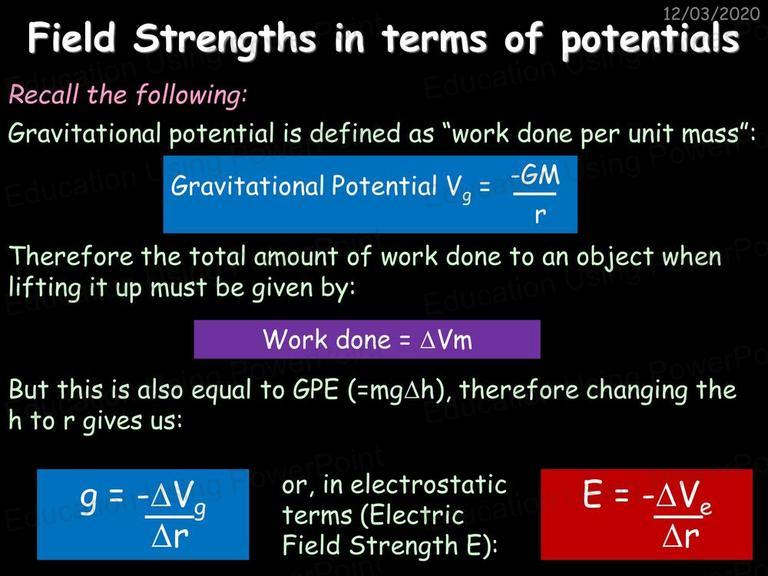

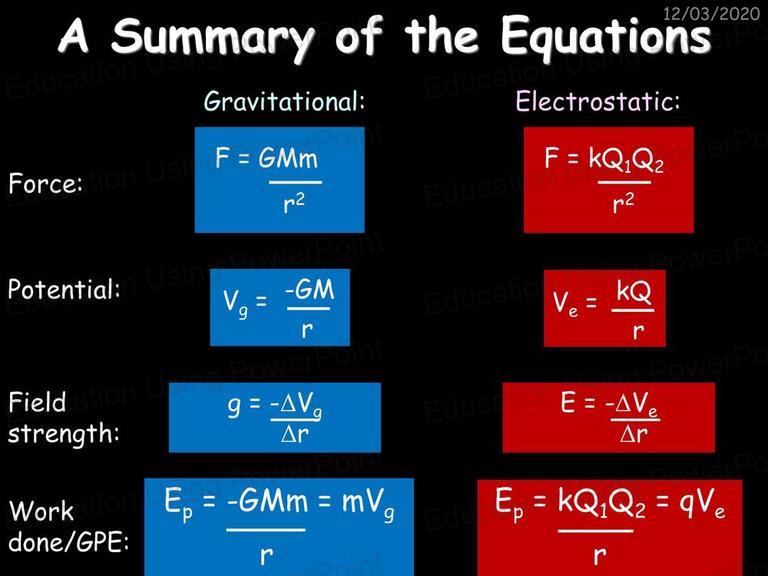

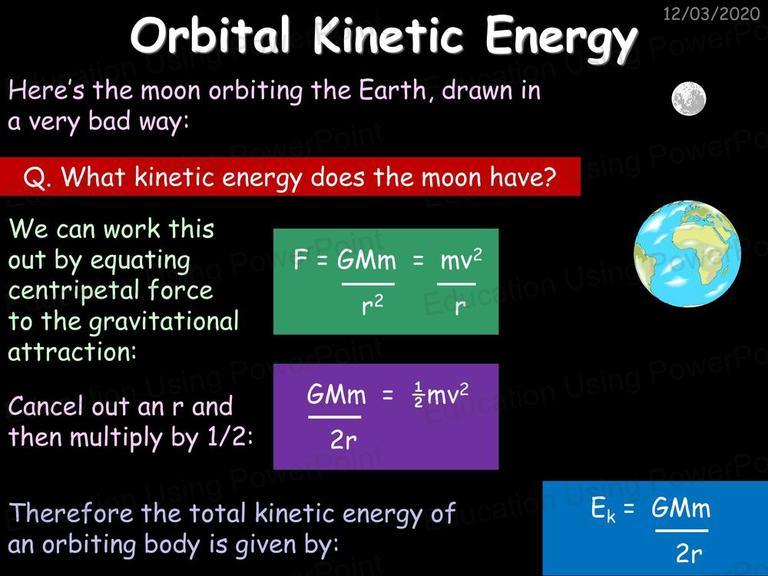

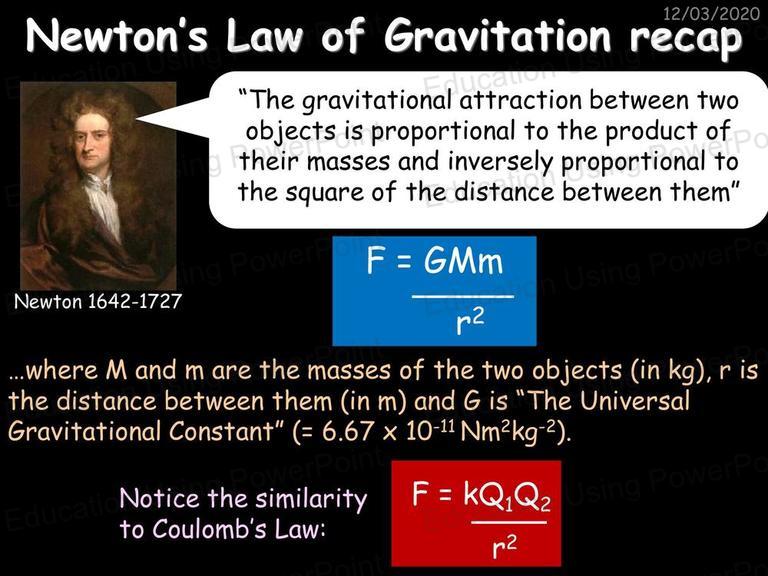

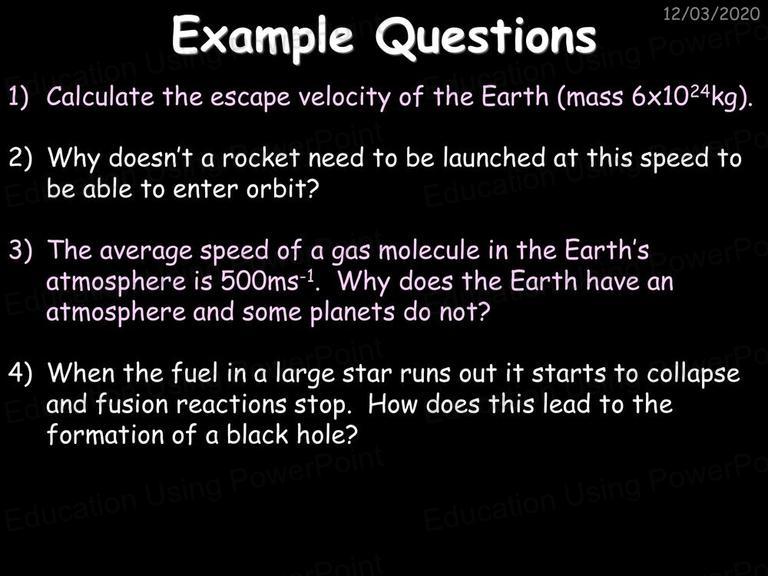

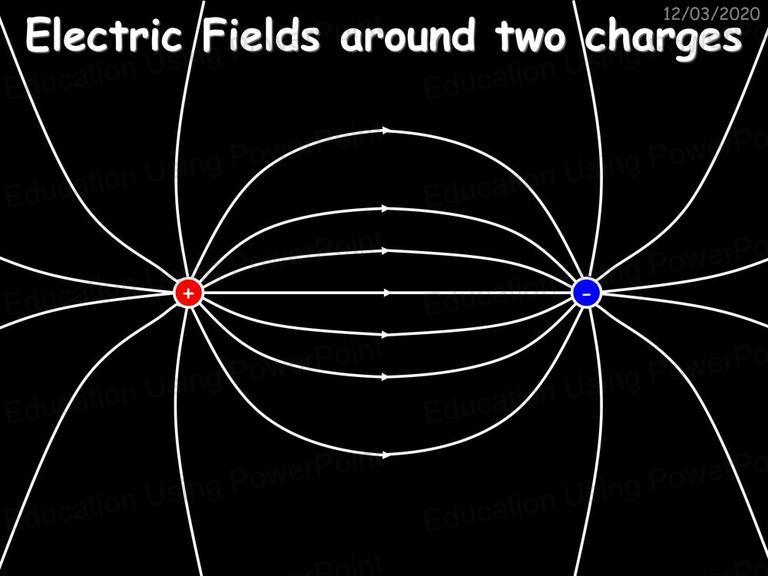

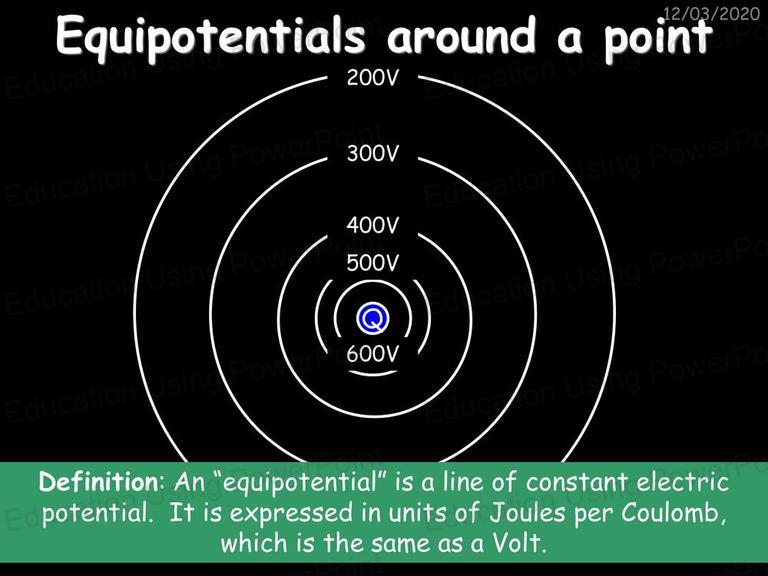

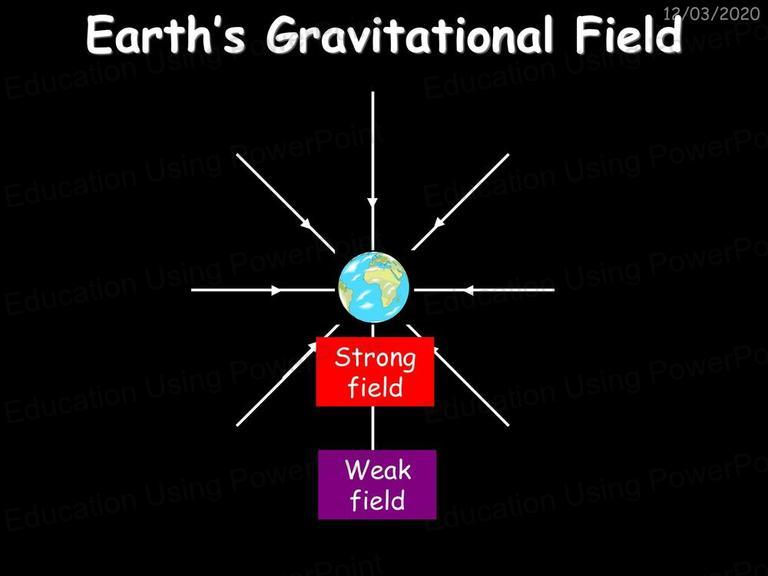

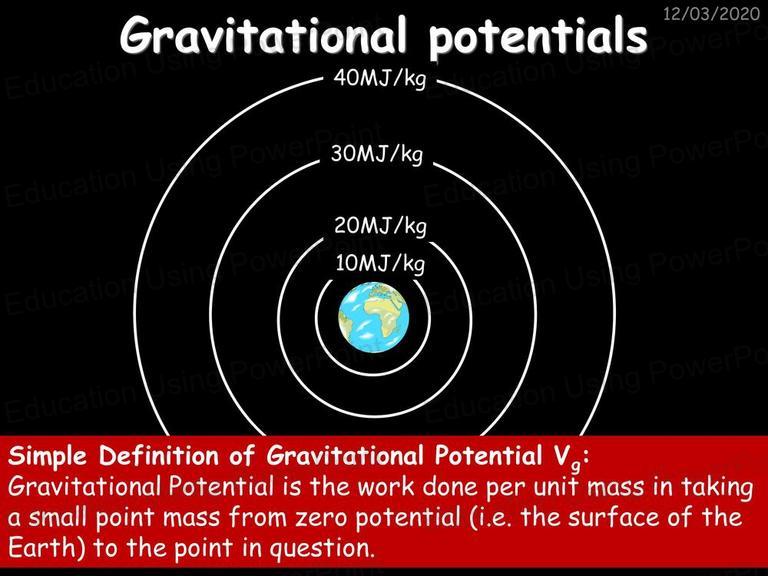

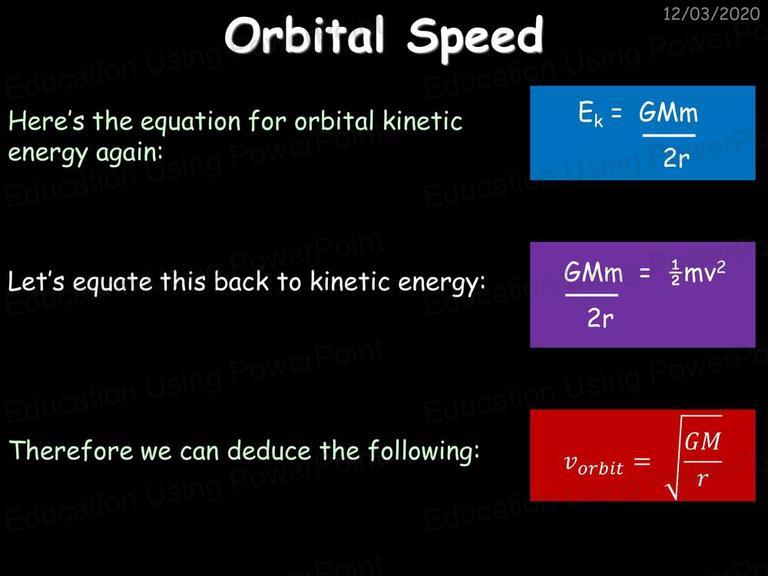

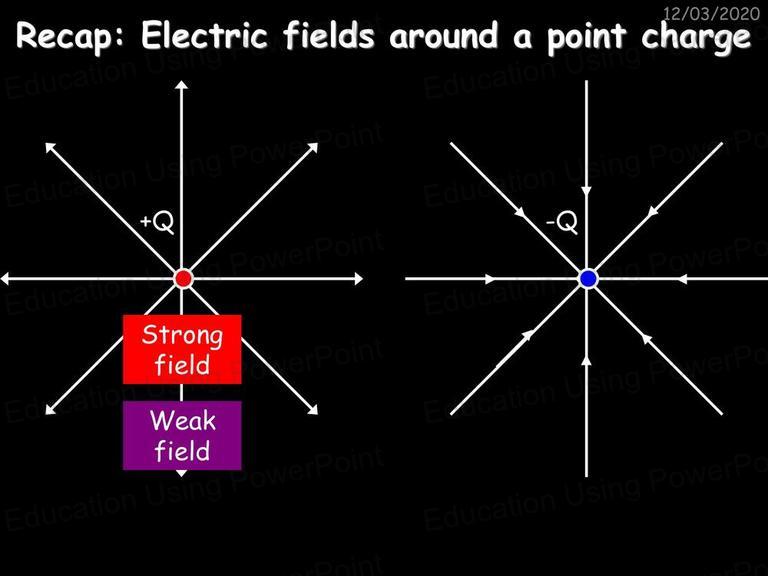

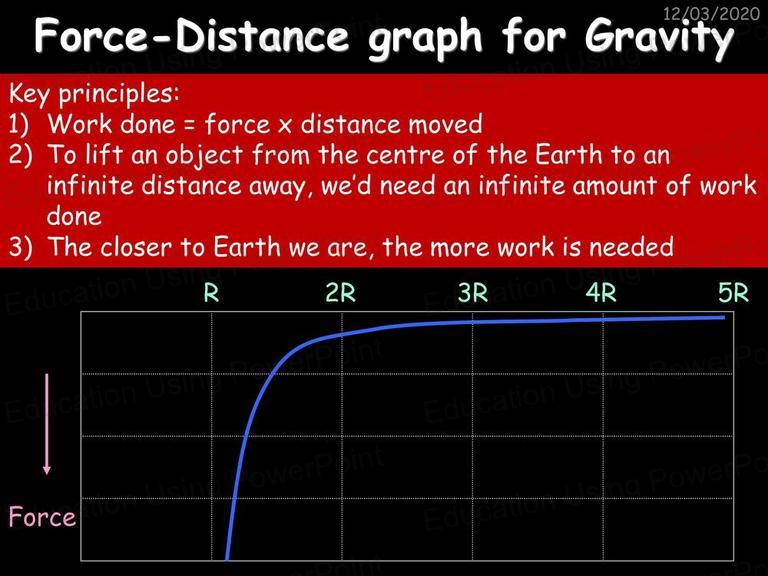

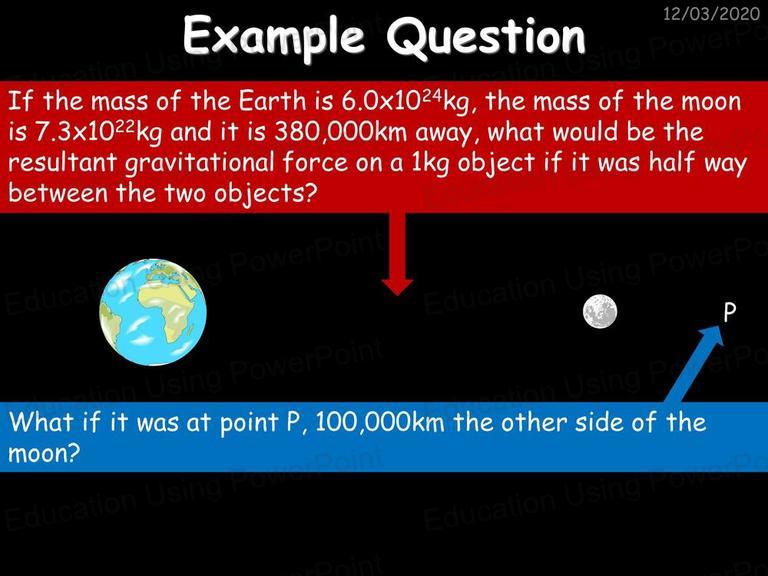

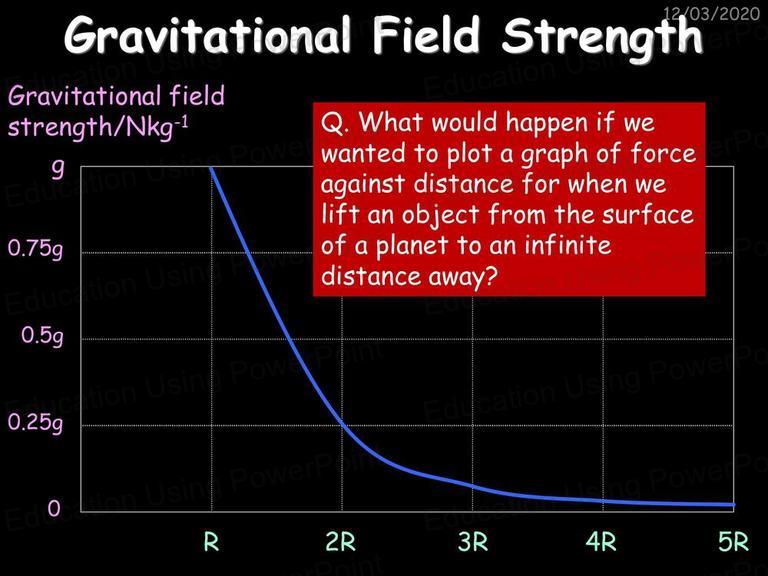

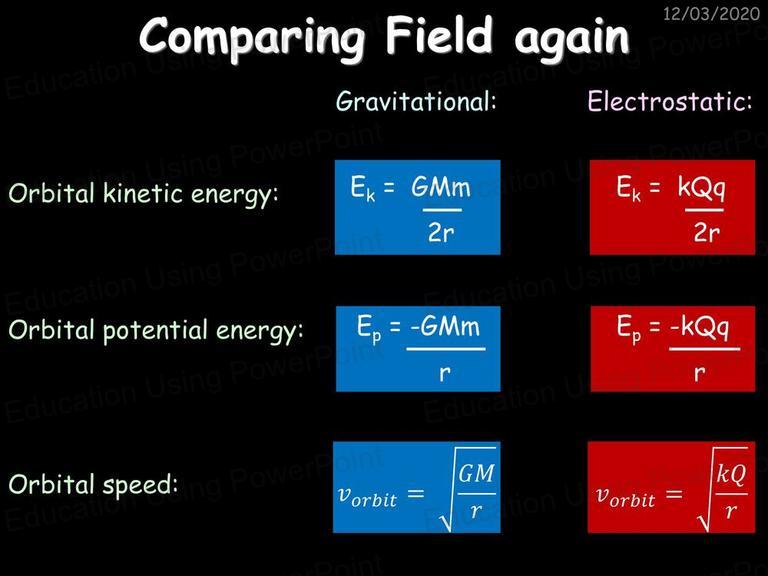

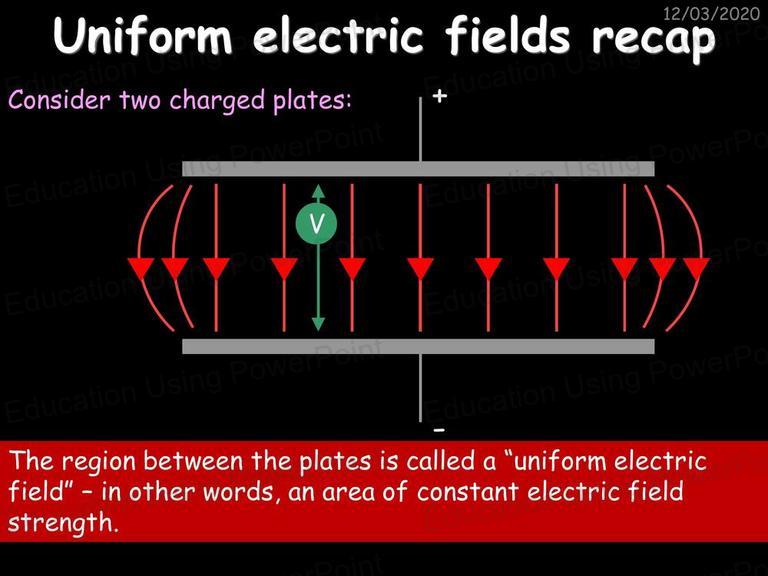

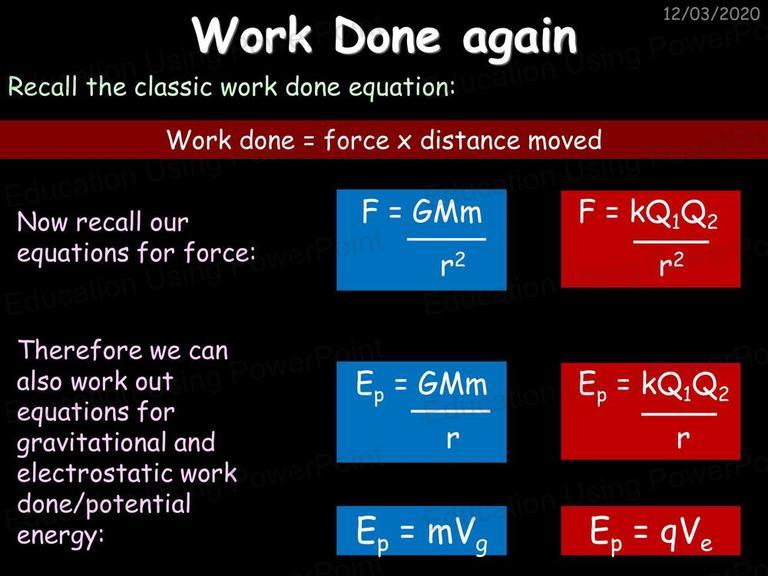

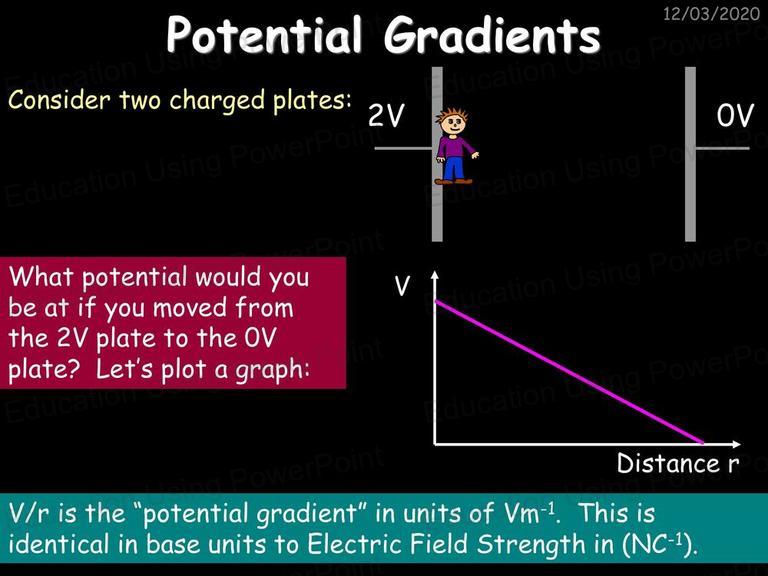

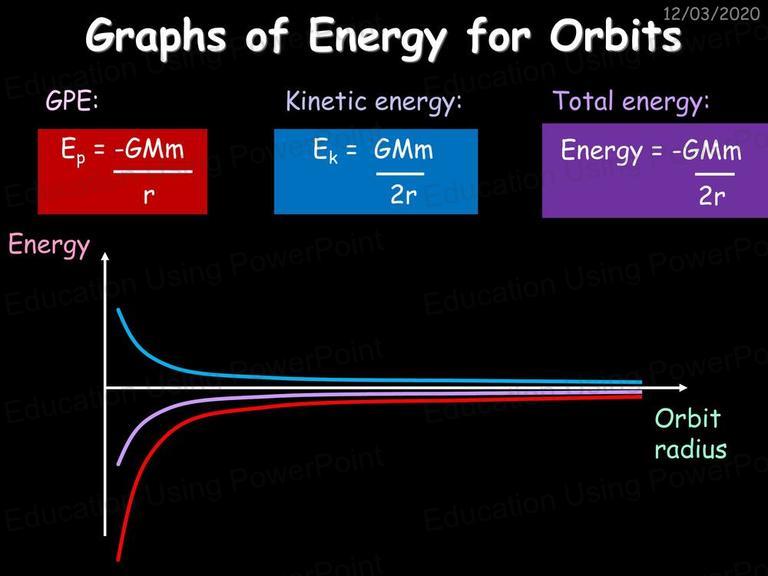

This PowerPoint covers: a recap of the different types of force, electric fields around point charges, uniform electric fields between parallel plates, equipotentials between charged plates and around a charged point, gravitational equipotentials, work done, gravitational field strength, inverse square laws concerning electric and gravitational fields, graphs of gravitational and electrostatic field strengths as a function of distance, electric potential, field strength in terms of potential, potential gradients, drawing fields, escape velocity, orbital kinetic energy, orbital speed, total orbital energy.

Click here to register and to download this PowerPoint file

PowerPoint Slide Previews

Please note: The PowerPoints do NOT have any watermarks on them. This is for preview purposes only.
