Slide Preview for Topic 3 - Electricity

Below are the previews for the slide in Topic 3 - Electricity. If you click on them, you can see larger versions. If you are on a computer you can press the left and right arrows to move. You can also click the arrows to the left and right of the screen.

Powerpoint Description:

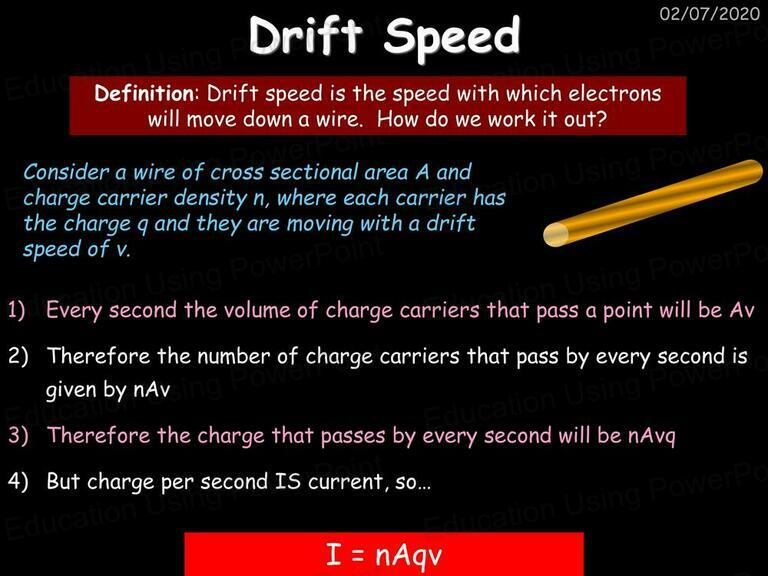

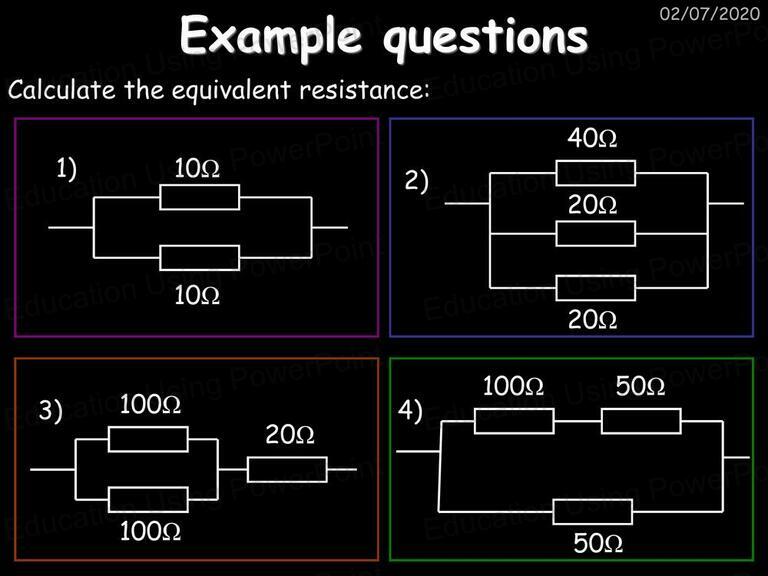

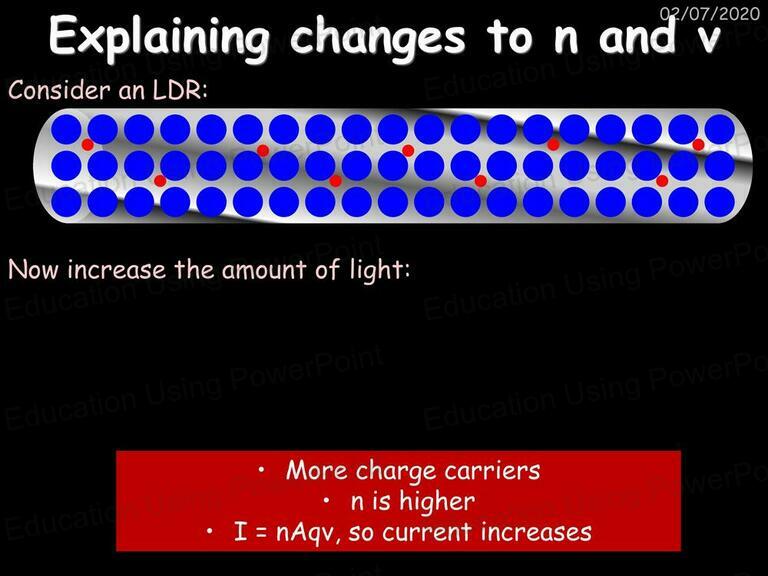

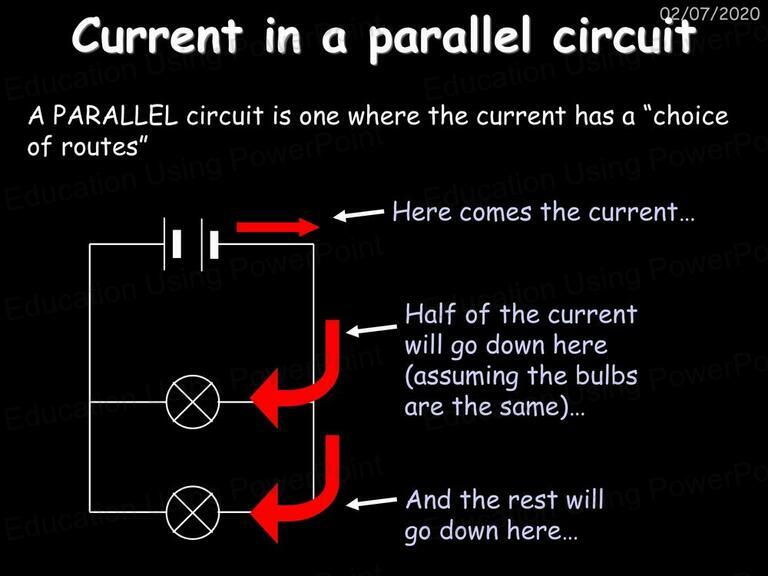

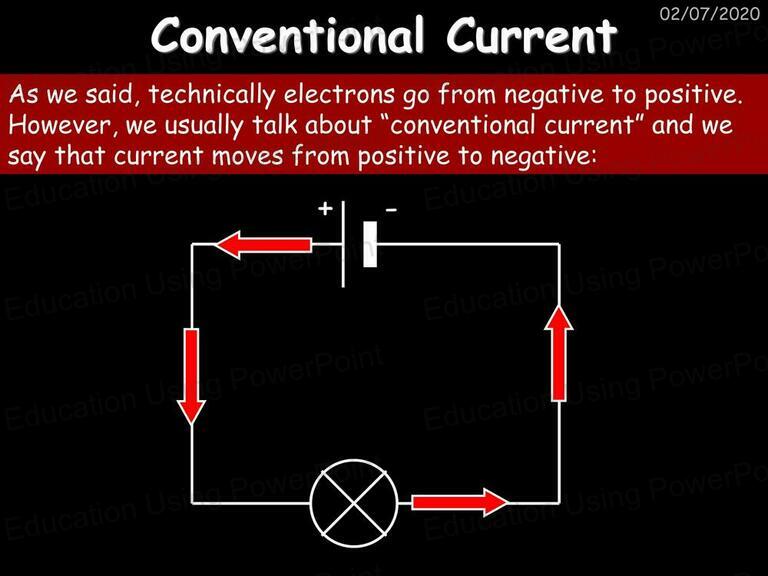

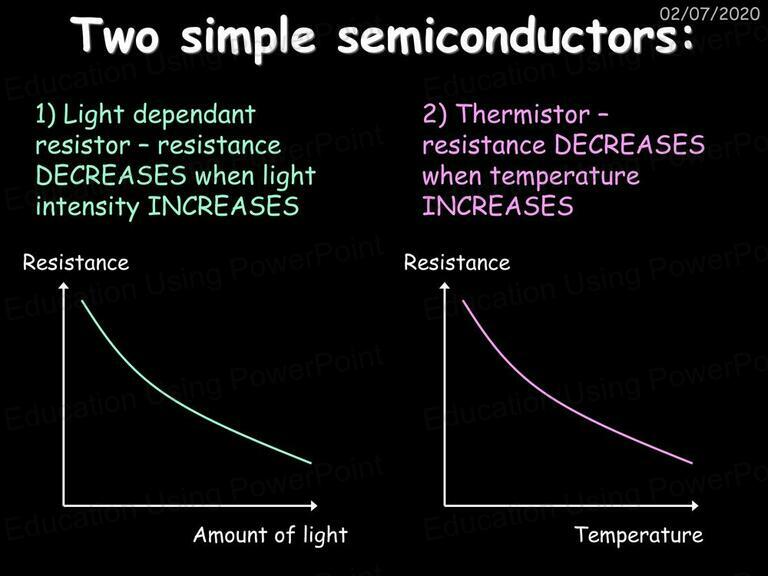

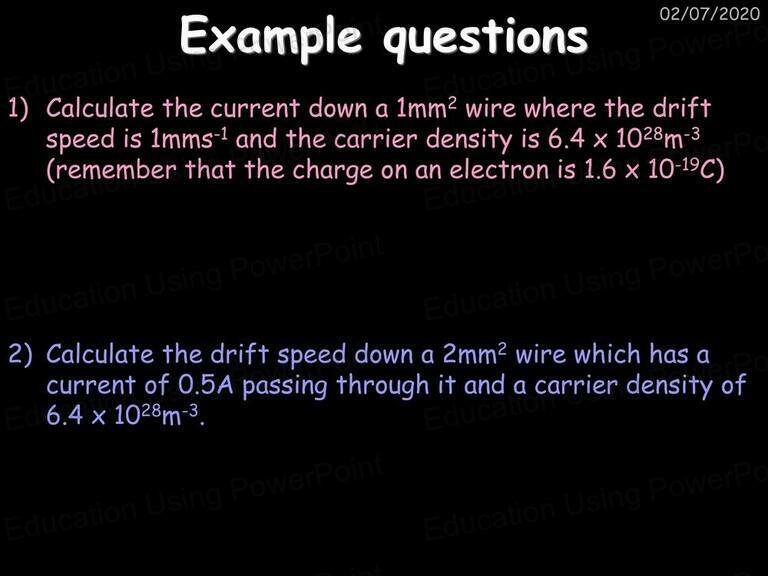

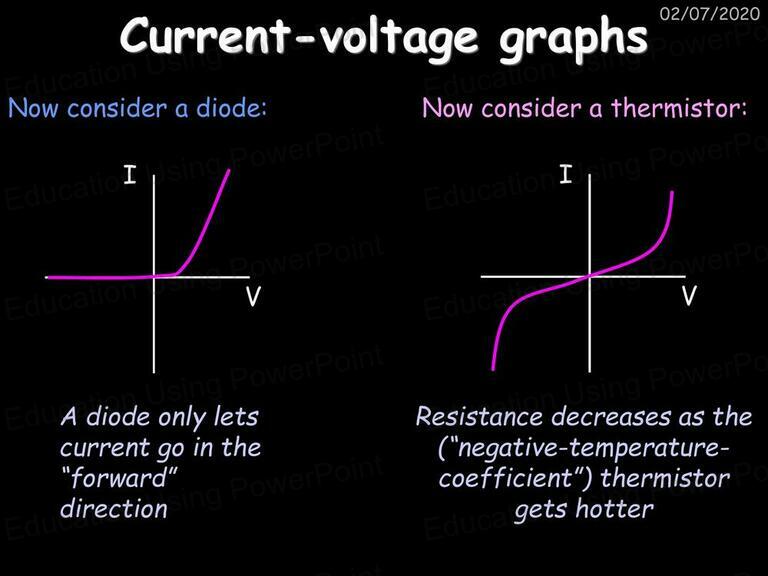

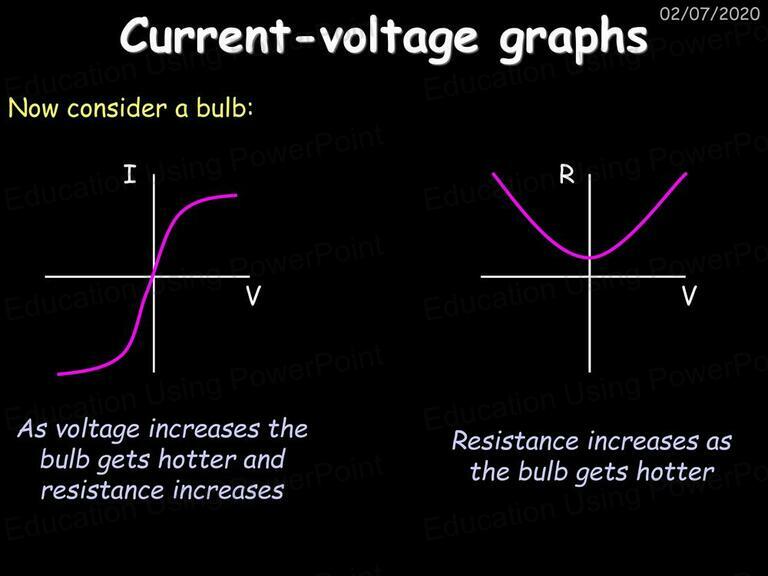

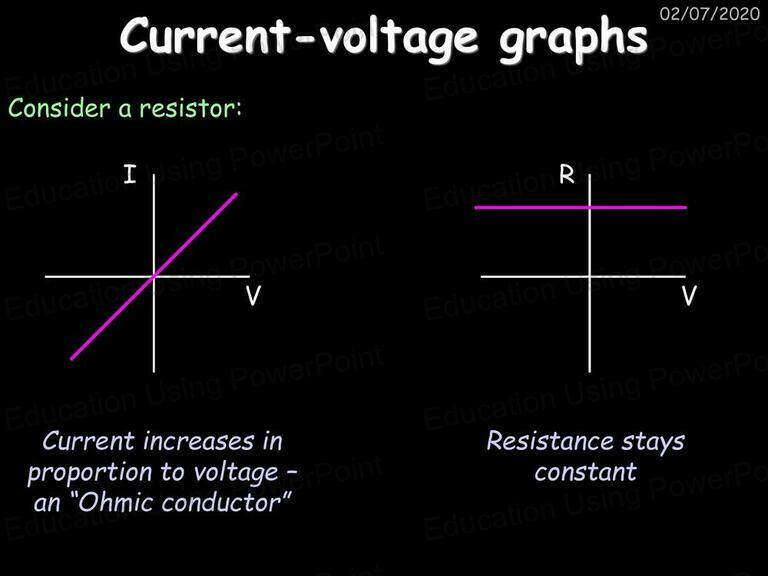

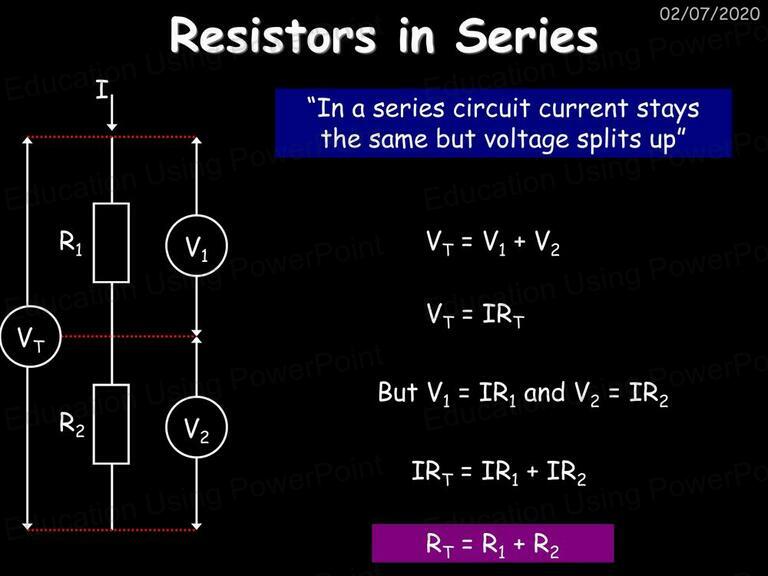

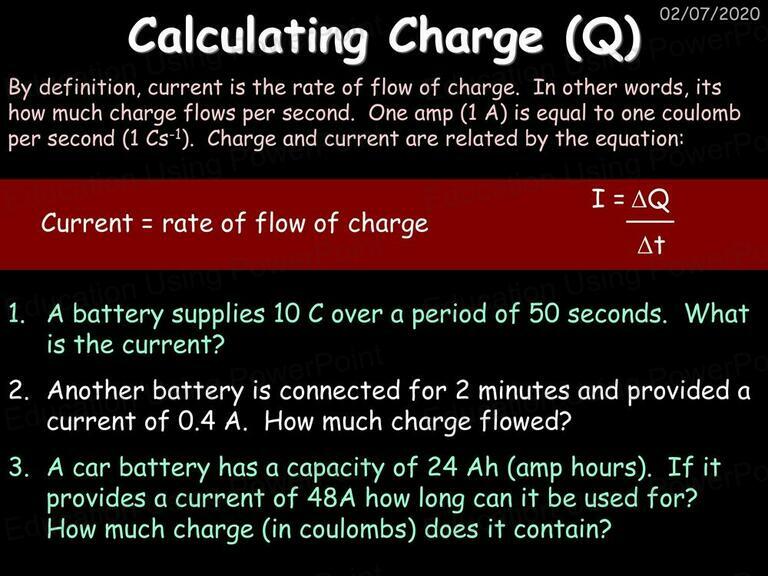

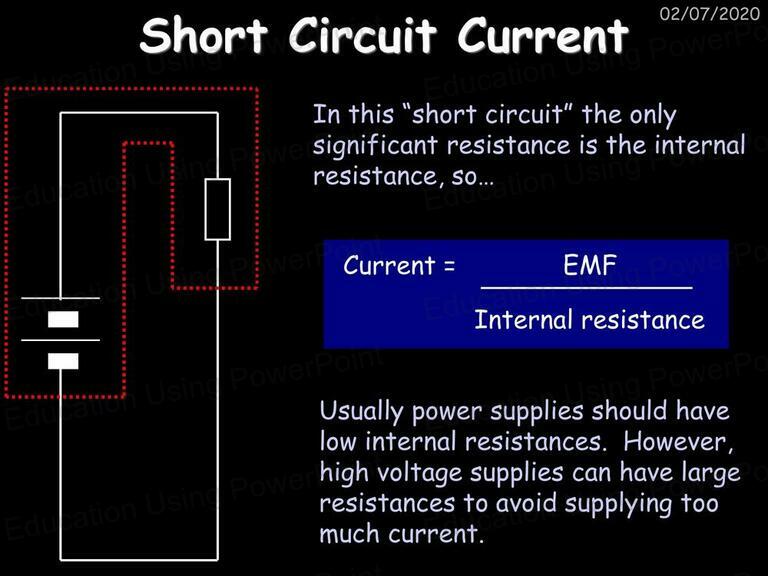

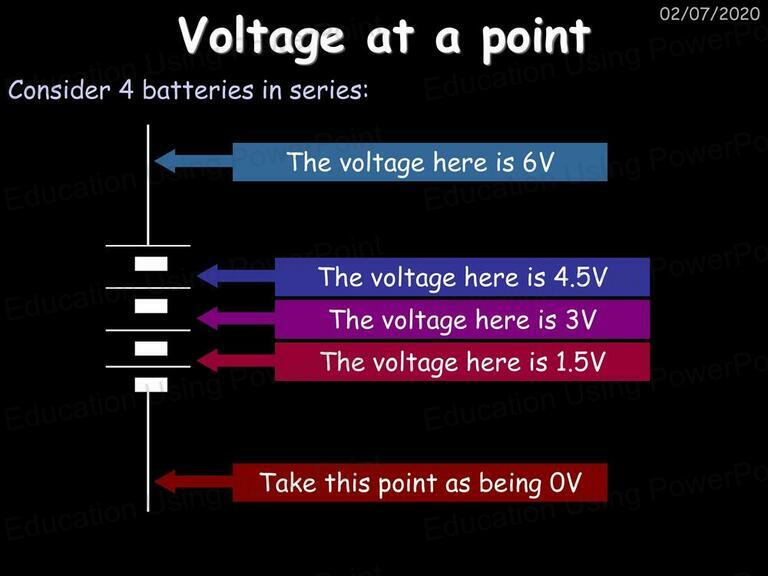

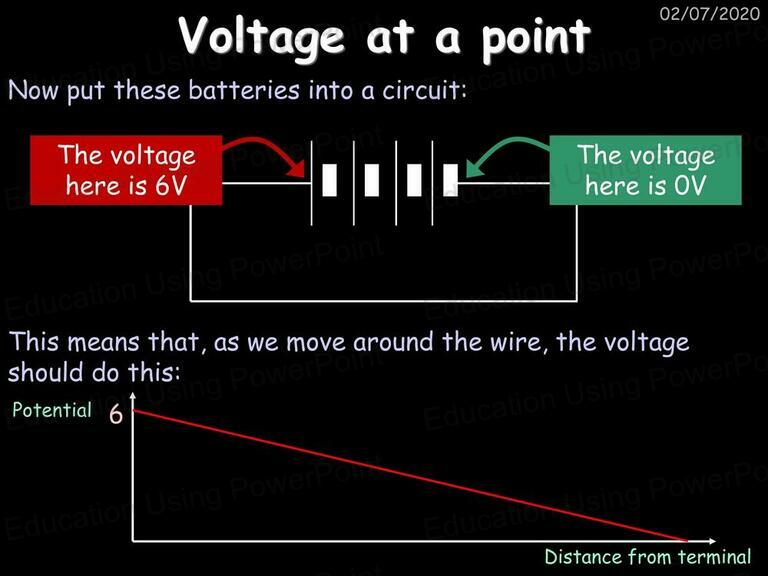

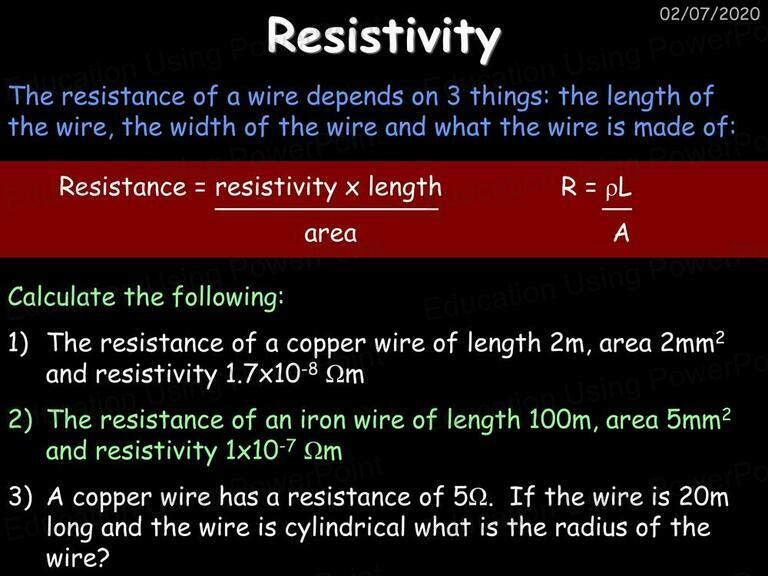

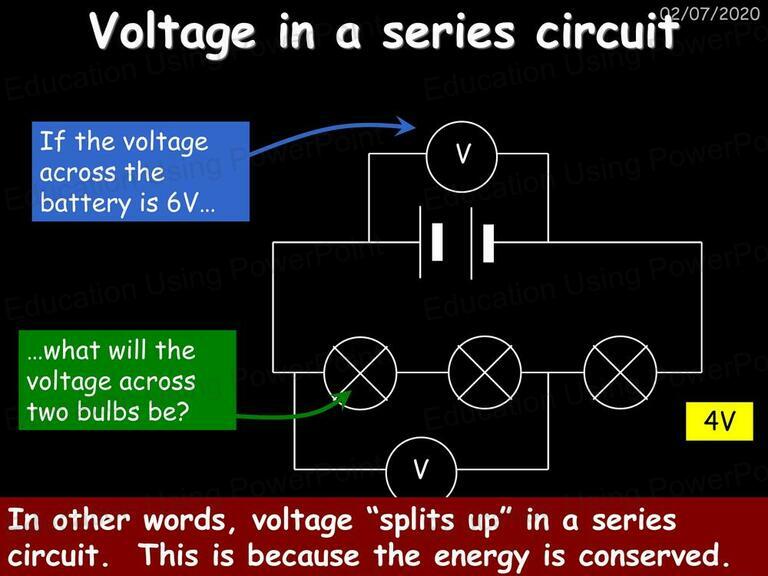

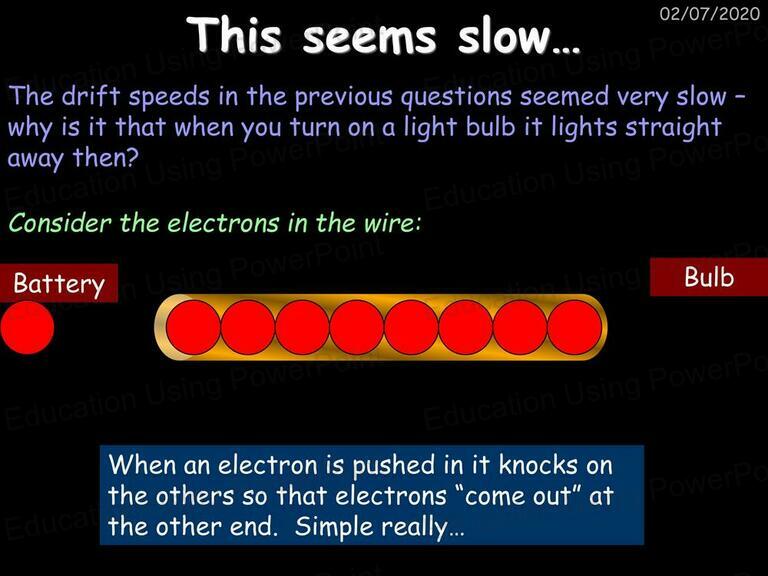

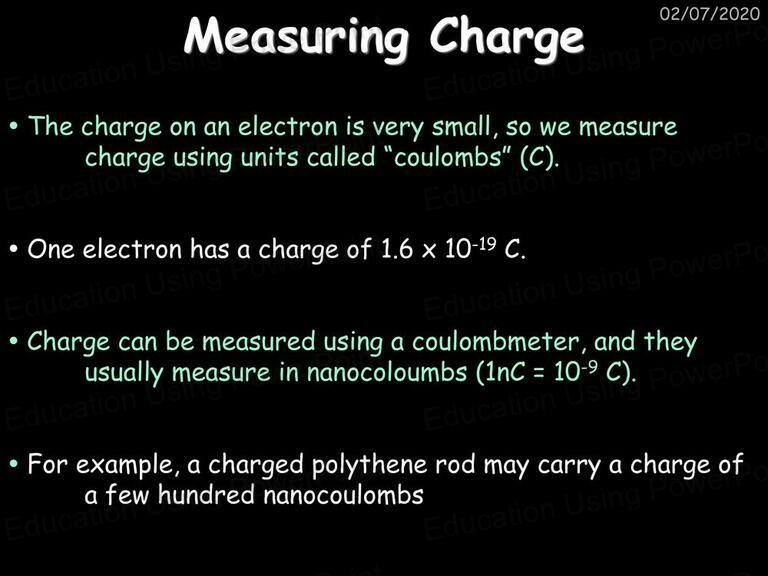

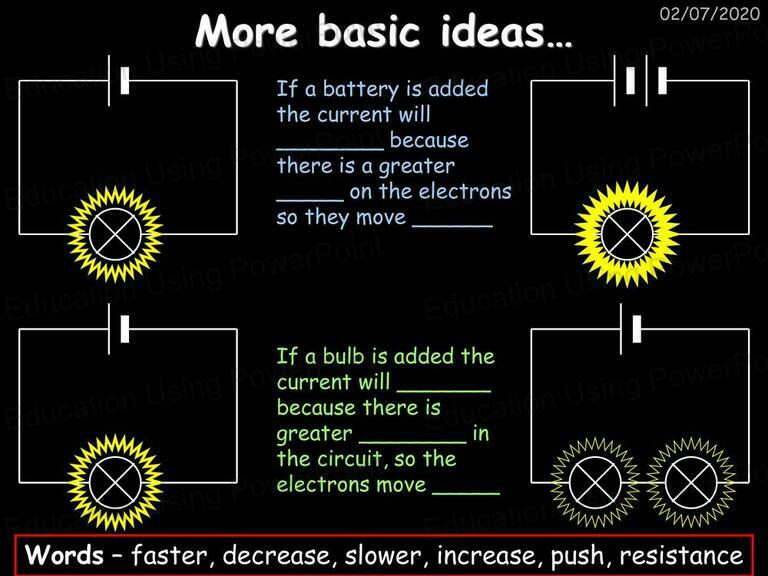

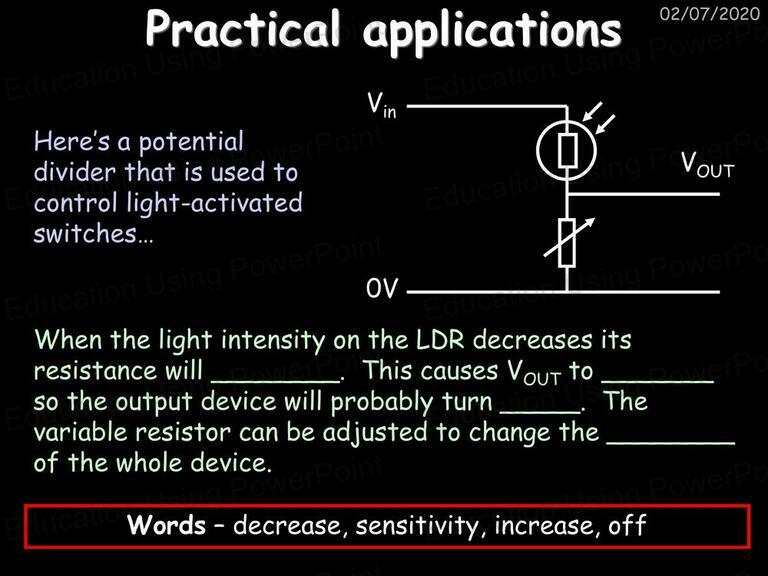

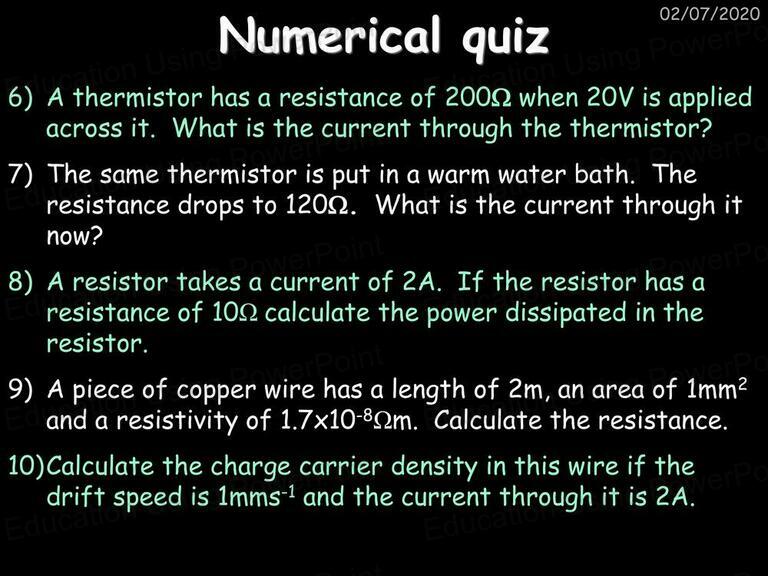

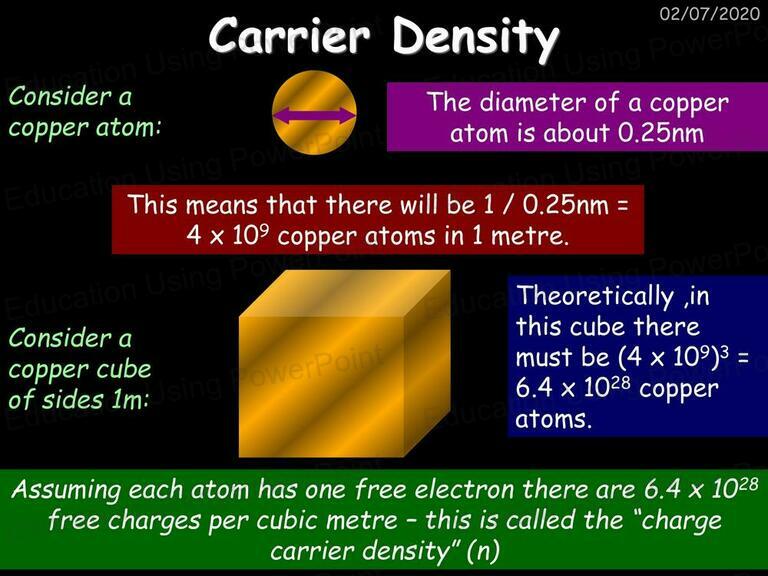

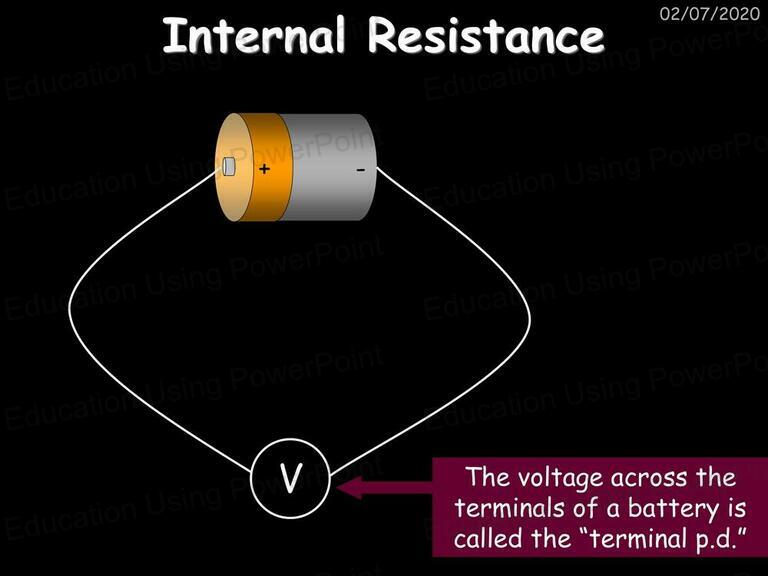

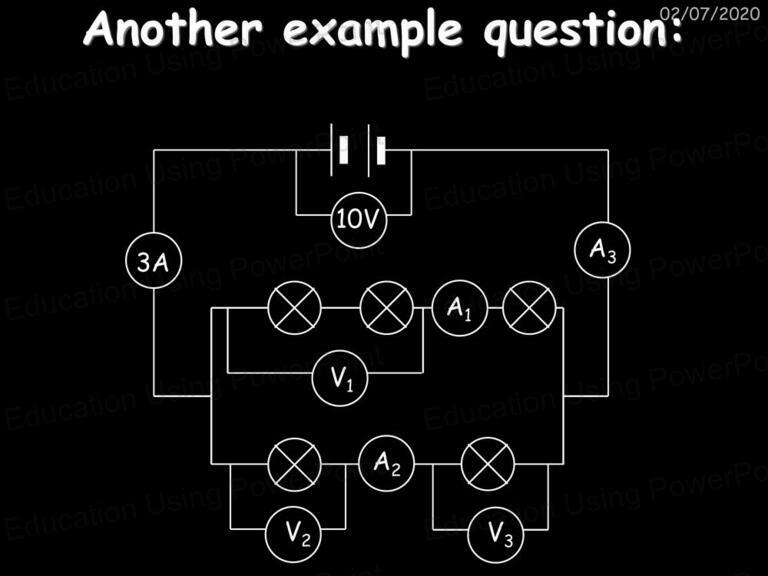

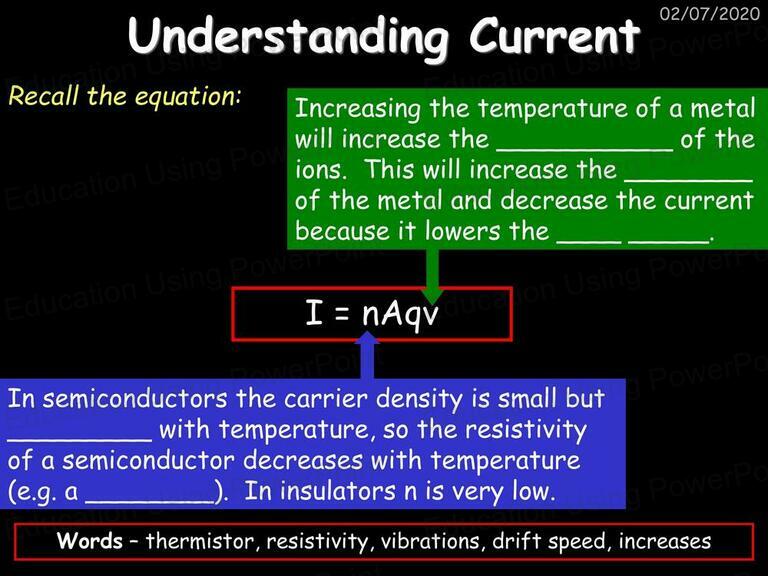

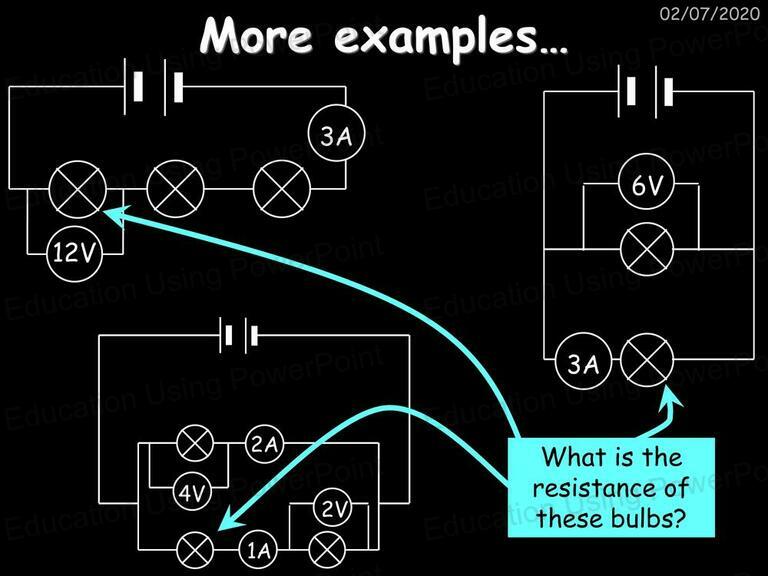

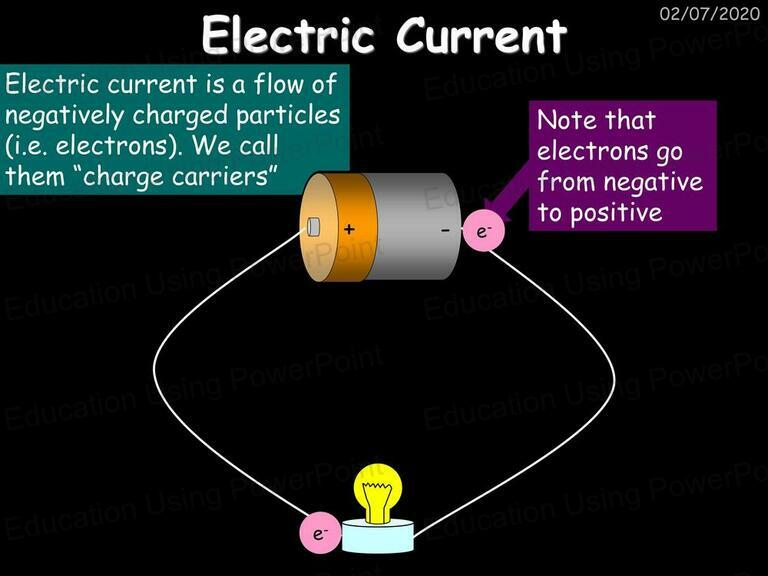

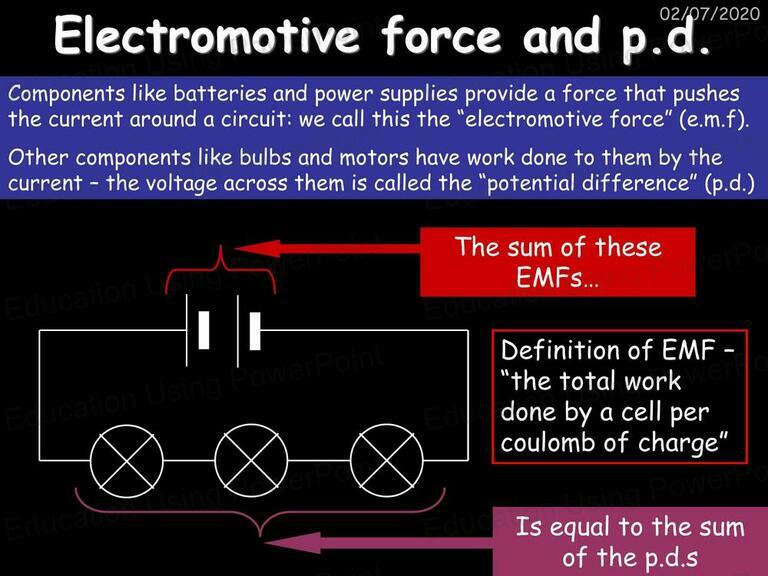

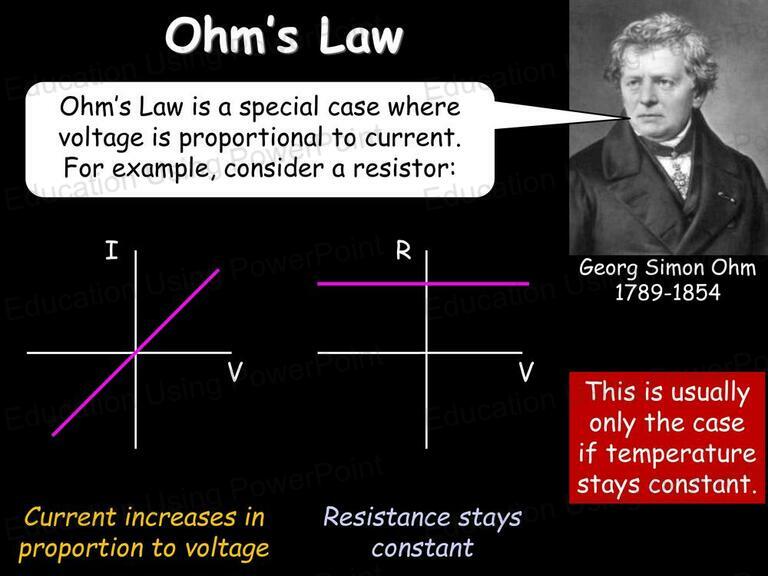

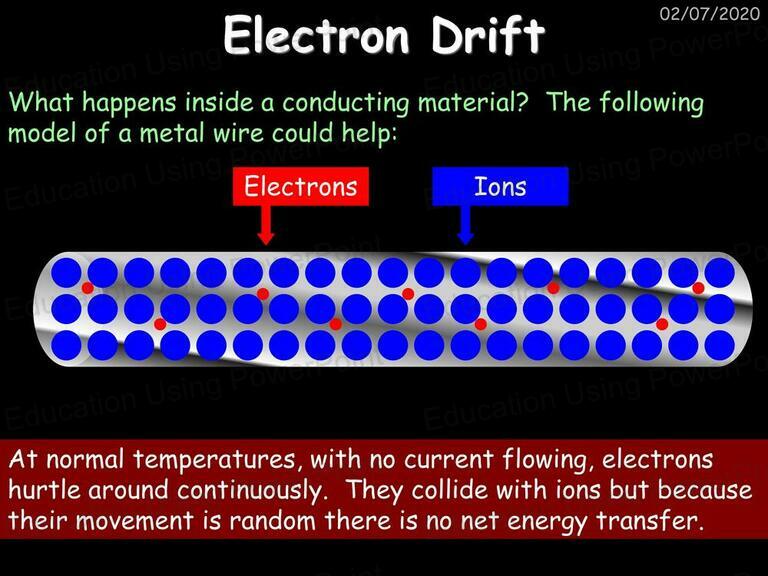

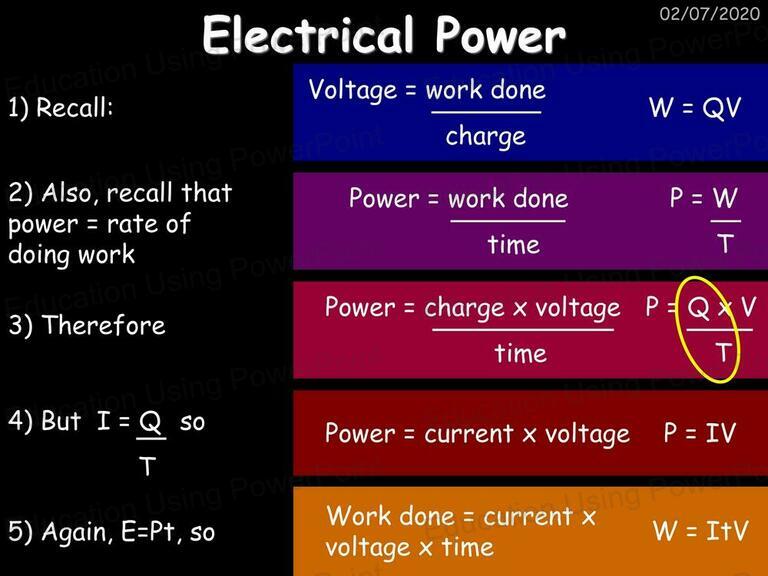

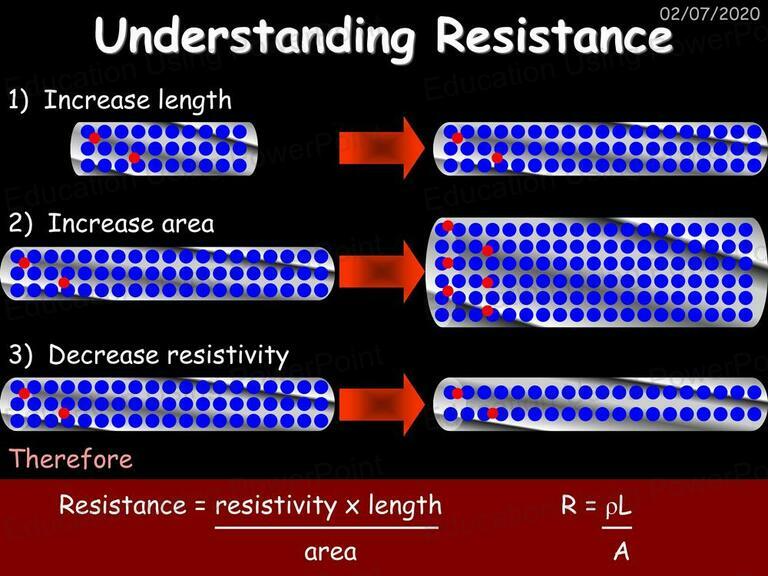

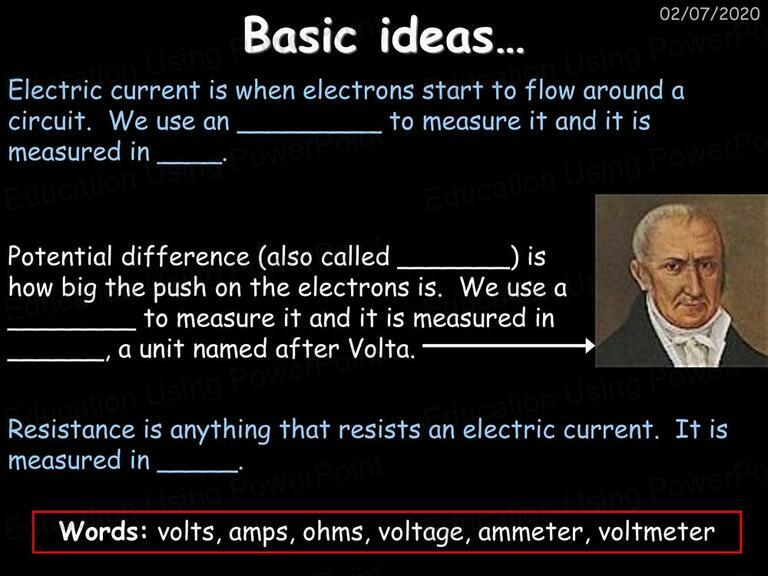

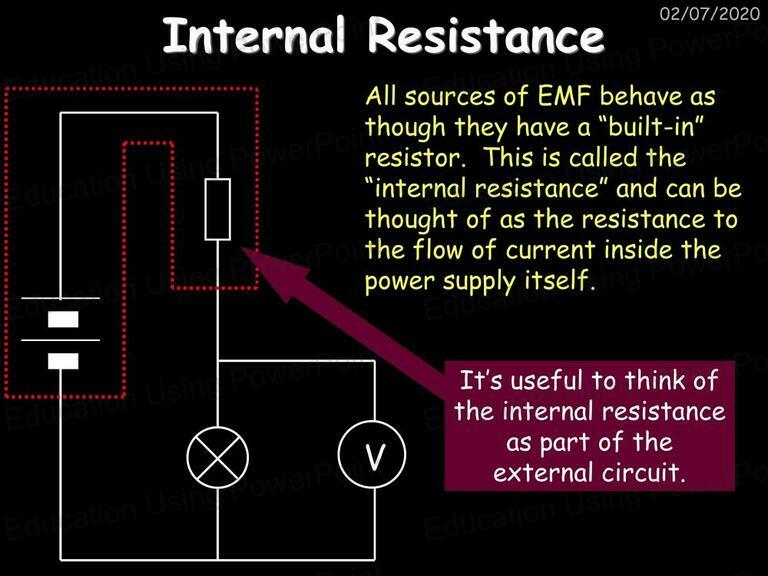

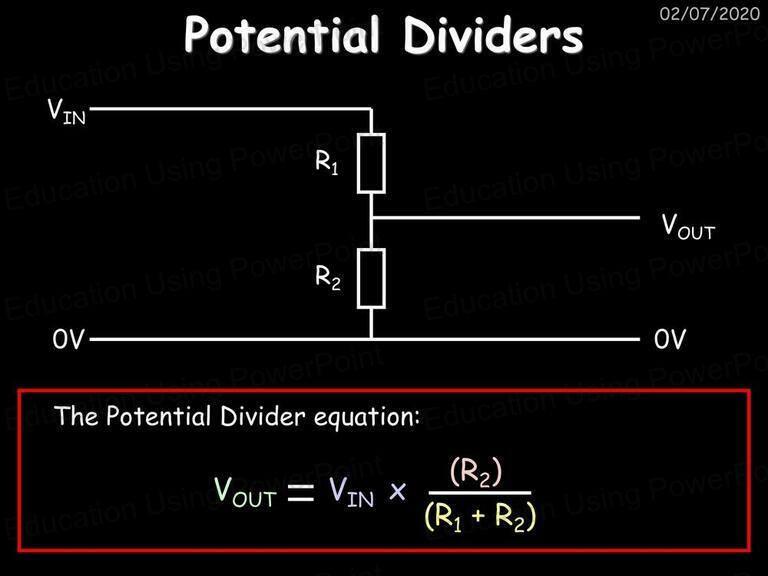

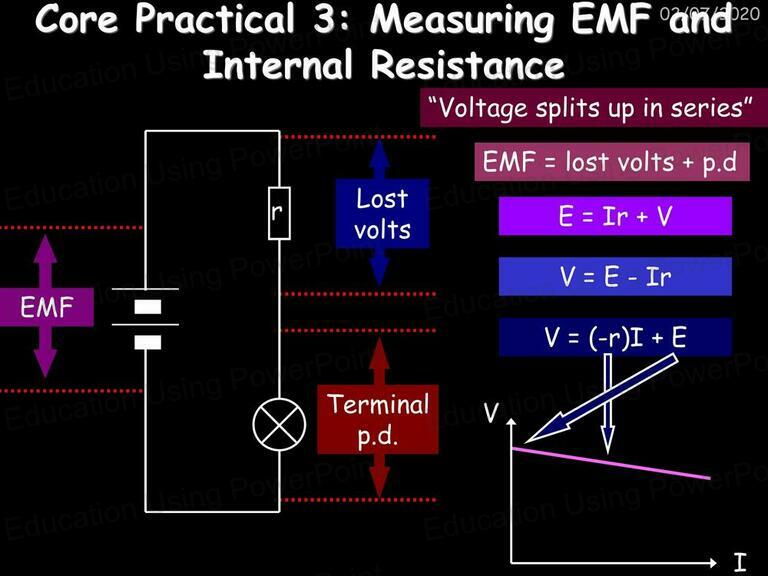

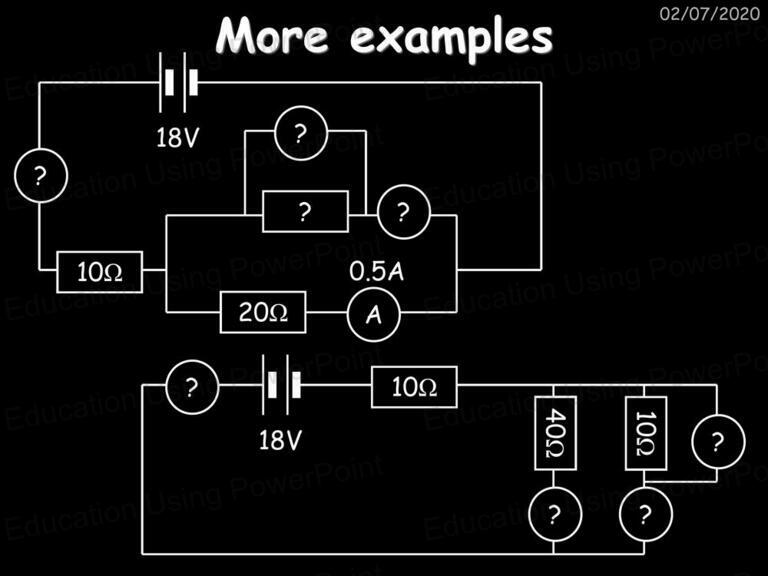

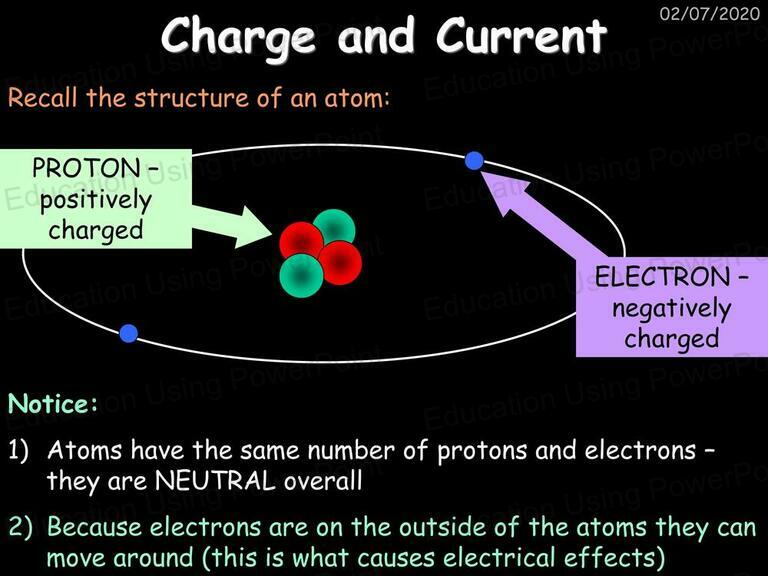

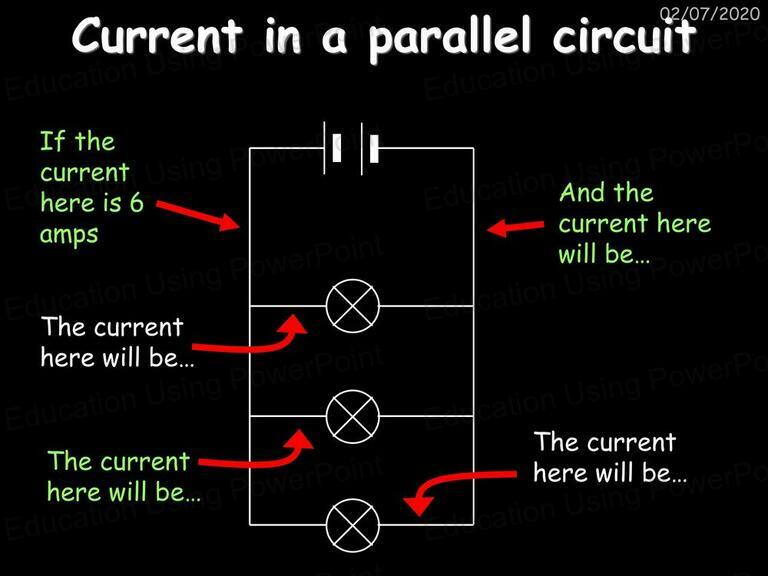

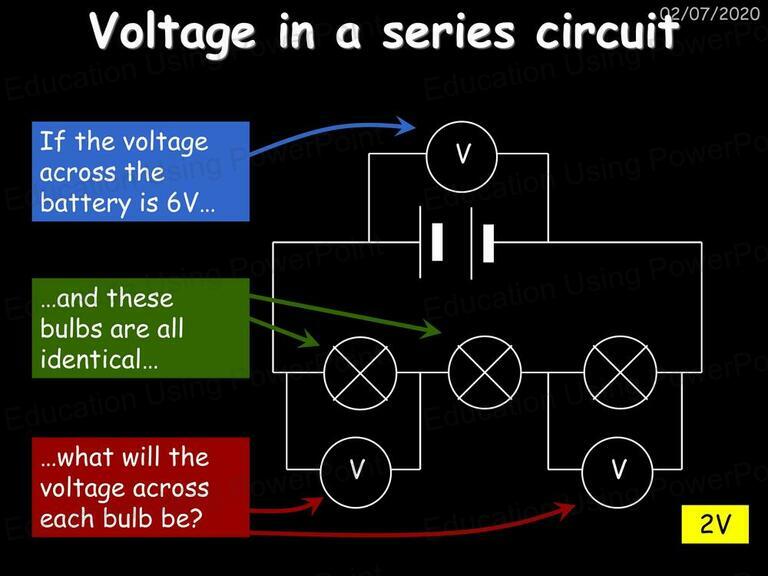

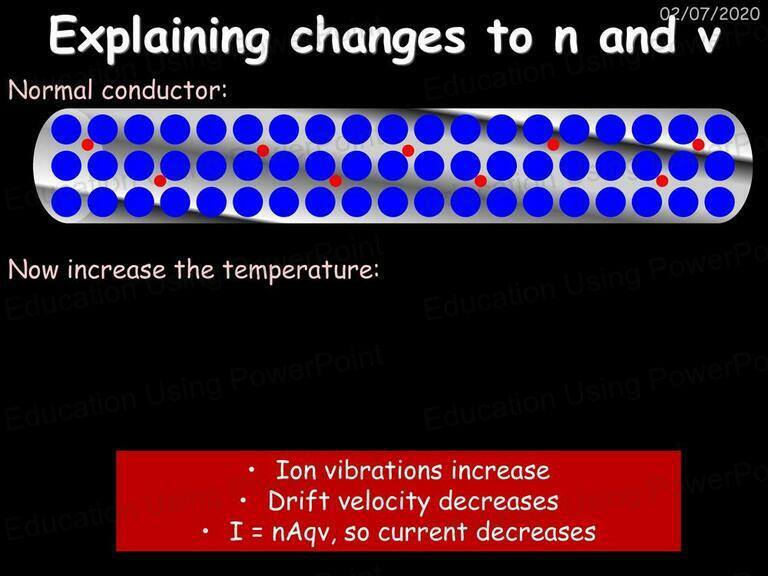

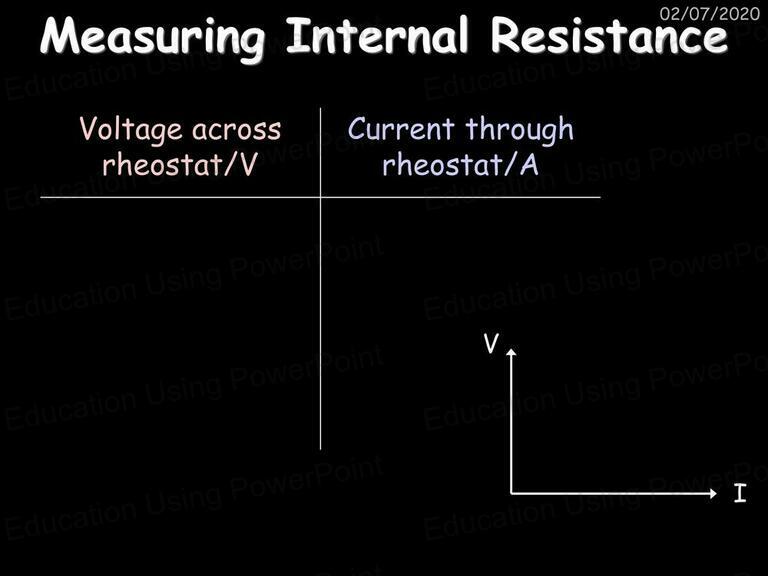

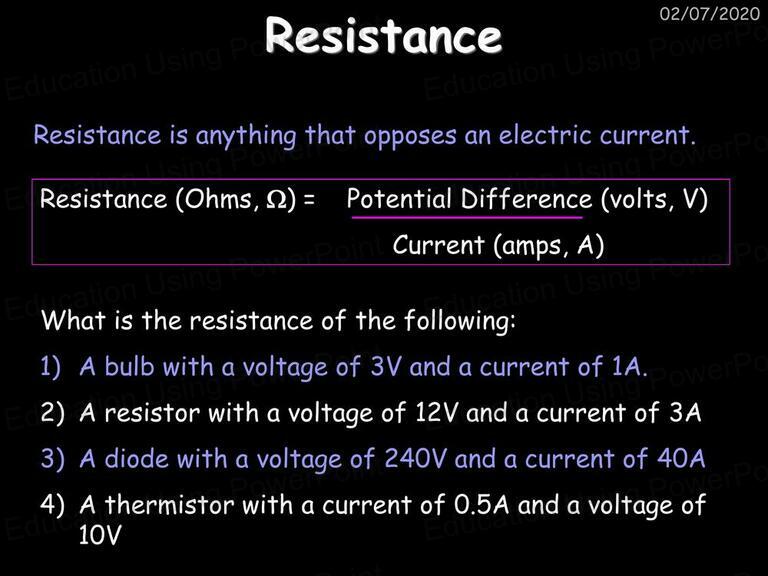

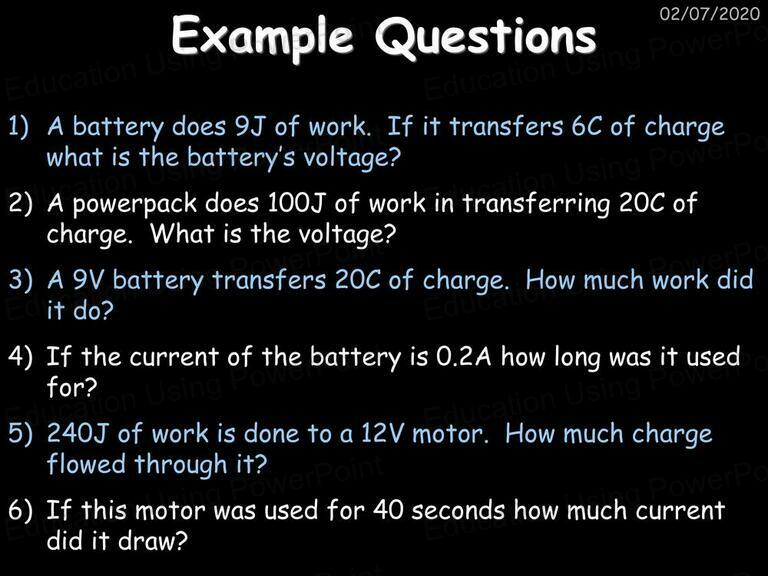

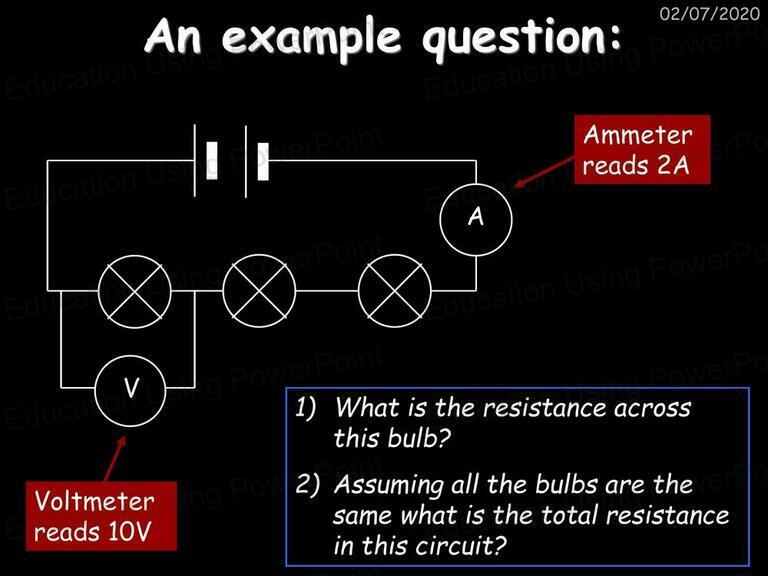

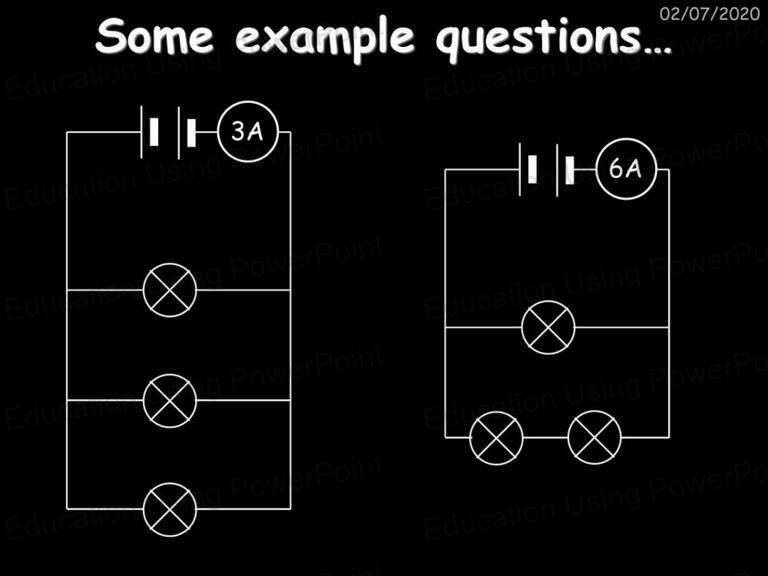

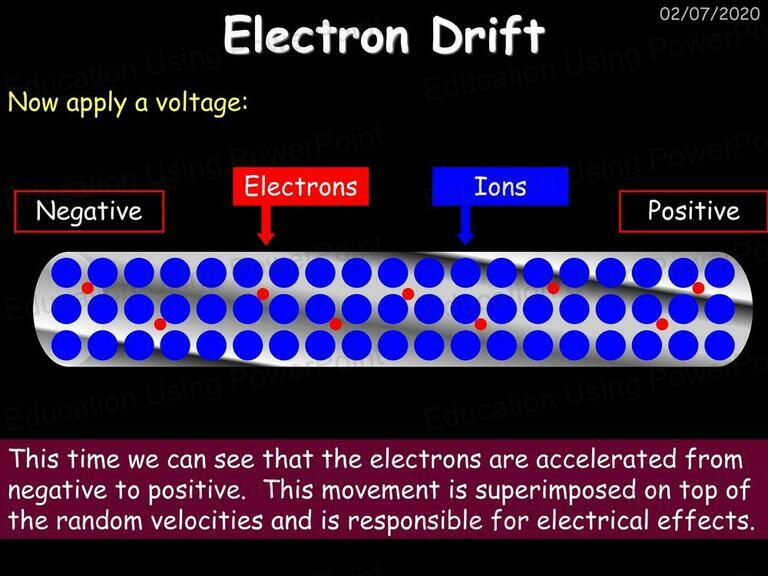

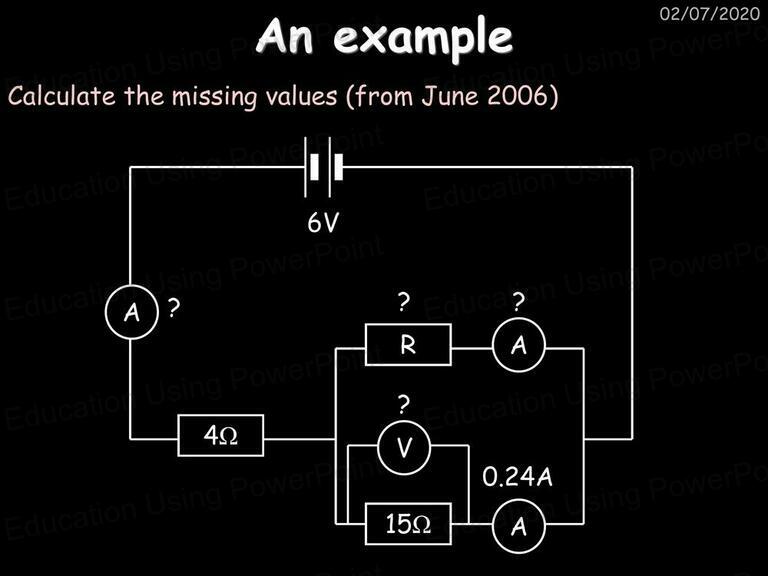

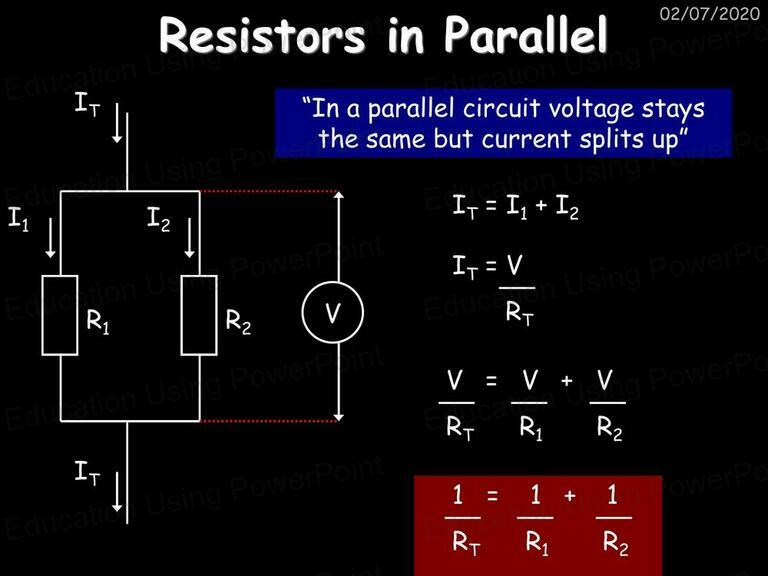

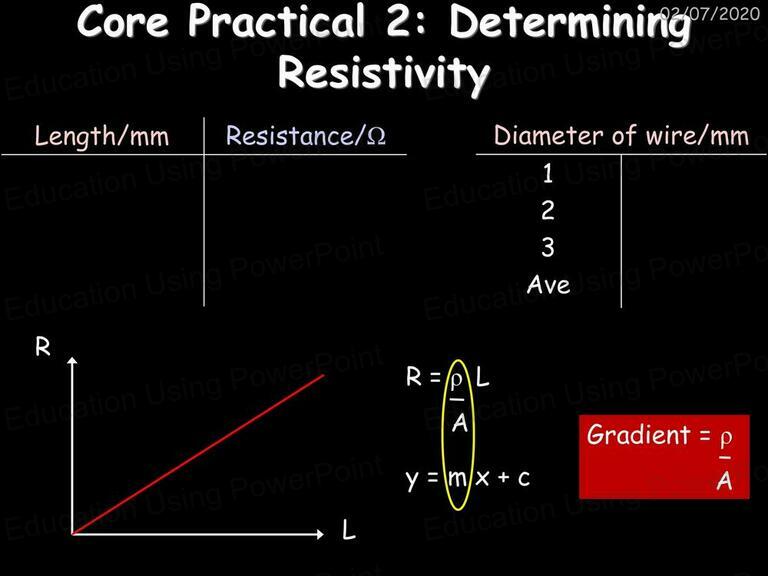

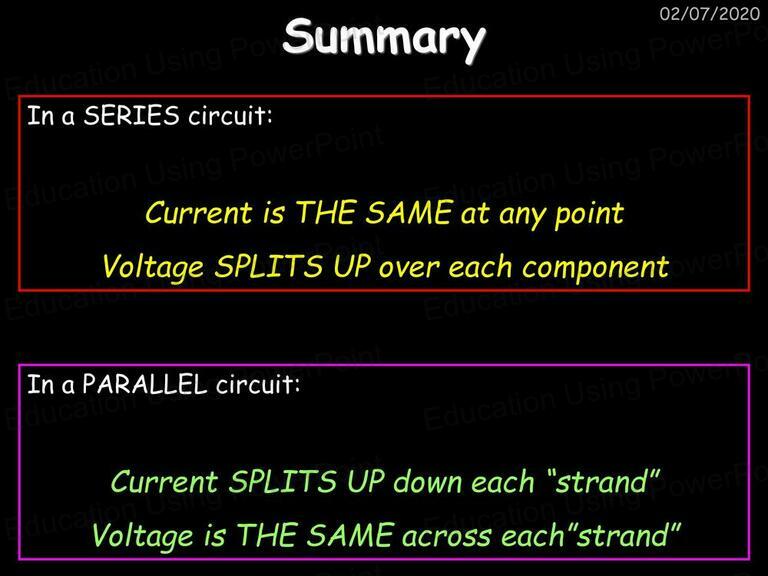

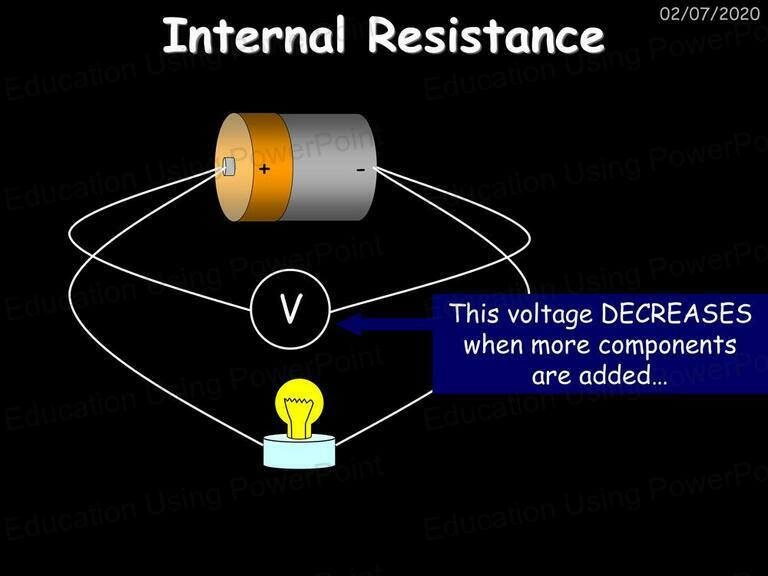

This slideshow covers the following content of the 2015 EdExcel A Level Physics course: electric current, charge and Q=It, current and voltage in series and parallel circuits, resistance, Ohm's Law and Ohmic conductors, resistors in series and parallel and how to calculate the equivalent resistance, electrical power, power loss through a resistor, current-voltage graphs for resistors, bulbs and diodes, movement of electrons, determining and using resistivity, drift speed, semiconductors and how their resistance is changed by heat or light, how voltage changes through a circuit, potential dividers, EMF, internal resistance and how to calculate it.

Click here to register and to download this PowerPoint file

PowerPoint Slide Previews

Please note: The PowerPoints do NOT have any watermarks on them. This is for preview purposes only.
