Slide Preview for P3 Electricity
Below are the previews for the slide in P3 Electricity. If you click on them, you can see larger versions. If you are on a computer you can press the left and right arrows to move. You can also click the arrows to the left and right of the screen.
Powerpoint Description:

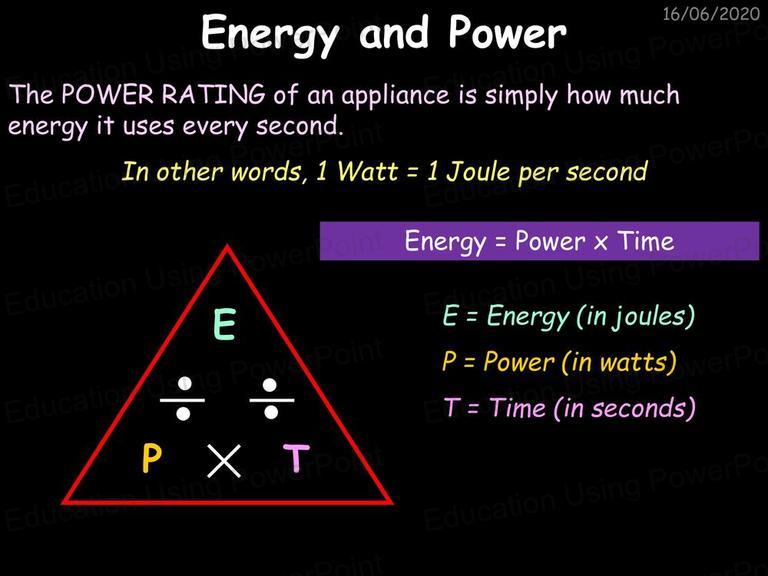

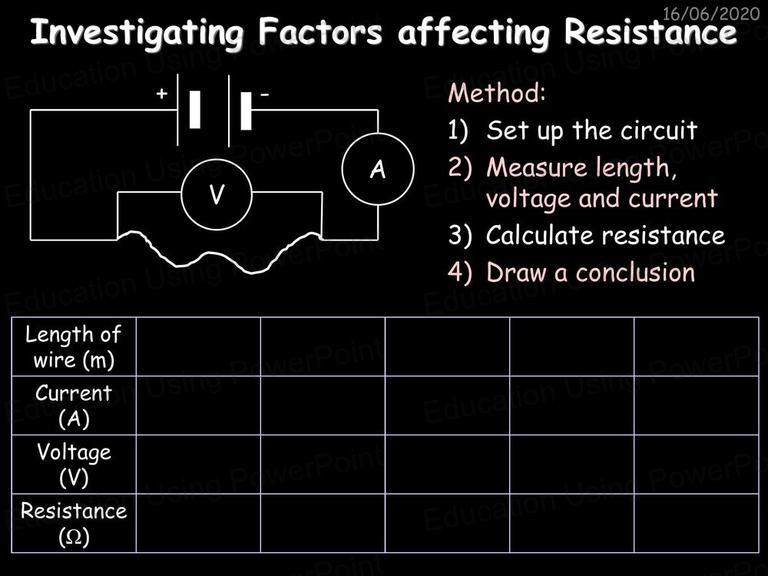

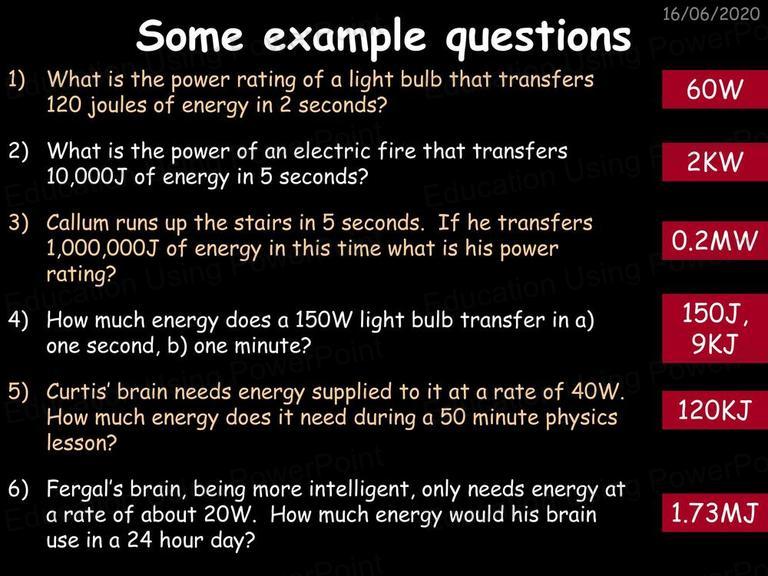

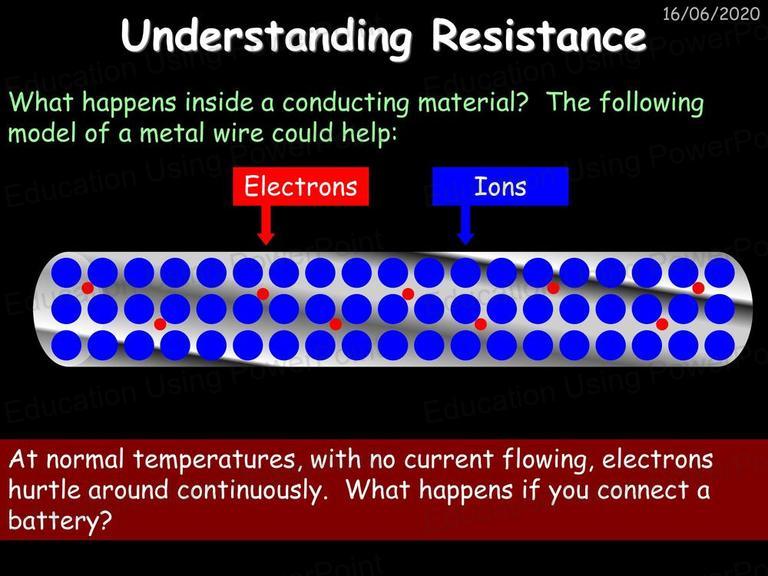

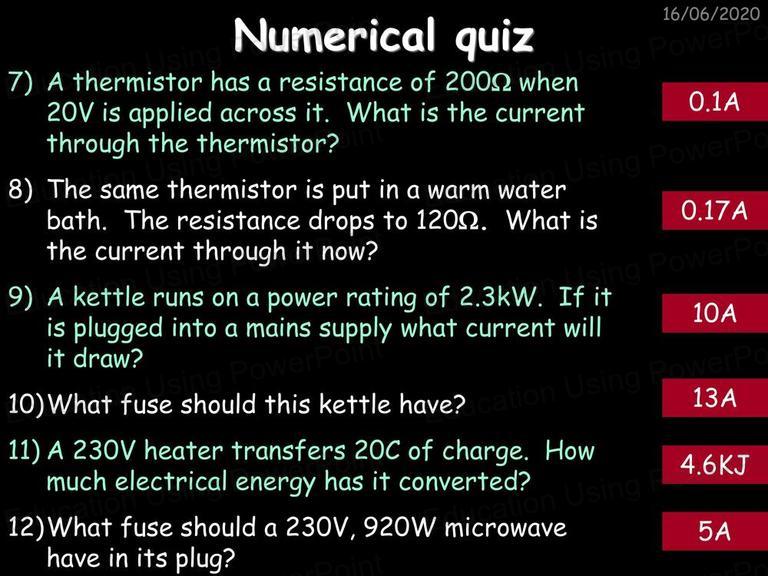

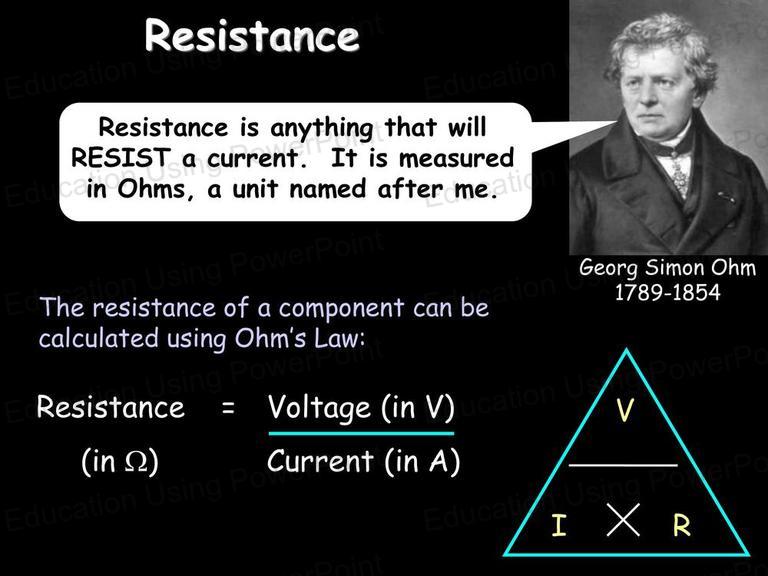

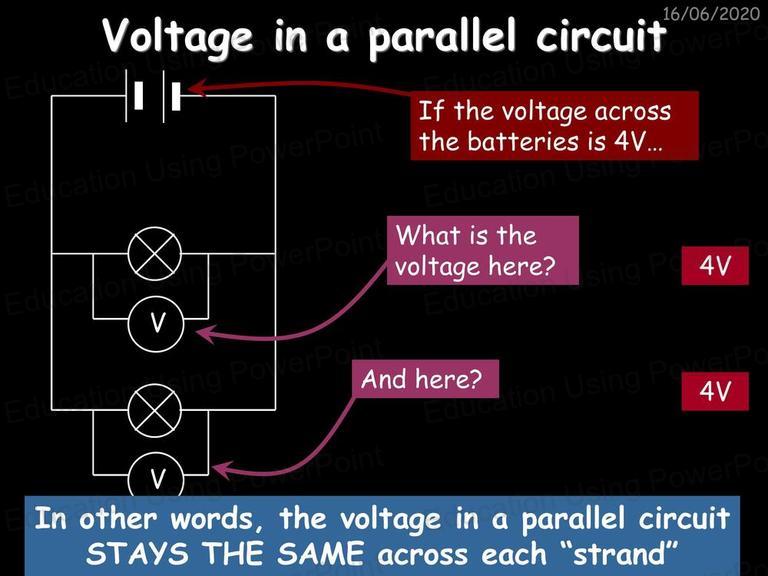

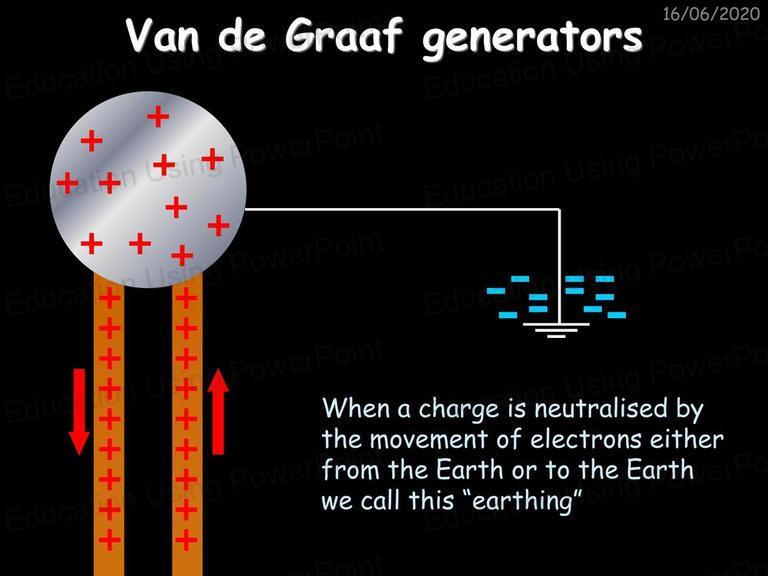

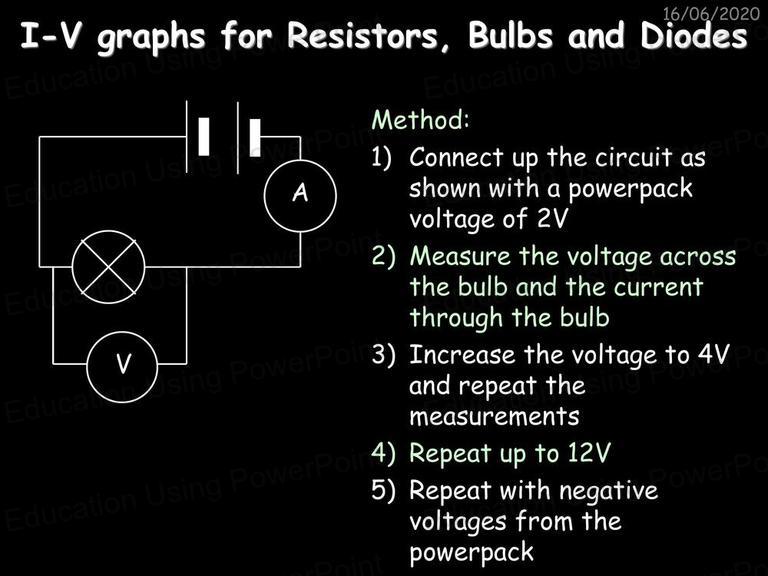

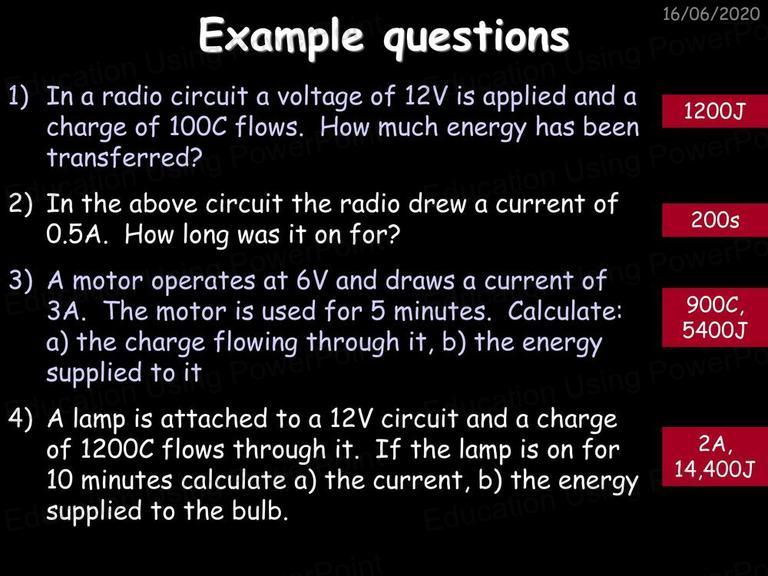

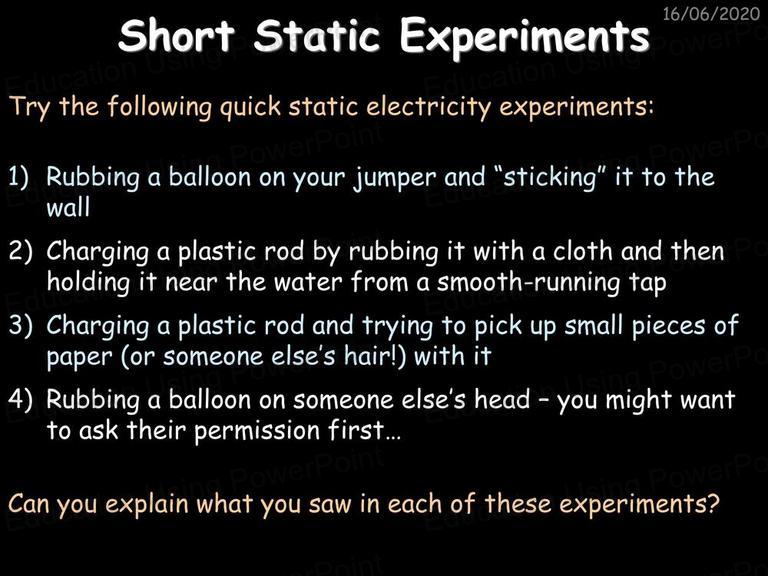

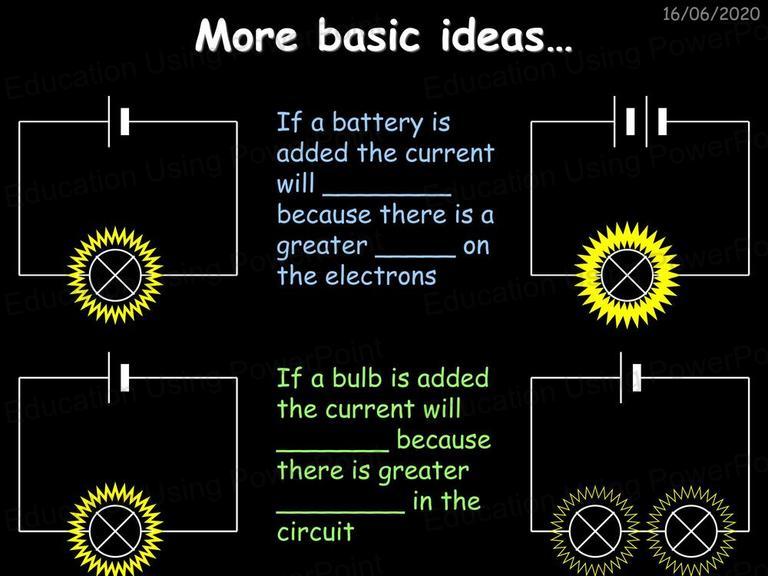

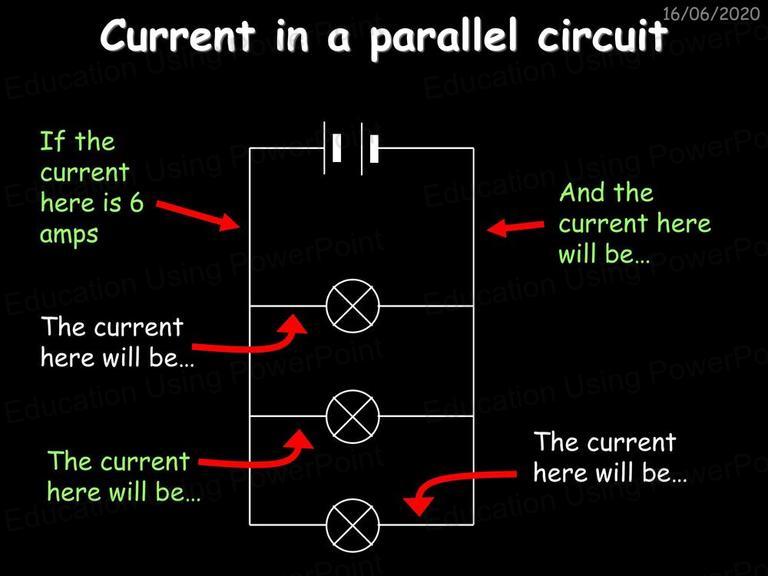

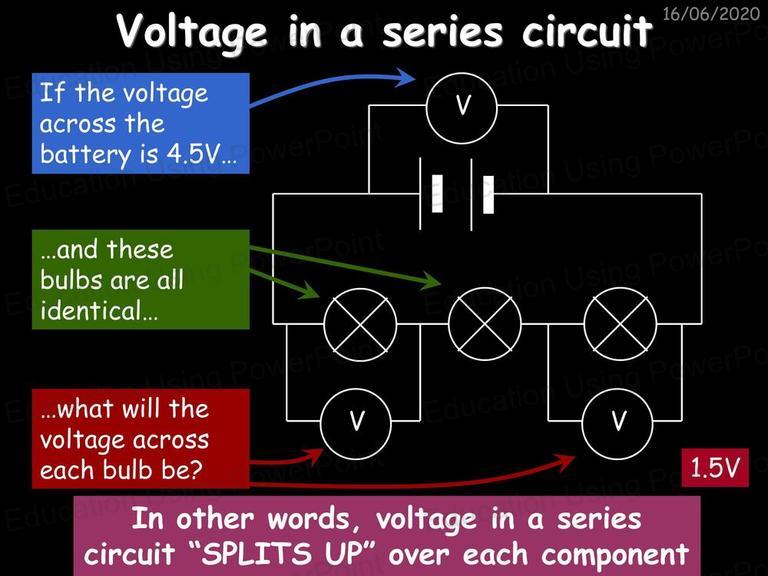

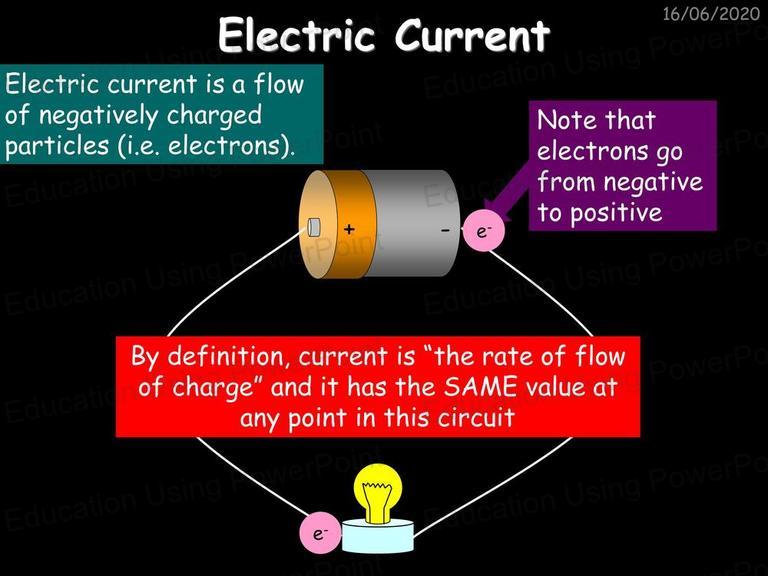

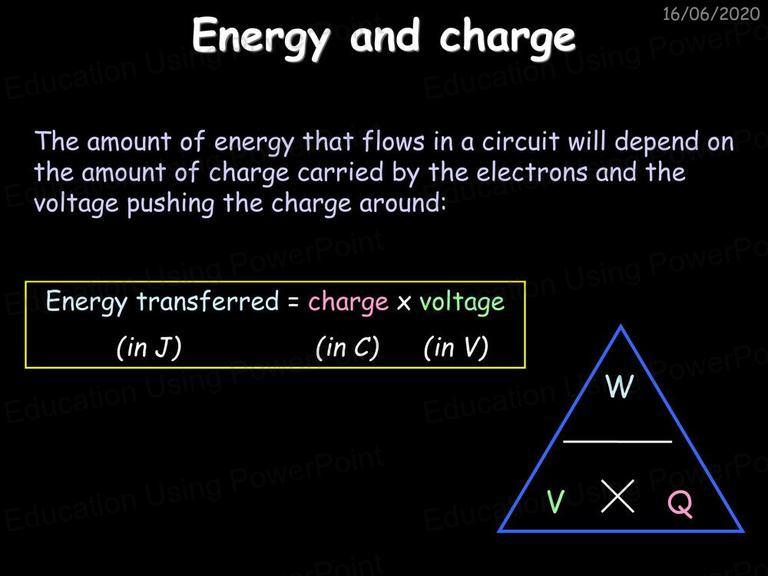

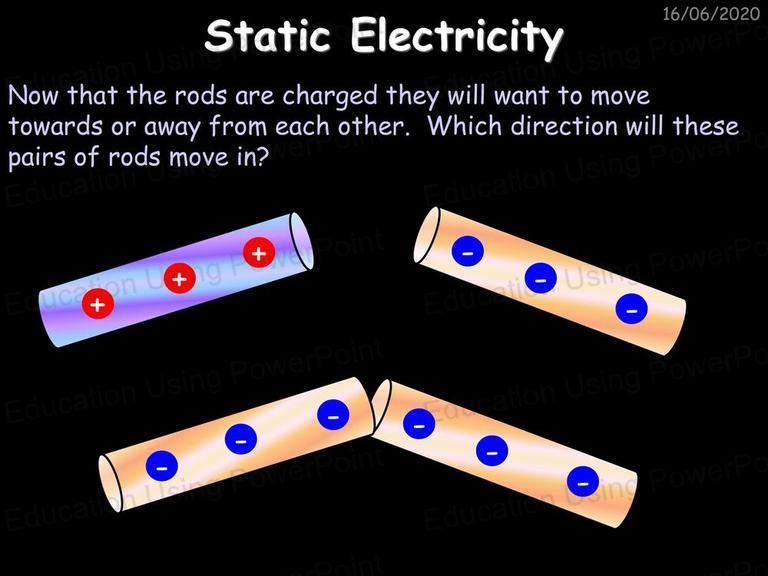

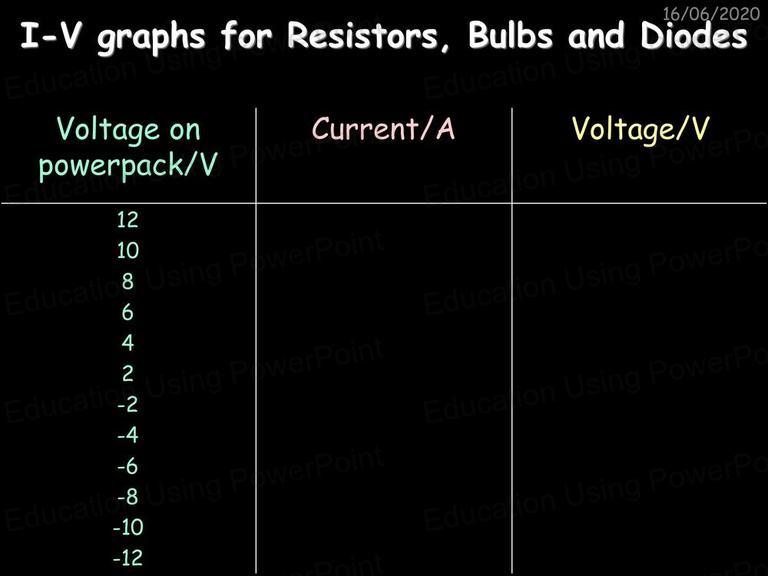

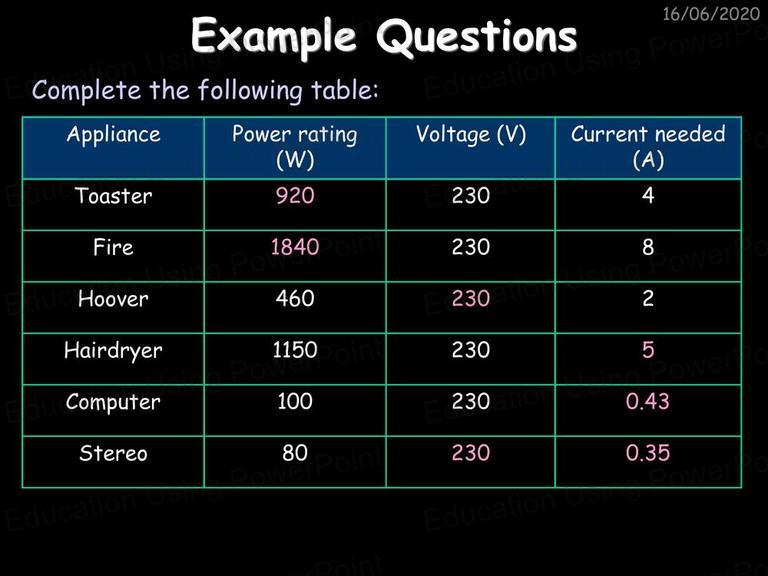

Use this slideshow to help you cover the Electricity topic from the 2016 OCR Gateway course. It includes: static electricity, gold leaf electroscopes, Van de Graaf generators, electric fields, electric current, charge, Q=It, circuit symbols, current and voltage in series and parallel circuits, calculating resistance, Ohm's Law, factors affecting resistance, understanding resistance, I-V graphs for resistors, bulbs and diodes, resistors in series and parallel, equivalent resistance, LDRs and thermistors, using thermistors and LDRs in control circuits, Q=QV, calculating power, measuring power practically, lots of example questions and answers.Click here to register and to download this PowerPoint file
PowerPoint Slide Previews
Please note: The PowerPoints do NOT have any watermarks on them. This is for preview purposes only.
![](https://www.educationusingpowerpoint.co.uk/preview_images/9/small-12079-Slide-01.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/1/small-12131-Slide-02.jpg)

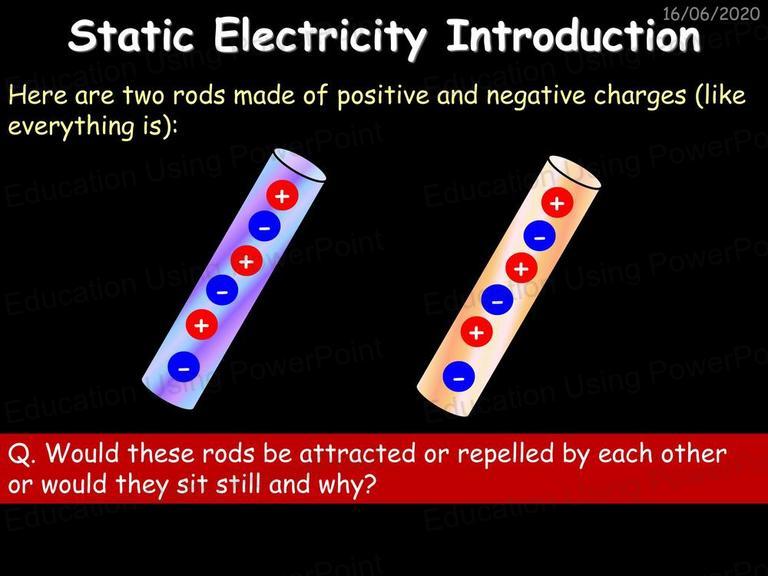

![](https://www.educationusingpowerpoint.co.uk/preview_images/8/small-12088-Slide-03.jpg)

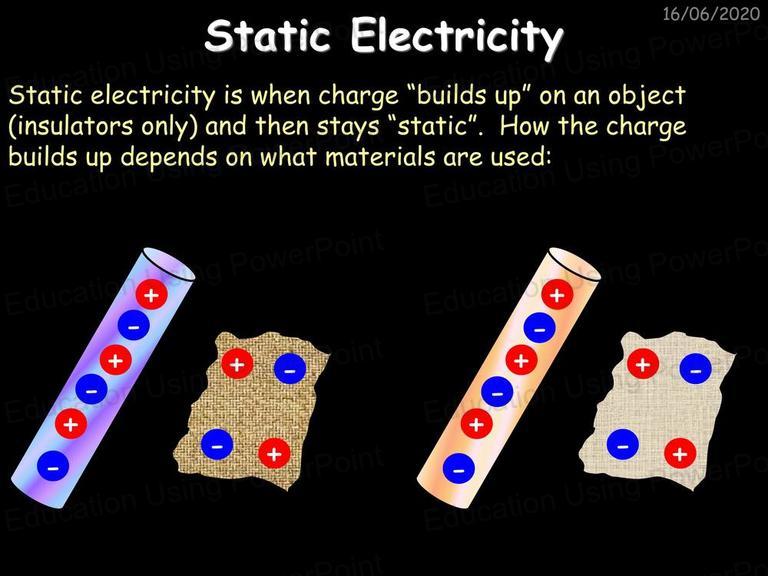

![](https://www.educationusingpowerpoint.co.uk/preview_images/8/small-12128-Slide-04.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/5/small-12125-Slide-05.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/6/small-12106-Slide-06.jpg)

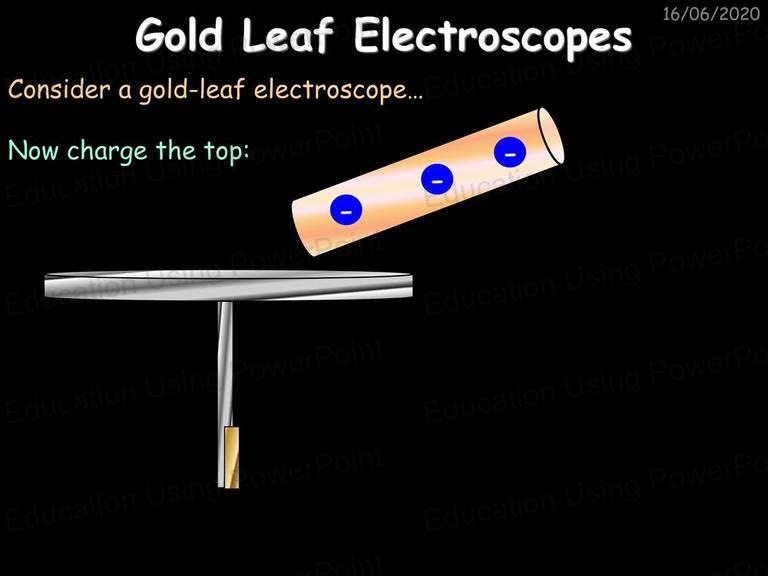

![](https://www.educationusingpowerpoint.co.uk/preview_images/2/small-12132-Slide-07.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/1/small-12081-Slide-08.jpg)

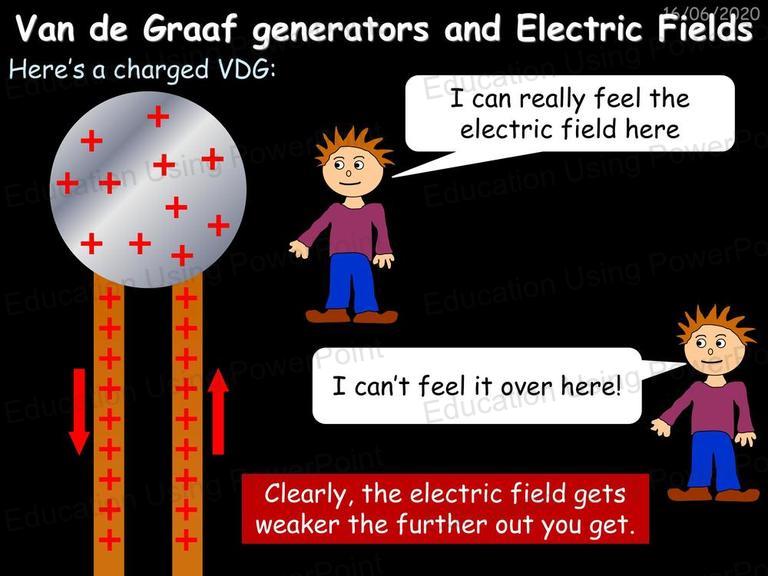

![](https://www.educationusingpowerpoint.co.uk/preview_images/2/small-12102-Slide-09.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/5/small-12095-Slide-10.jpg)

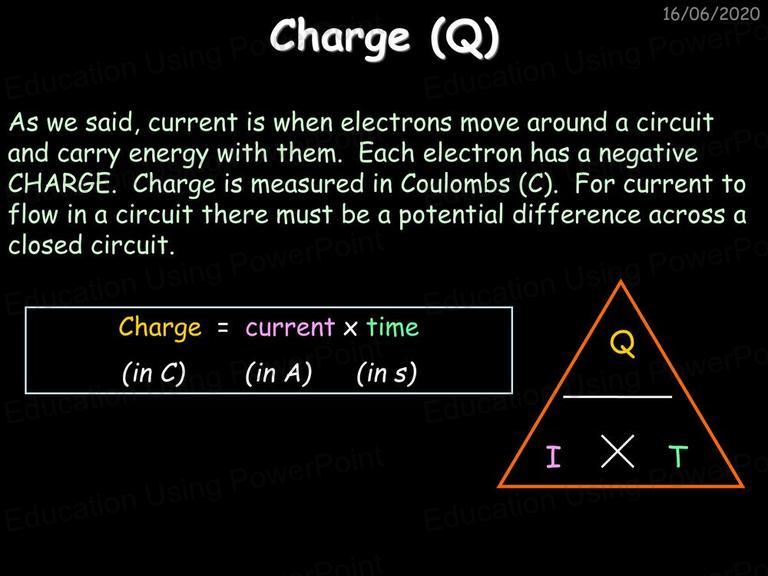

![](https://www.educationusingpowerpoint.co.uk/preview_images/5/small-12135-Slide-11.jpg)

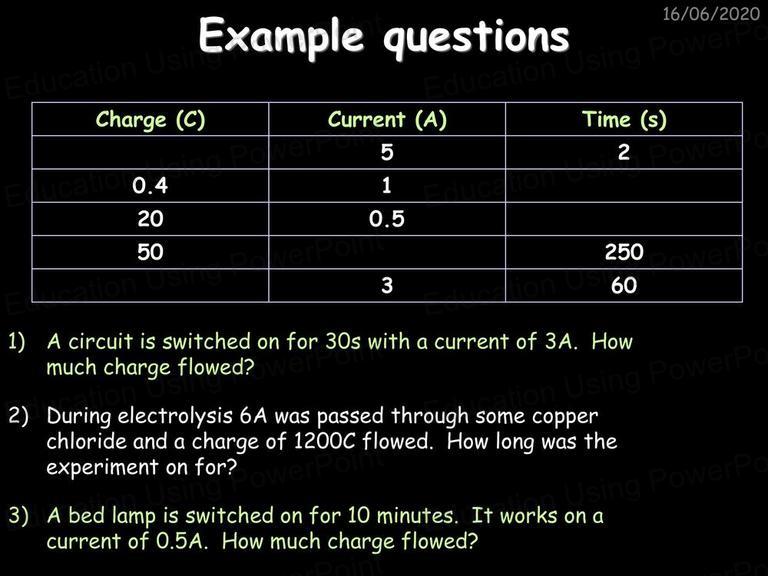

![](https://www.educationusingpowerpoint.co.uk/preview_images/4/small-12084-Slide-12.jpg)

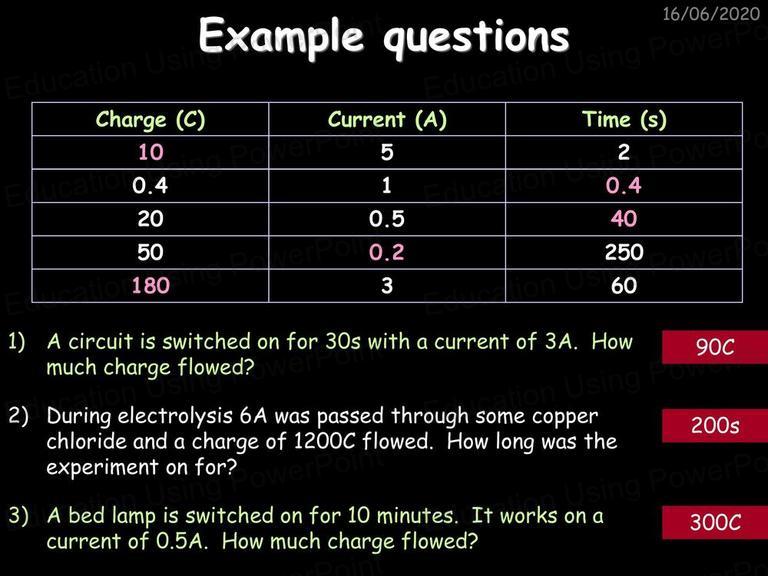

![](https://www.educationusingpowerpoint.co.uk/preview_images/8/small-12108-Slide-13.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/3/small-12103-Slide-14.jpg)

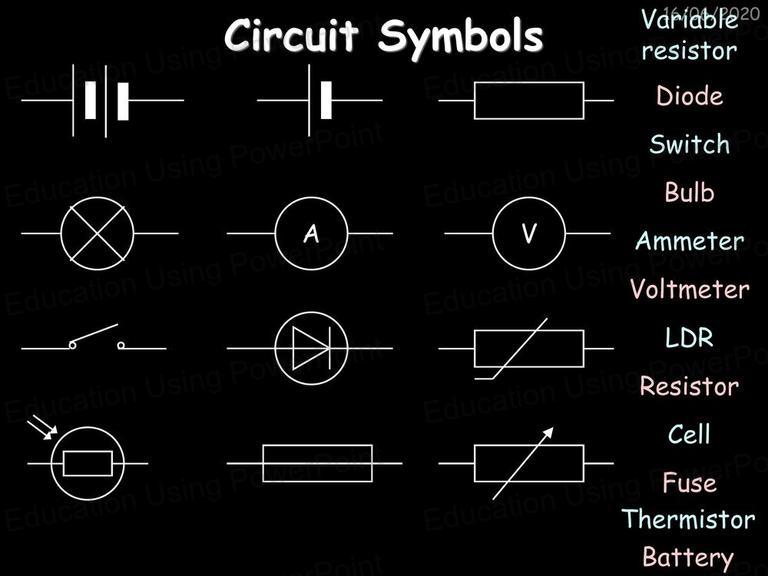

![](https://www.educationusingpowerpoint.co.uk/preview_images/3/small-12113-Slide-15.jpg)

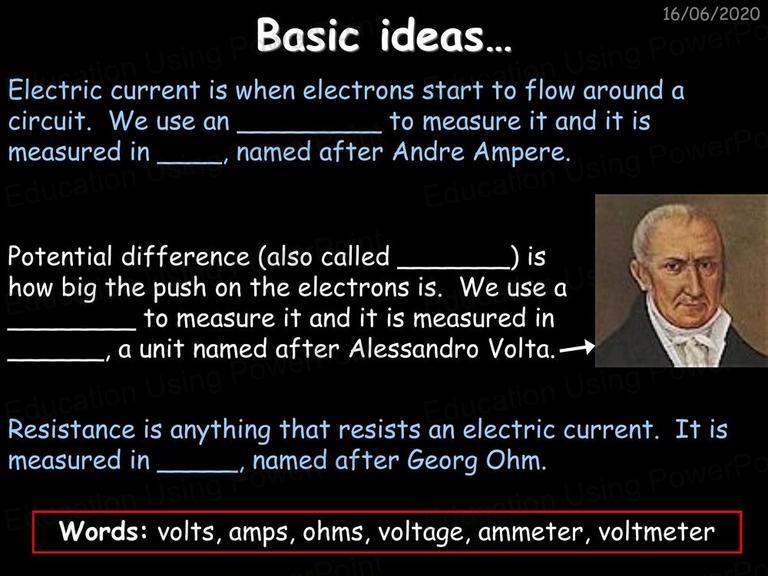

![](https://www.educationusingpowerpoint.co.uk/preview_images/2/small-12122-Slide-16.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/9/small-12089-Slide-17.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/4/small-12134-Slide-18.jpg)

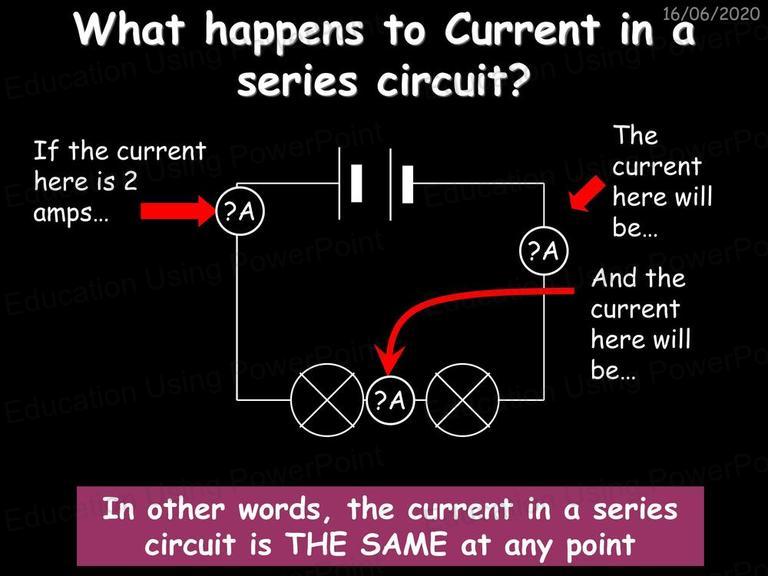

![](https://www.educationusingpowerpoint.co.uk/preview_images/4/small-12094-Slide-19.jpg)

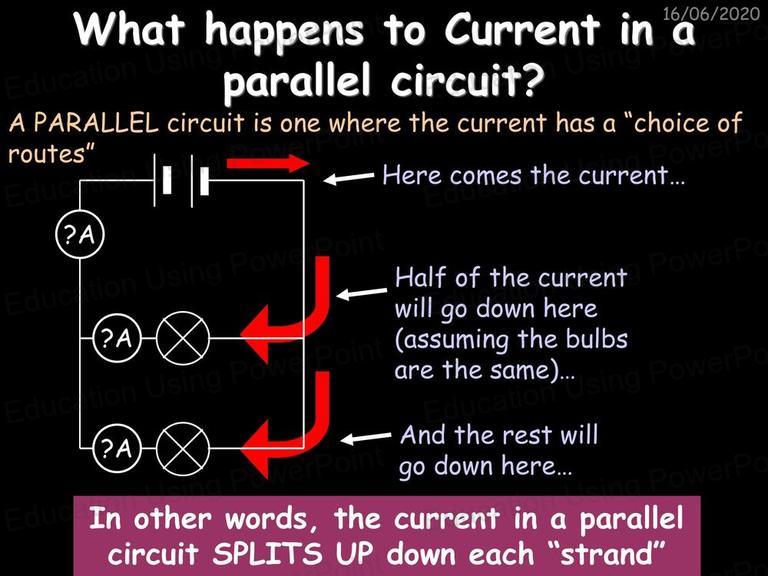

![](https://www.educationusingpowerpoint.co.uk/preview_images/3/small-12093-Slide-20.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/6/small-12116-Slide-21.jpg)

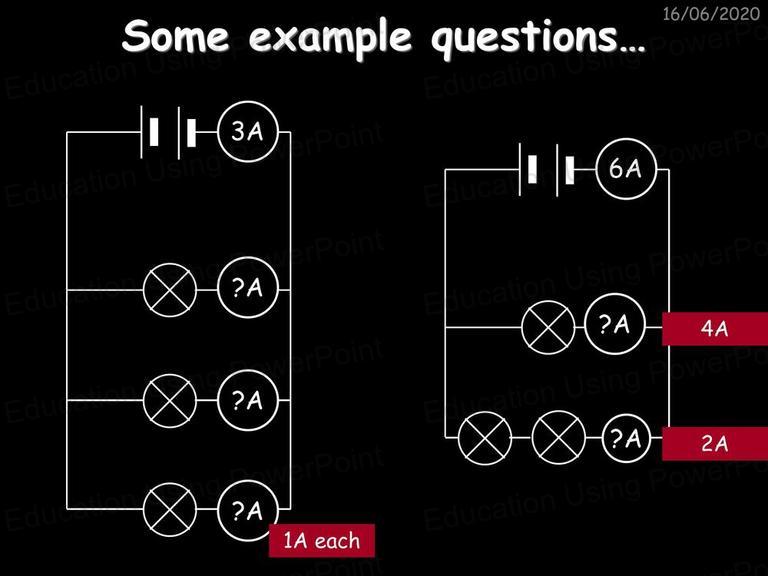

![](https://www.educationusingpowerpoint.co.uk/preview_images/7/small-12097-Slide-22.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/9/small-12129-Slide-23.jpg)

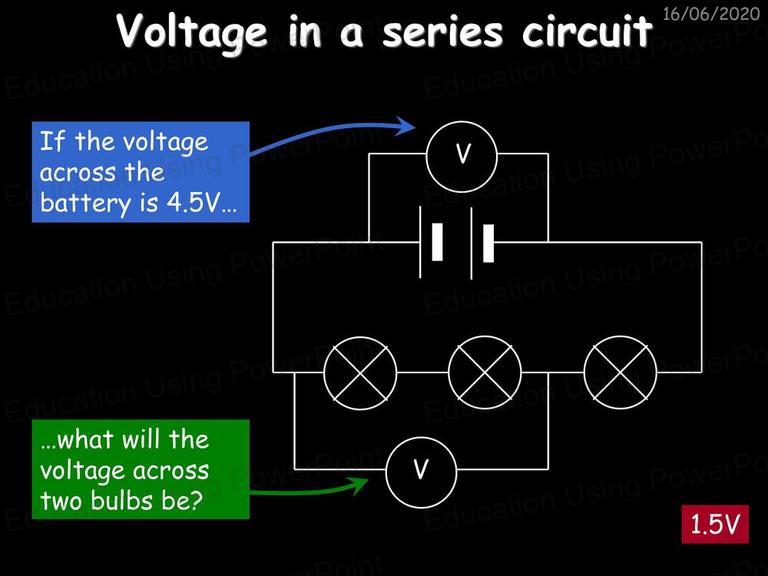

![](https://www.educationusingpowerpoint.co.uk/preview_images/0/small-12080-Slide-24.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/7/small-12107-Slide-25.jpg)

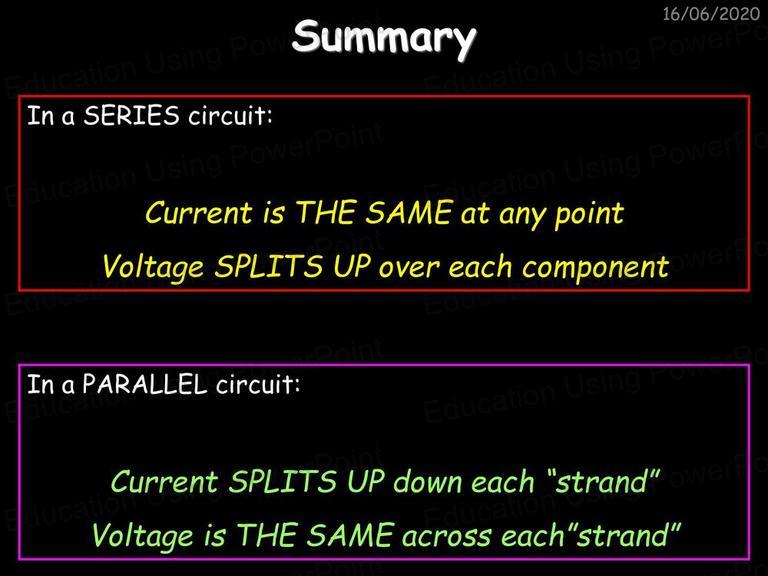

![](https://www.educationusingpowerpoint.co.uk/preview_images/4/small-12124-Slide-26.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/6/small-12096-Slide-27.jpg)

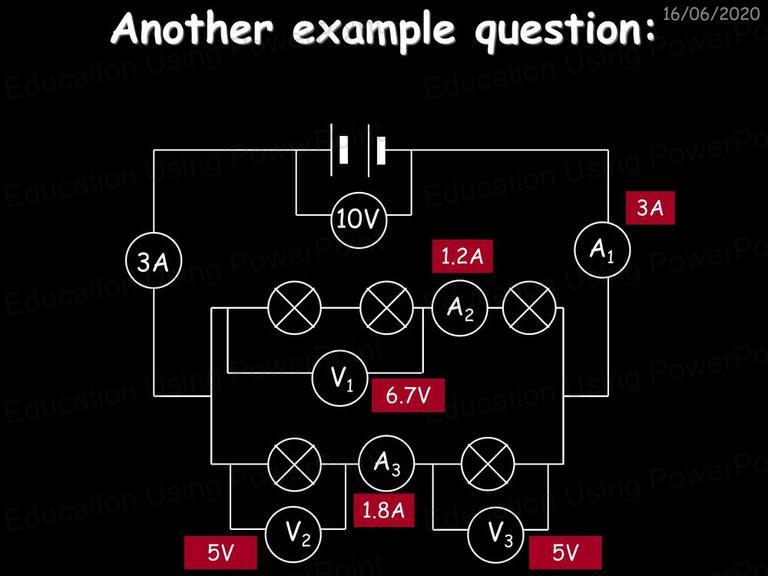

![](https://www.educationusingpowerpoint.co.uk/preview_images/0/small-12110-Slide-28.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/5/small-12085-Slide-29.jpg)

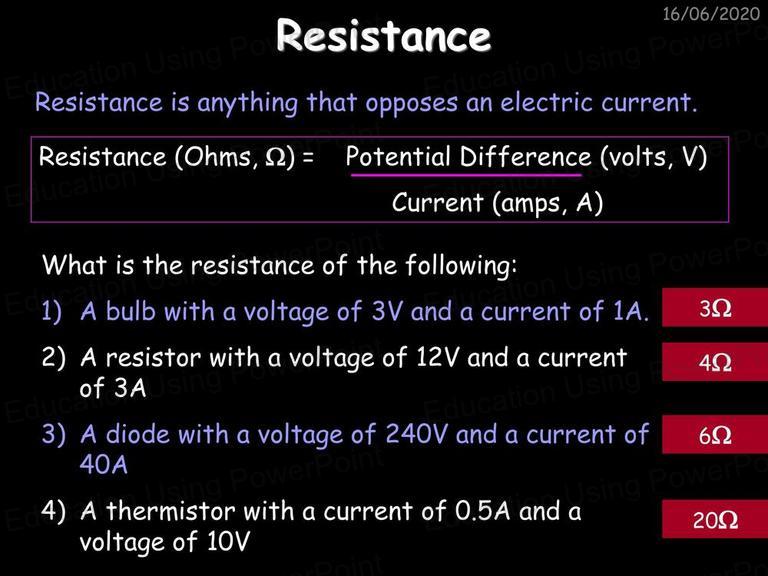

![](https://www.educationusingpowerpoint.co.uk/preview_images/8/small-12078-Slide-30.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/9/small-12099-Slide-31.jpg)

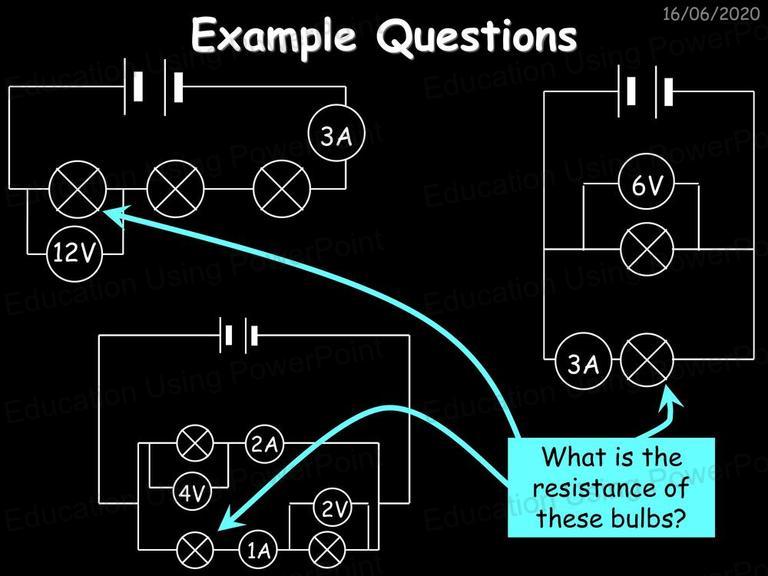

![](https://www.educationusingpowerpoint.co.uk/preview_images/4/small-12114-Slide-32.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/1/small-12101-Slide-33.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/7/small-12127-Slide-34.jpg)

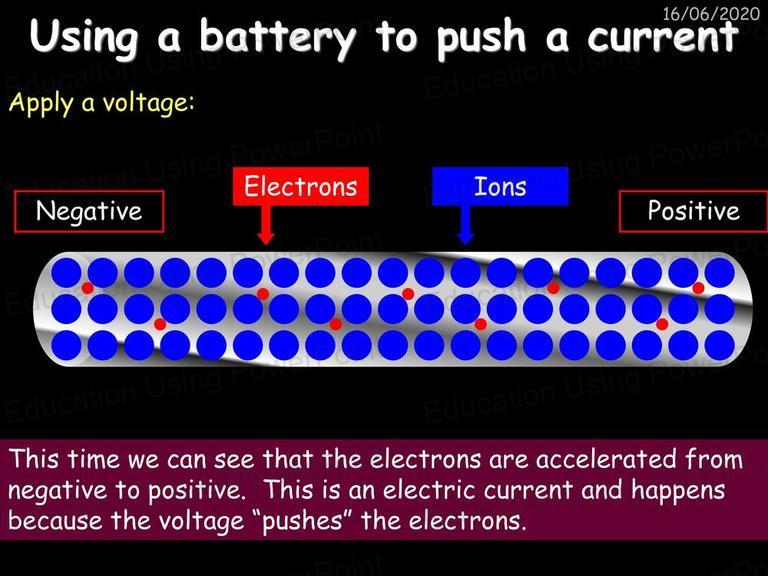

![](https://www.educationusingpowerpoint.co.uk/preview_images/1/small-12111-Slide-35.jpg)

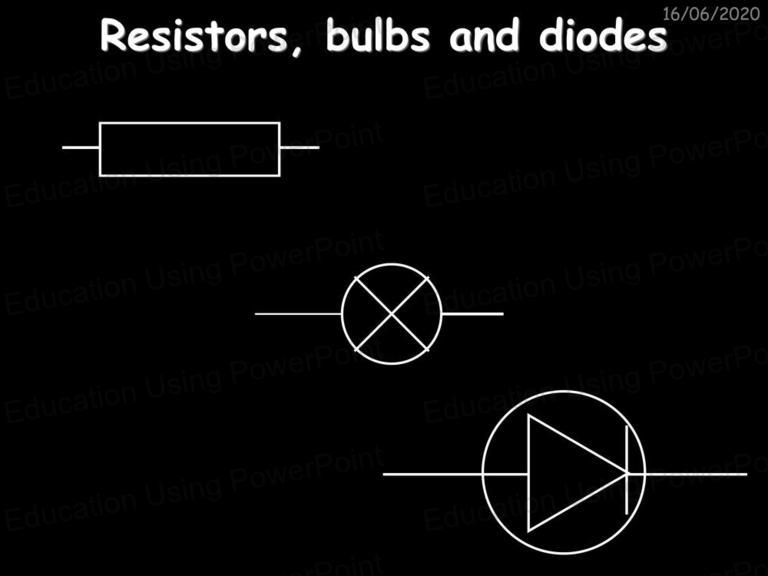

![](https://www.educationusingpowerpoint.co.uk/preview_images/0/small-12100-Slide-36.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/3/small-12133-Slide-37.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/3/small-12083-Slide-38.jpg)

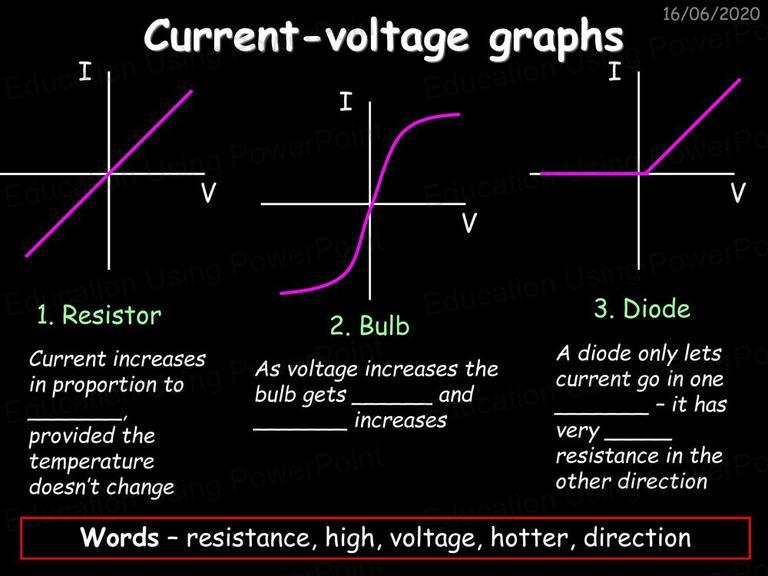

![](https://www.educationusingpowerpoint.co.uk/preview_images/5/small-12115-Slide-39.jpg)

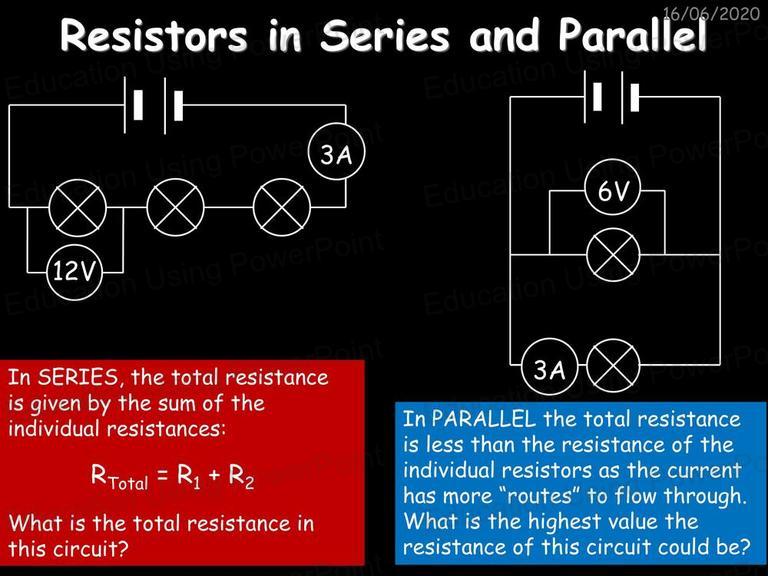

![](https://www.educationusingpowerpoint.co.uk/preview_images/8/small-12098-Slide-40.jpg)

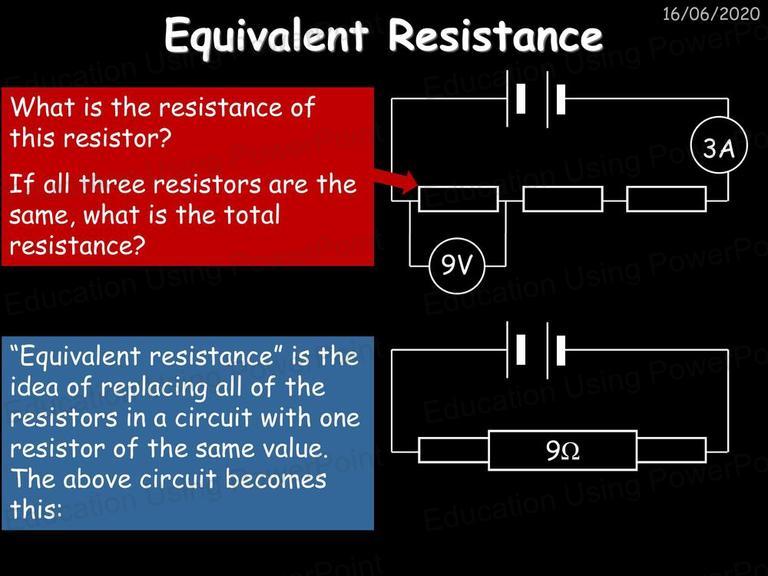

![](https://www.educationusingpowerpoint.co.uk/preview_images/0/small-12090-Slide-41.jpg)

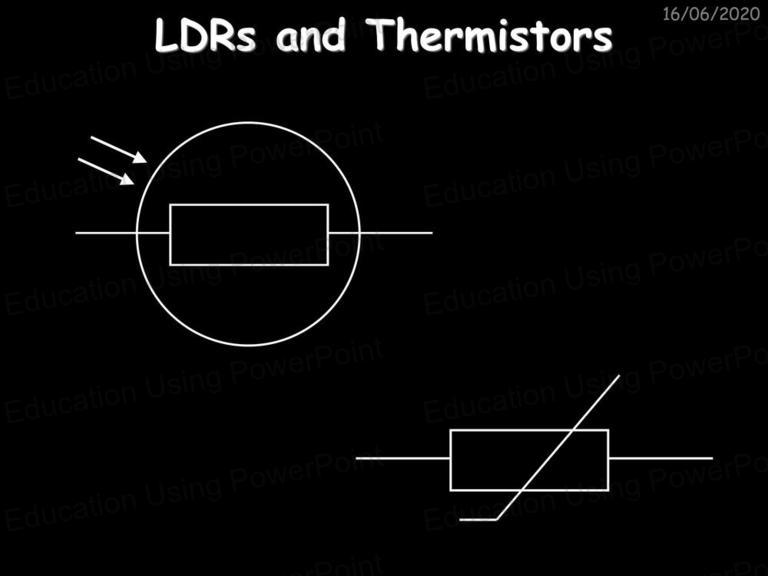

![](https://www.educationusingpowerpoint.co.uk/preview_images/7/small-12087-Slide-42.jpg)

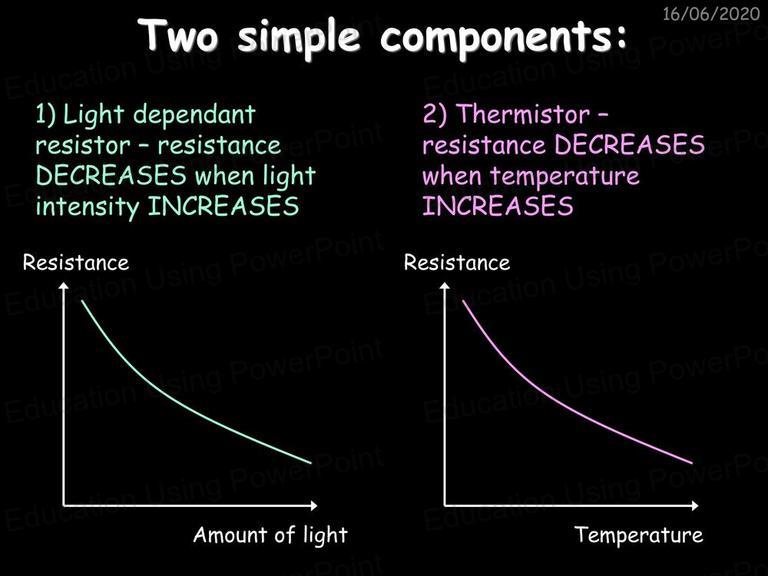

![](https://www.educationusingpowerpoint.co.uk/preview_images/0/small-12120-Slide-43.jpg)

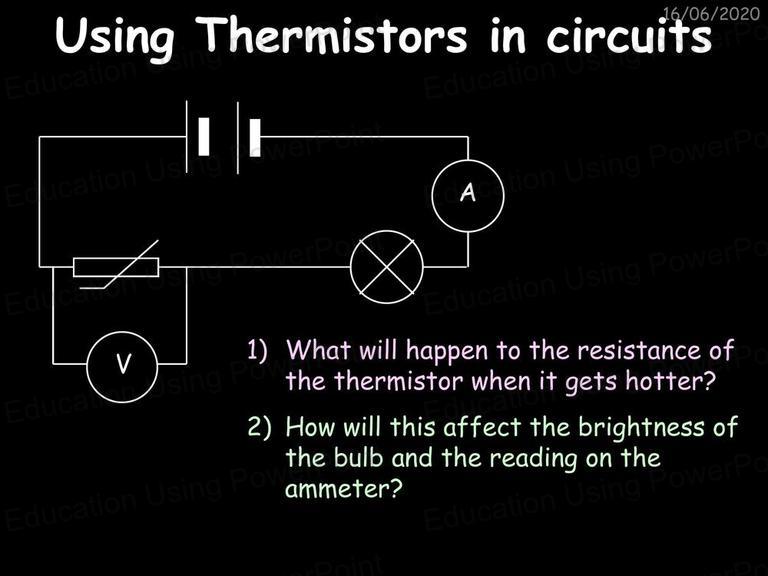

![](https://www.educationusingpowerpoint.co.uk/preview_images/2/small-12082-Slide-44.jpg)

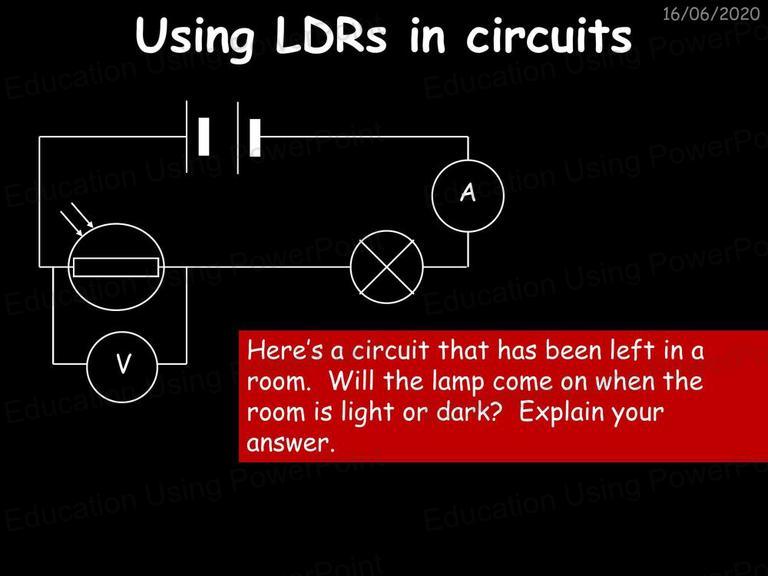

![](https://www.educationusingpowerpoint.co.uk/preview_images/1/small-12121-Slide-45.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/2/small-12112-Slide-46.jpg)

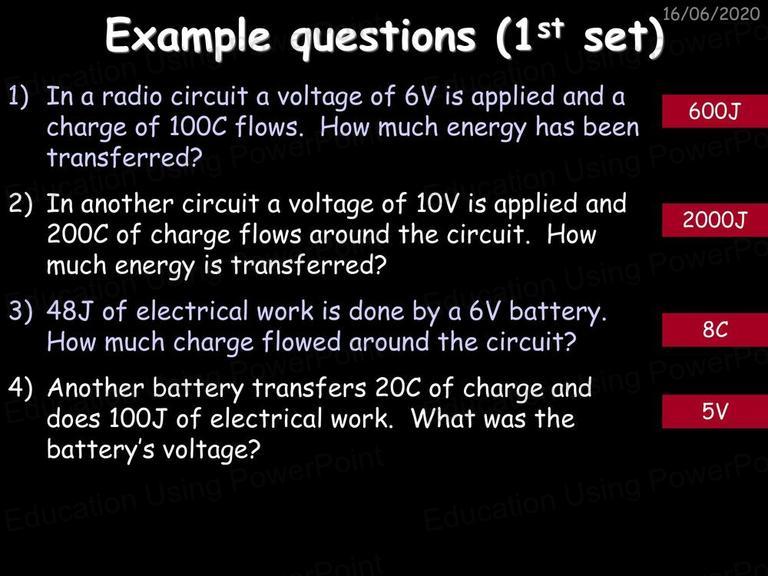

![](https://www.educationusingpowerpoint.co.uk/preview_images/5/small-12105-Slide-47.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/9/small-12109-Slide-48.jpg)

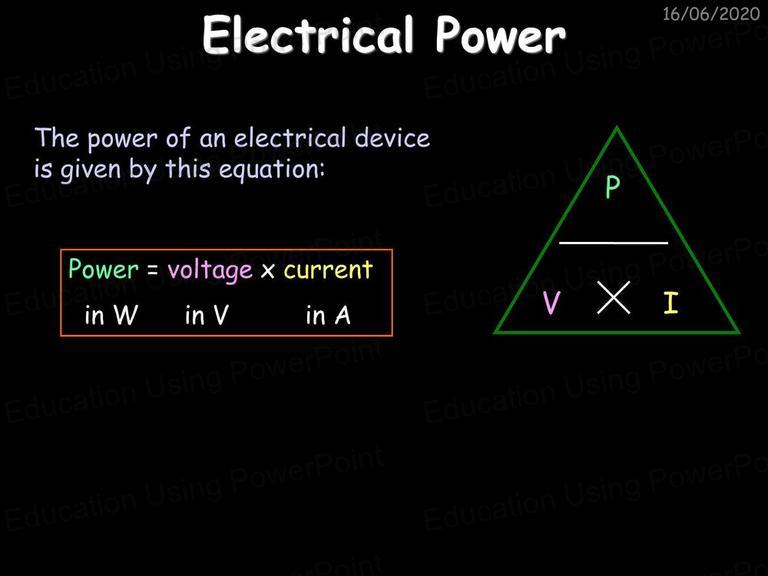

![](https://www.educationusingpowerpoint.co.uk/preview_images/4/small-12104-Slide-49.jpg)

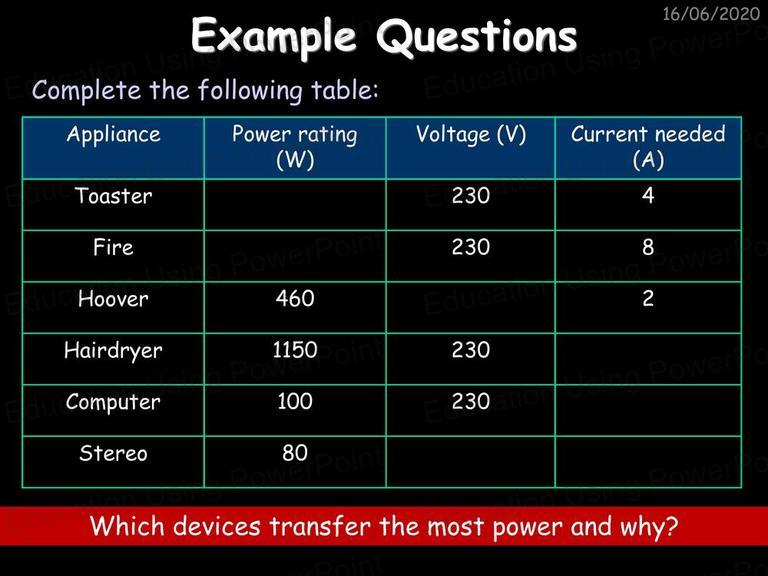

![](https://www.educationusingpowerpoint.co.uk/preview_images/0/small-12130-Slide-50.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/7/small-12117-Slide-51.jpg)

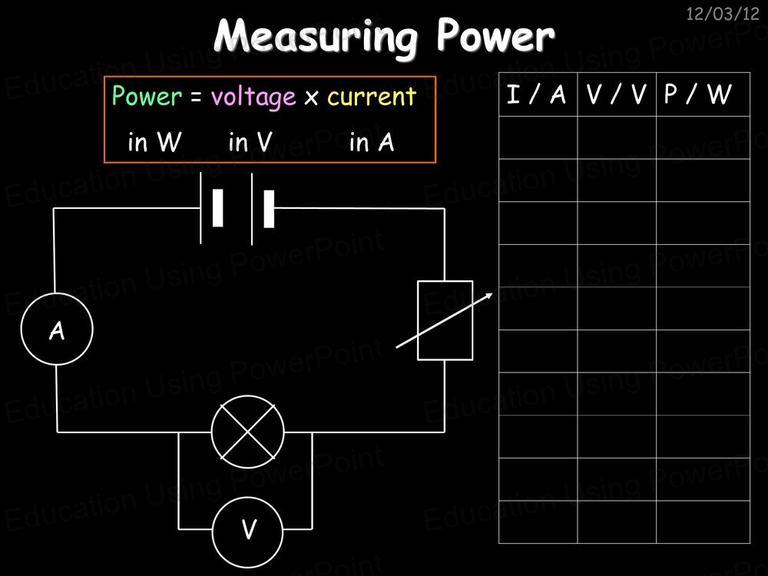

![](https://www.educationusingpowerpoint.co.uk/preview_images/2/small-12092-Slide-52.jpg)

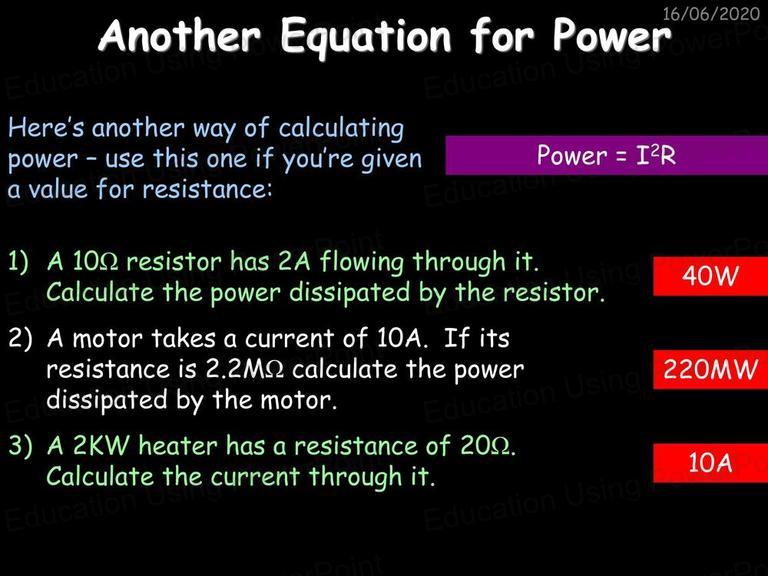

![](https://www.educationusingpowerpoint.co.uk/preview_images/3/small-12123-Slide-53.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/6/small-12086-Slide-54.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/9/small-12119-Slide-55.jpg)

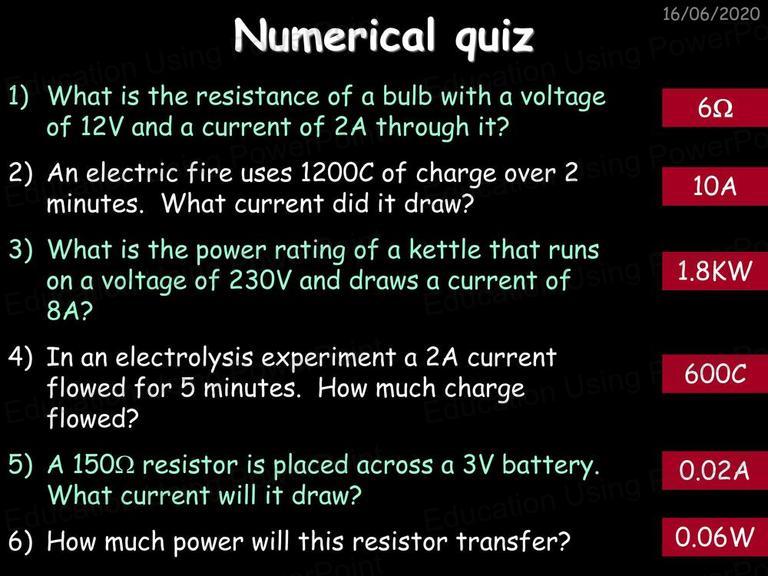

![](https://www.educationusingpowerpoint.co.uk/preview_images/6/small-12126-Slide-56.jpg)
![](https://www.educationusingpowerpoint.co.uk/preview_images/8/small-12118-Slide-57.jpg)

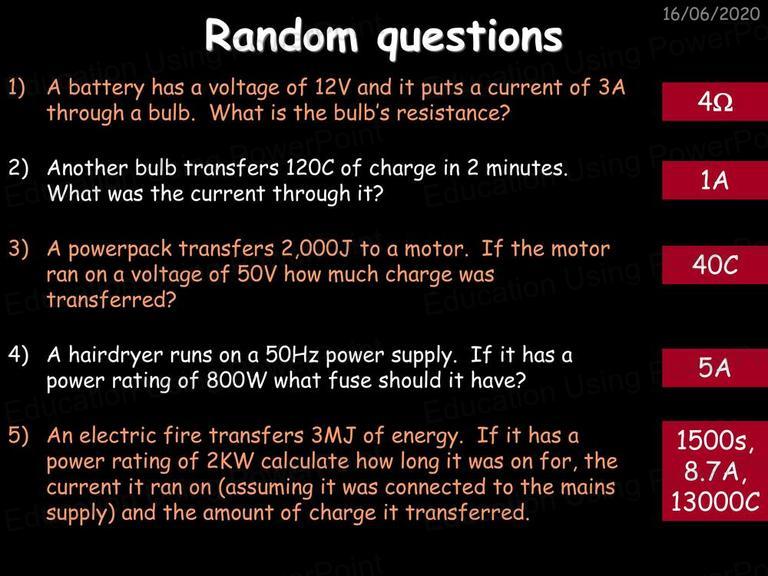

![](https://www.educationusingpowerpoint.co.uk/preview_images/1/small-12091-Slide-58.jpg)
