Slide Preview for Physics 6 - Magnetism and Electromagnetism

Below are the previews for the slide in Physics 6 - Magnetism and Electromagnetism. If you click on them, you can see larger versions. If you are on a computer you can press the left and right arrows to move. You can also click the arrows to the left and right of the screen.

Powerpoint Description:

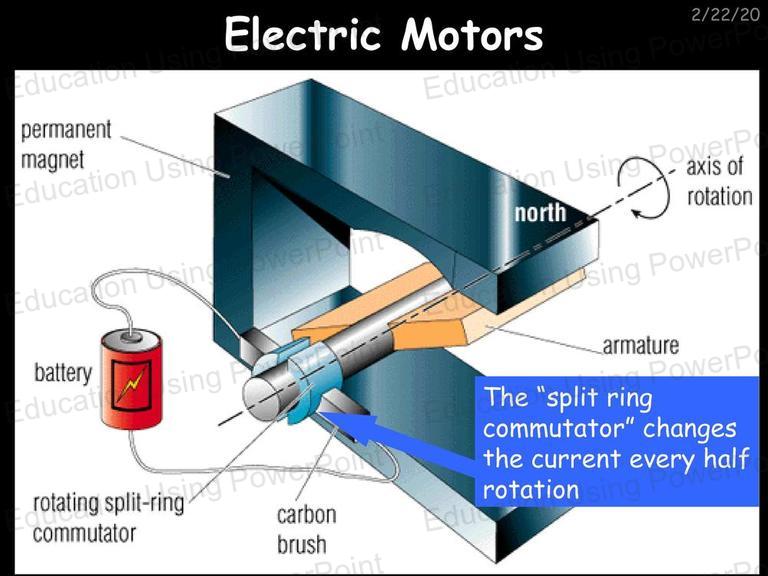

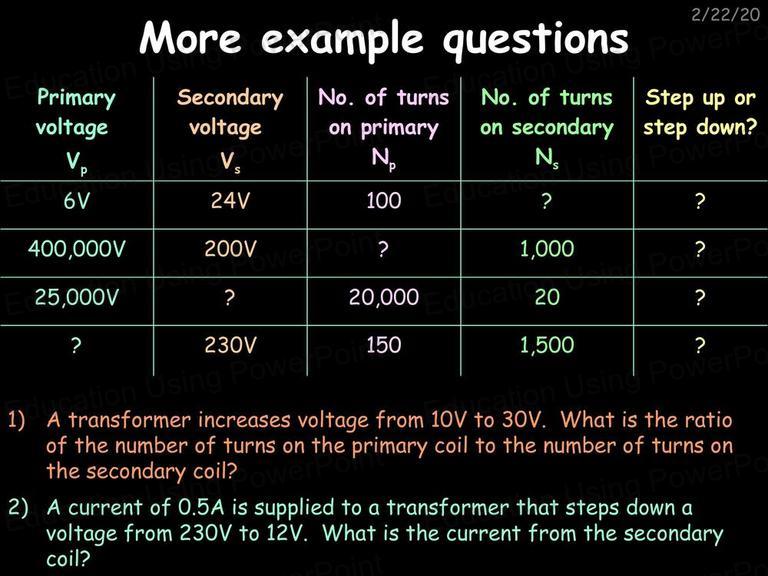

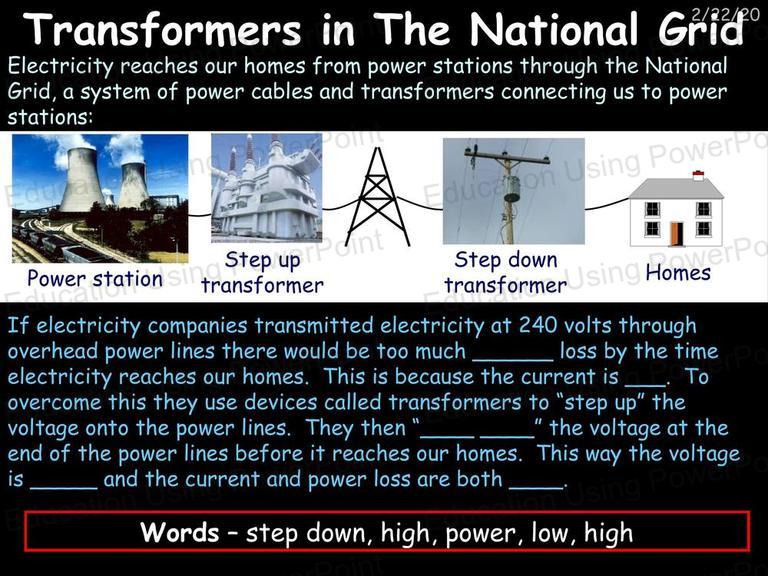

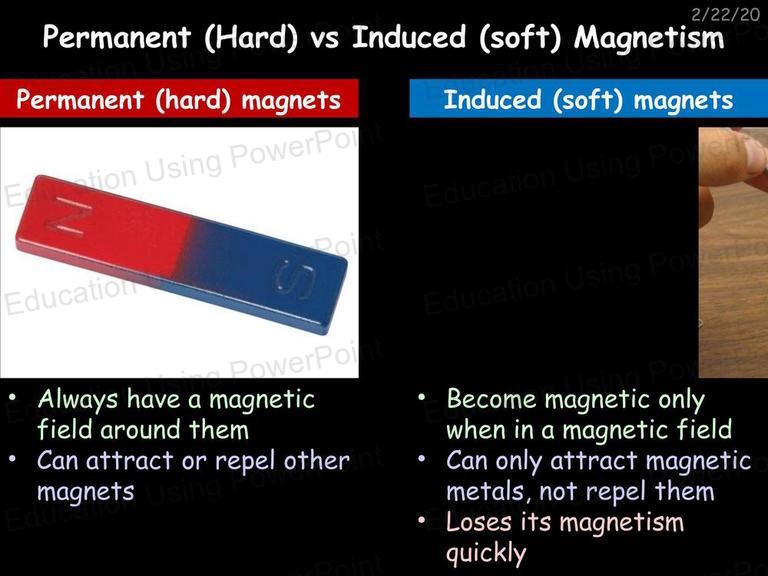

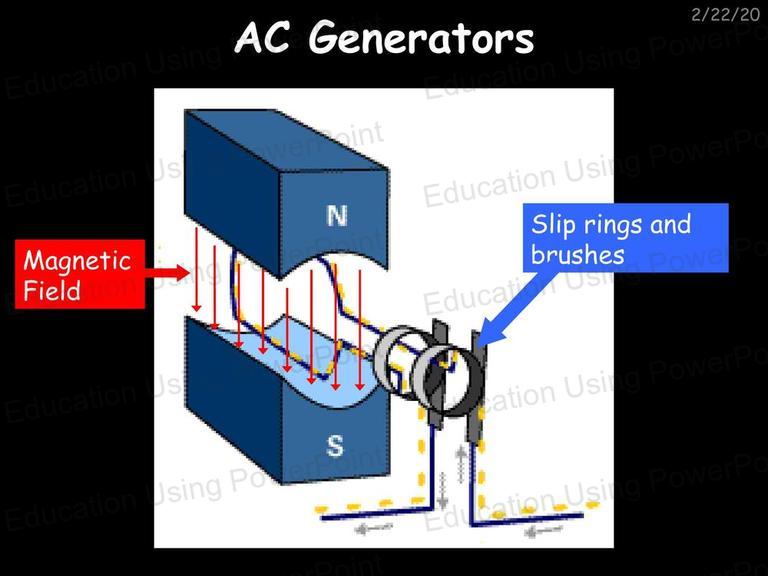

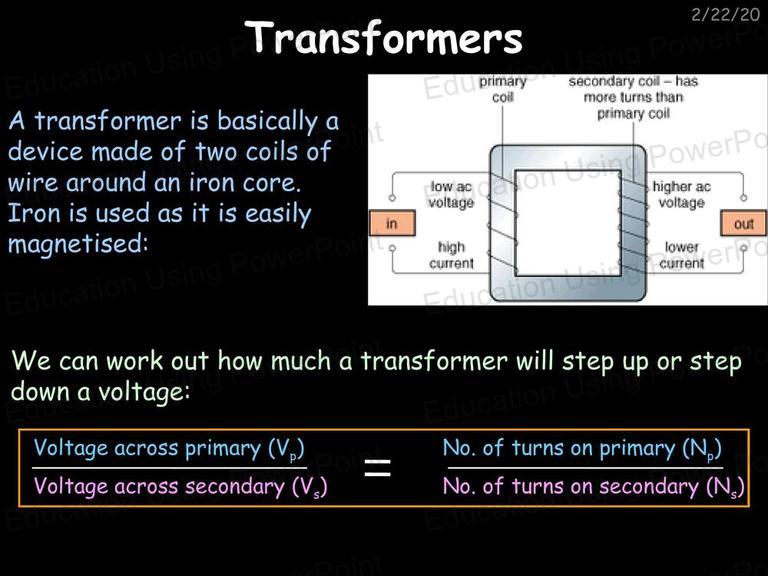

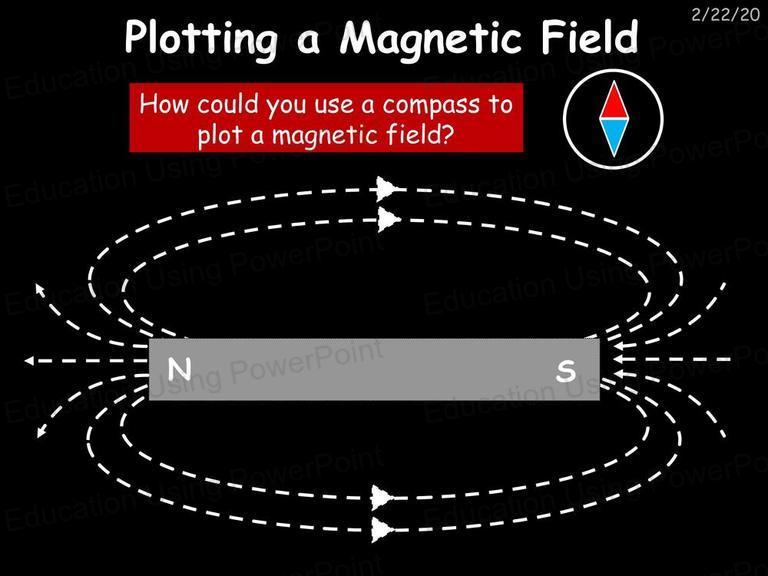

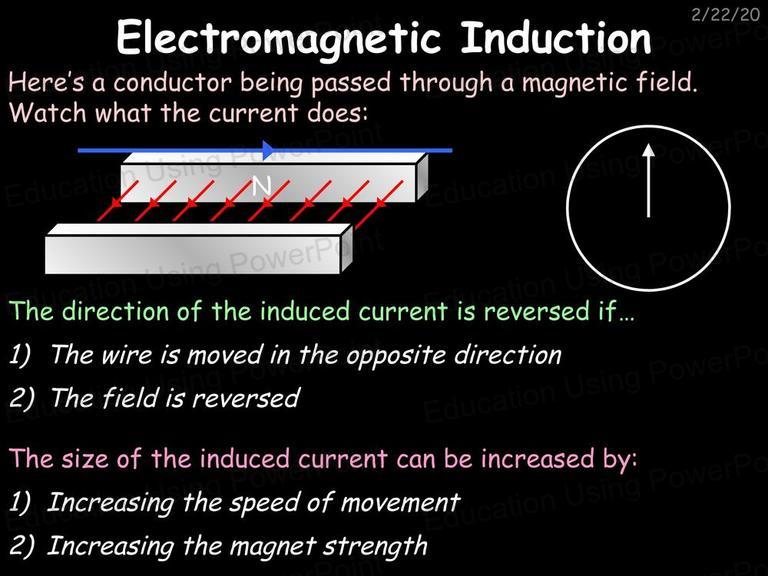

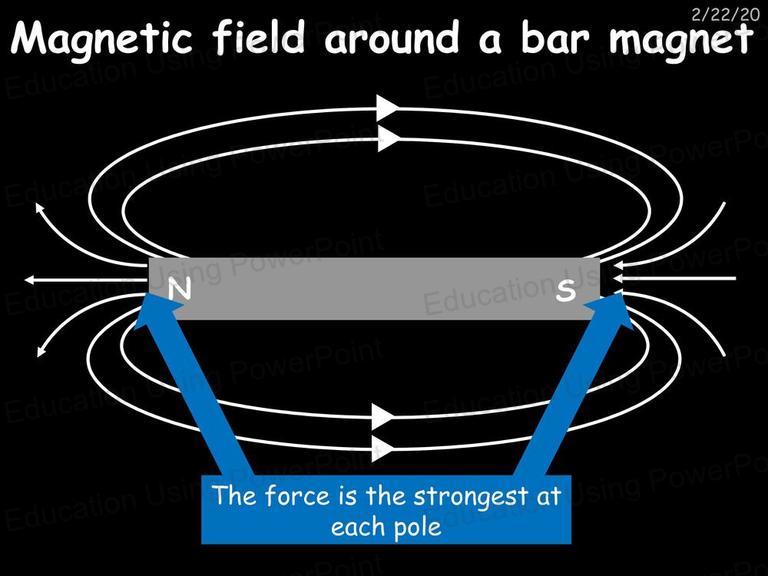

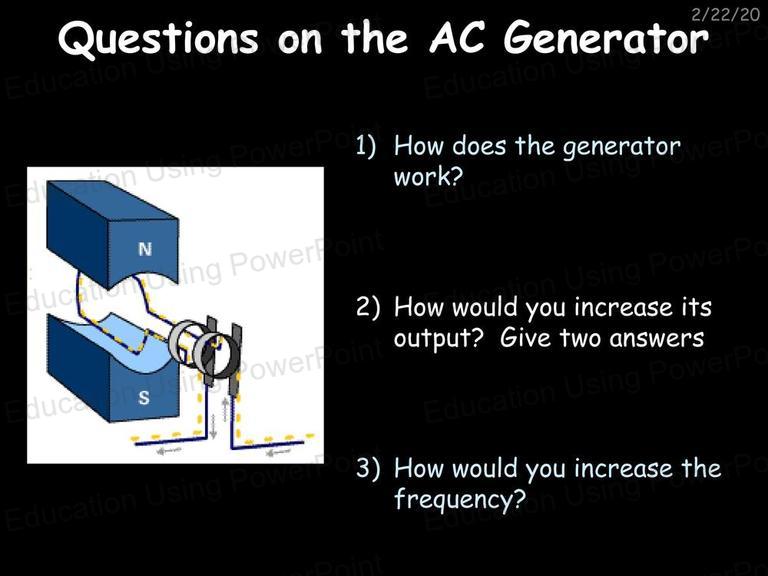

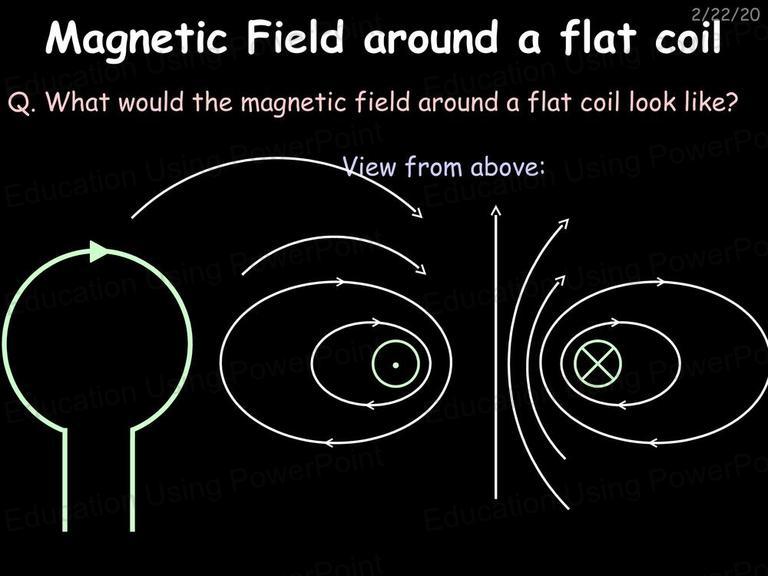

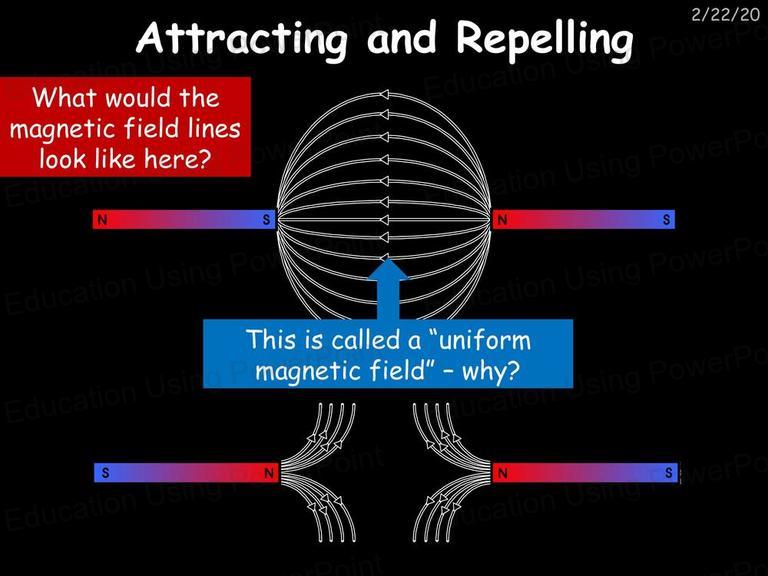

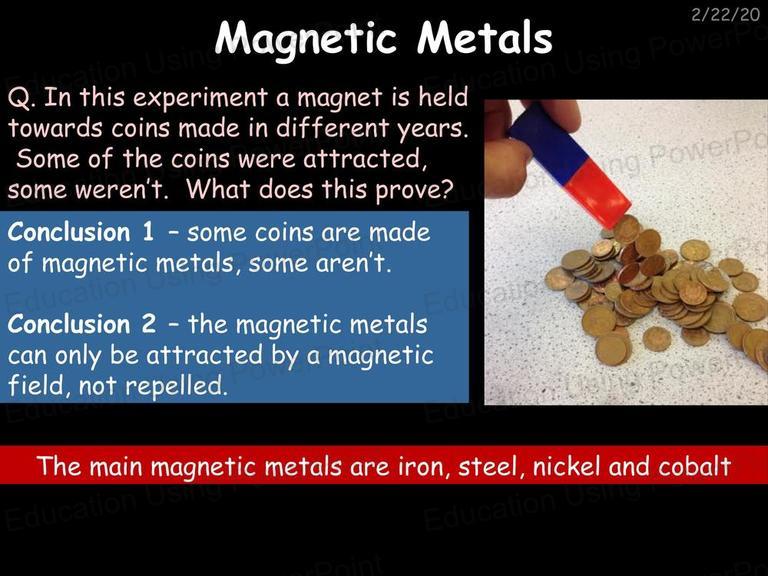

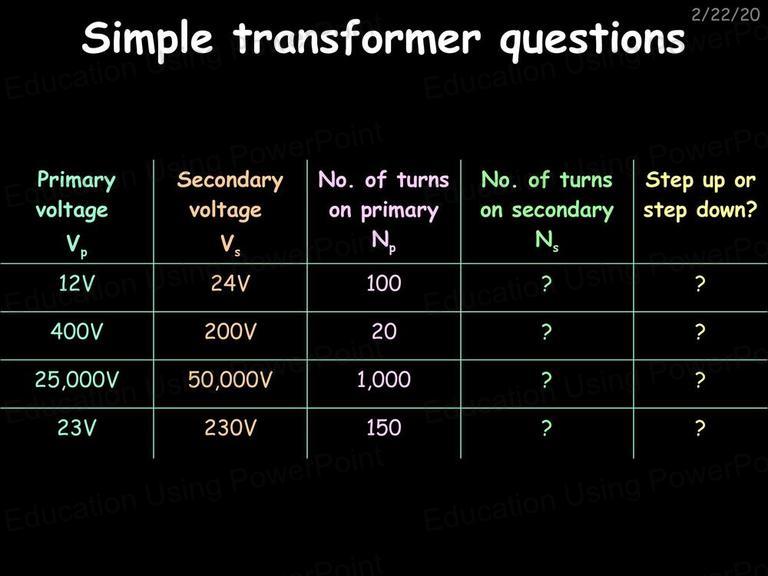

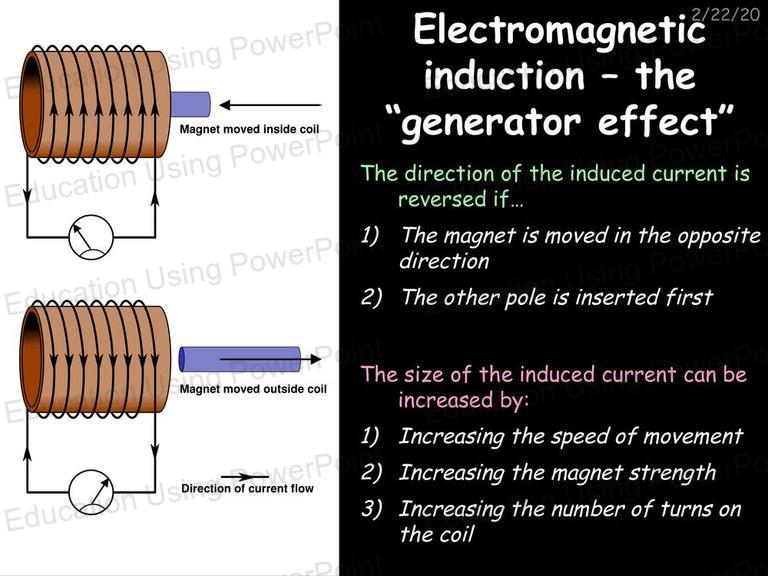

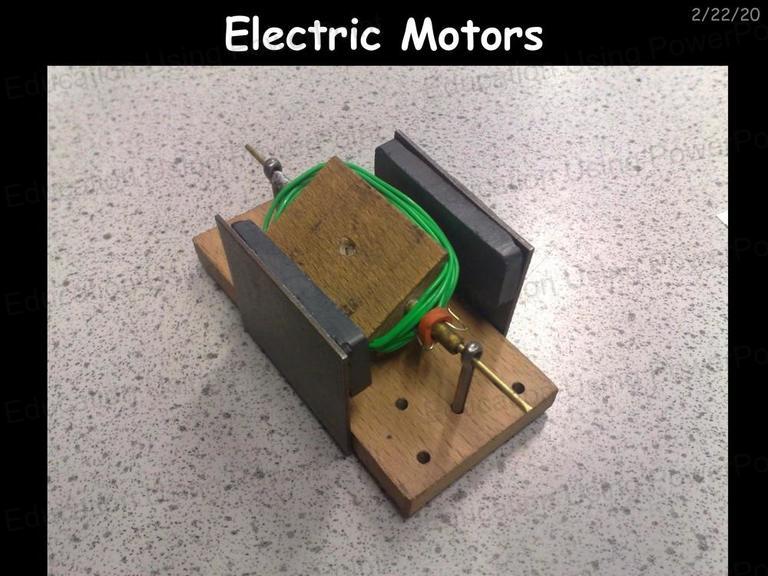

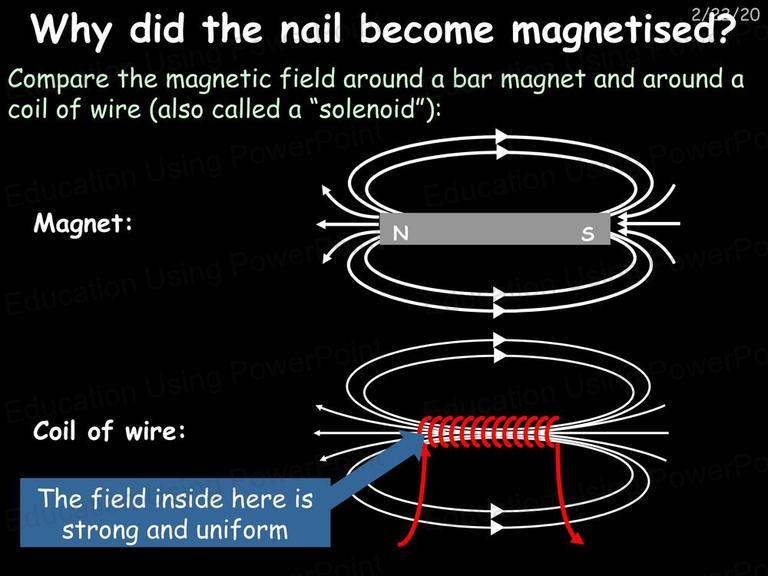

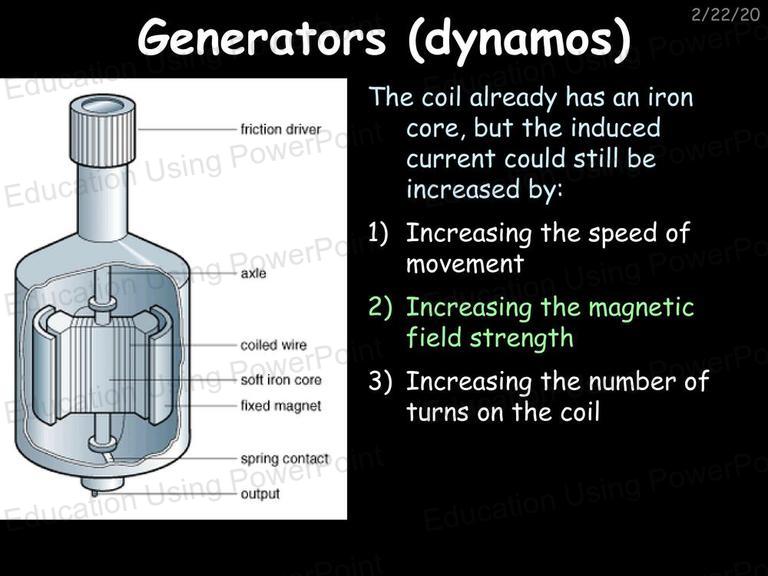

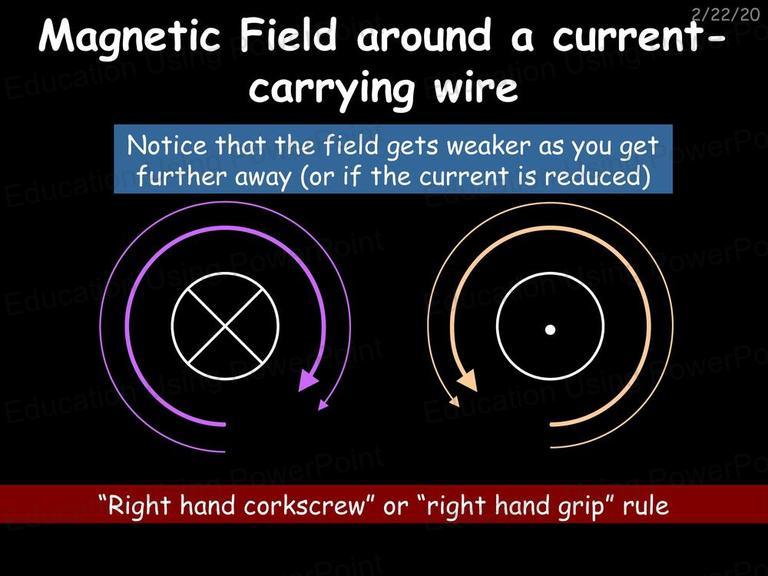

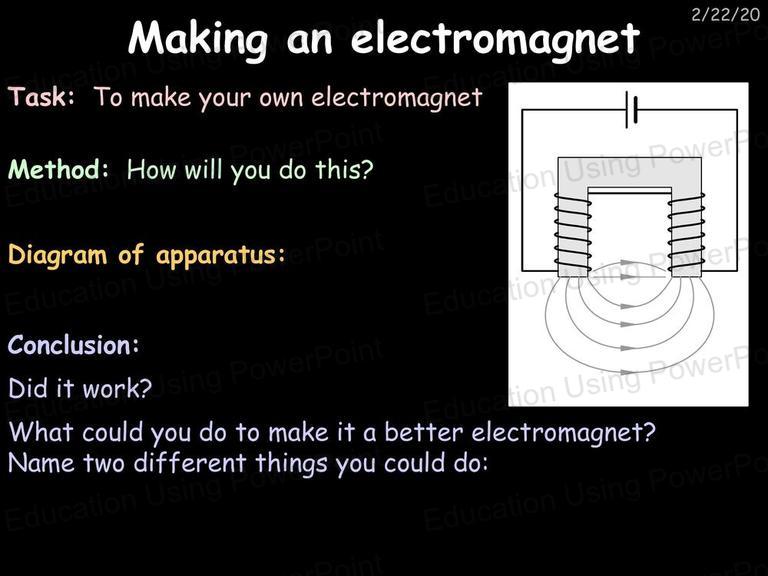

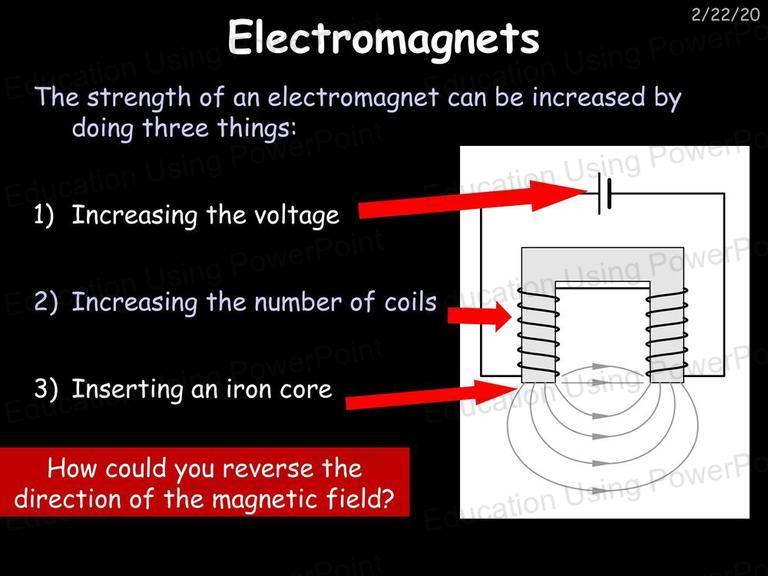

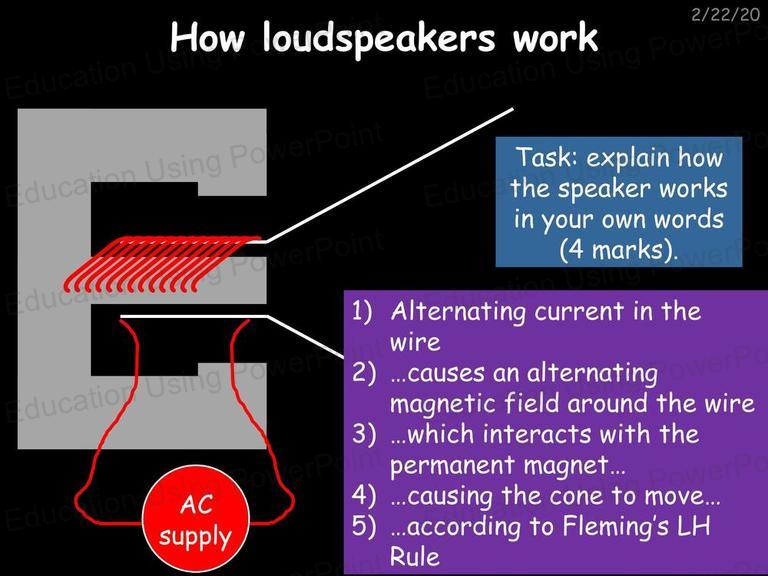

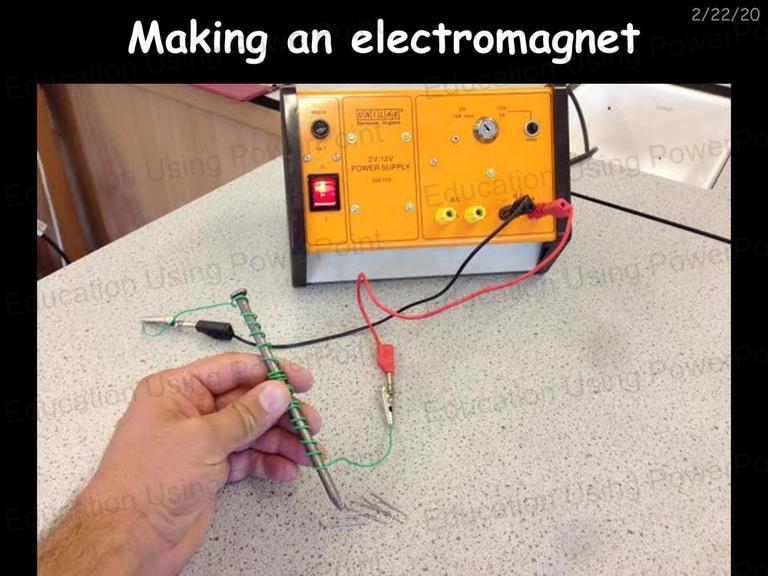

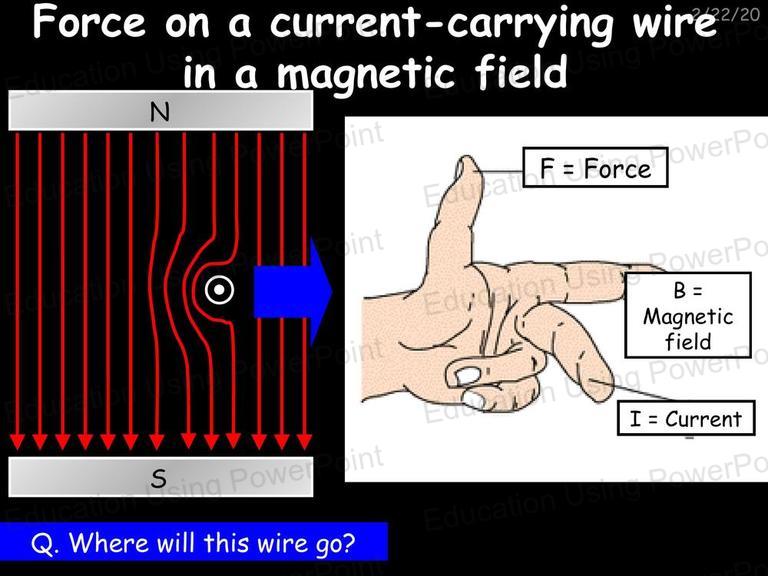

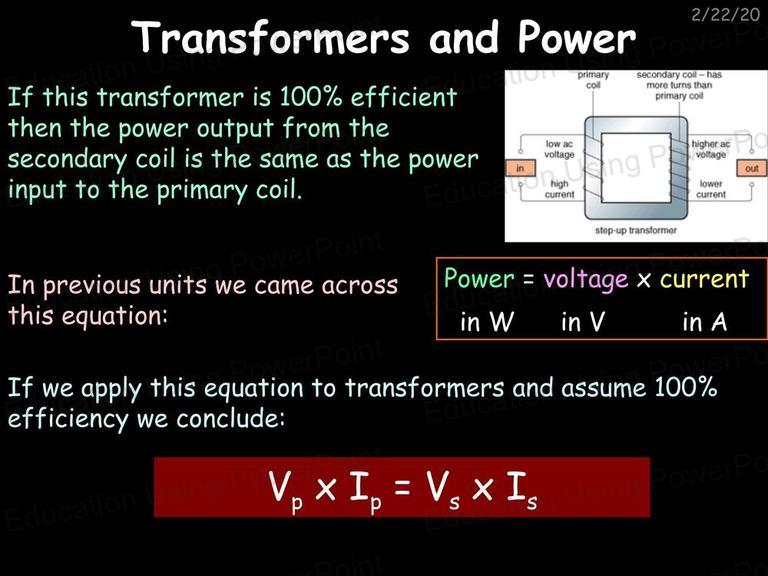

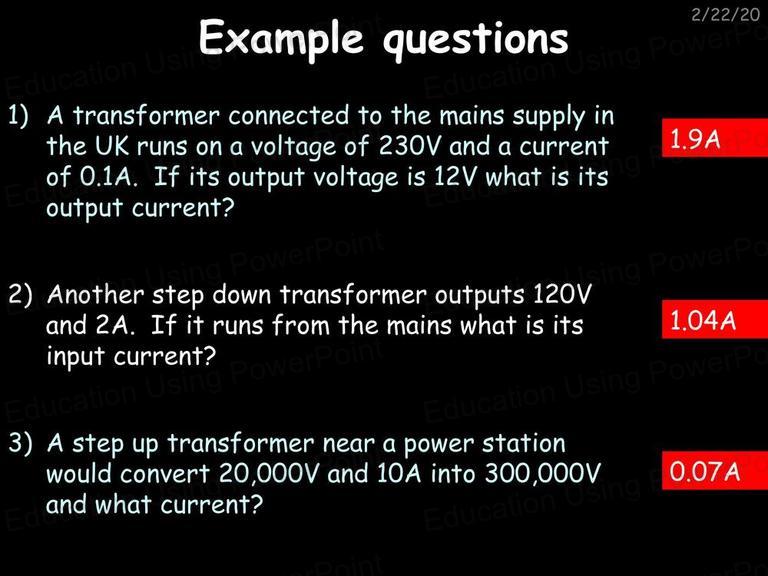

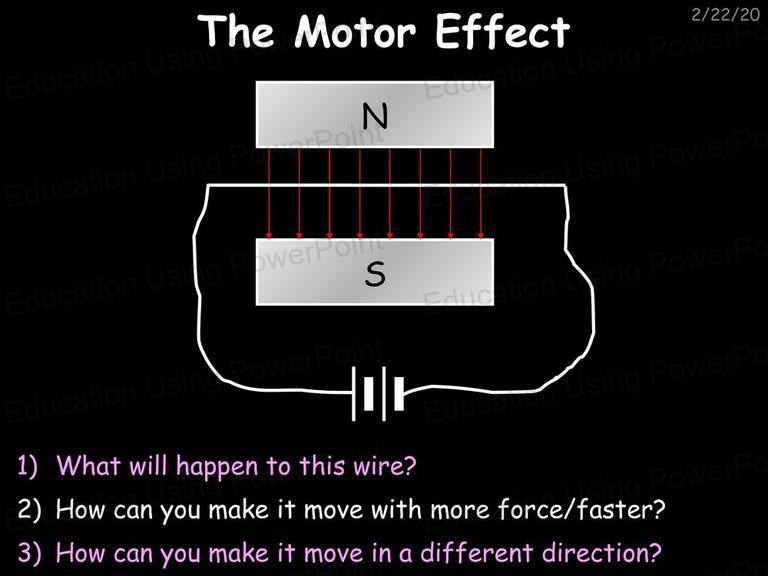

This slideshow covers topic 6 from the iGCSE EdExcel Physics course, including: magnetic fields and how to plot them, permanent vs induced magnetism, magnetic field around a current-carrying wire, how to make an electromagnet, magnetic field around a coil, the motor effect, Fleming's Left Hand Rule, electric motors and how to build them, how loudspeakers work, electromagnetic induction, the generator effect, AC generators and the roles of slip rings and brushes, dynamos, transformers, current and voltage in transformers, transformers in the National Grid.

Click here to register and to download this PowerPoint file

PowerPoint Slide Previews

Please note: The PowerPoints do NOT have any watermarks on them. This is for preview purposes only.
